CTP104 Survey Instrument Tripods Laser 160mm Auto Level Tripod Stand 4.95Kg

Place of Origin China
Brand Name Leica
Certification ISO
Model Number CTP104
Minimum Order Quantity 10 Pieces
Price 35USD~55USD
Packaging Details Box Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model CTP104 Material Aluminum
Color Yellow Type Flat Head
Closed Height 850mm Extension Height 1650mm
Head Diameter 160mm Lock Type Quick Clamp Lock
Net Weight 4.95Kg Used For Levels, Lasers And Construction Theodolites
High Light

CTP 104 Instrument Tripods


Laser 160mm Instrument Tripods


Laser 160mm auto level tripod stand

Leave a Message
Product Description

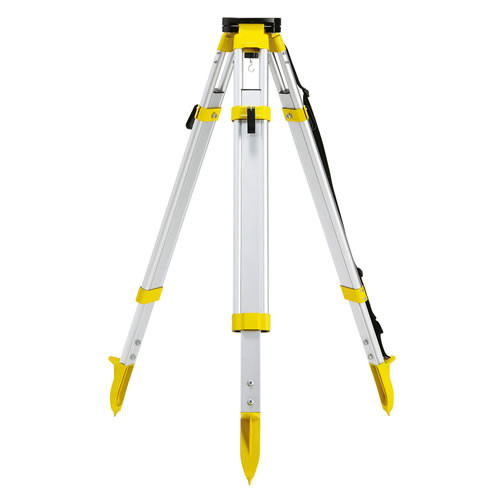

Leica CTP104 Medium-Duty Aluminum Tripod with Fast Clamps for Level, Laser and Construction Theodolites Instrument


Model: CTP104



Model CTP104
Color Yellow
Material Aluminum
Type Flat Head Tripods
Closed Height 850mm
Extension Height 1650mm
Head Diameter 160mm
Locking Type Twist and Quick Clamp
Net Weight 4.95Kg
Package 1pc/Carton



This medium-duty instrument tripod is perfect for everyday level and grading tasks. The legs offer the ability to extend up to 5.4 ft. The legs also offer the ability to collapse to 3.2 ft. With this flexibility you can setup comfort ability in any situation.



The Leica CTP104 Aluminium Tripod with fast clamps 767710 medium-duty instrument tripod is available with carrying straps and fast clamps for fast stable setups. With the triangular head and 5/8 x 11 fixing screw with hook for plumb bob, this tripod is ideal for levels, lasers and construction theodolites.


  • 5/8 x 11 fixing screw with hook for plumb bob
  • Shoulder and leg retaining strap
  • Switch between rubber feet and spikes
  • Chain for sliding and floor protection
  • Transportation length: 1.06m /3.48 ft
  • Weight: 4.95kg /10.9 lbs
  • Working height from 0.85m / 2.79 ft to 1.65m / 5.41 ft

What makes a twist lock tripod so unique?
One possibly unique feature is that the leg locks have a secondary locking system that prevents you from loosening the locks and completely removing a leg section. Many photographers new to twist-locks often have anxiety filled moments when they accidently disassemble the tripod while trying to extend it!


The Tripod Feet
The feet probably suffer the most wear and tear of all the tripod components. Some tripods offer replaceable feet. This way if anything does happen to the feet you can just replace them with out having to replace the whole tripod. There are also optional feet covers available for indoor use. When steel tips become more of a hazard than a help. The covers provide a good slip resistant base for the tripod. And, as most land surveyors know, the feet need to be strong for pushing into the ground to get a stable set-up.

Heavy or Lightweight
Another important factor to consider is the weight of your instrument. Each tripod will list a recommended maximum weight. Even if tripod will support the weight of the item if the surveying instrument is too heavy for the tripod it could cause it to warp over the time of the set up and cause the measurements to be inaccurate.

Tripod Stabilization
When working on slick surfaces like finished concrete or indoors, you'll want to buy a tripod stabilizer. Tripod stabilizers come in several styles. One style of tripod comes with a strap that is routed through a loop or bracket on each leg which is tightened and this keeps the three tripod legs from spreading apart. Another style of tripod stabilizer is one the user places on the ground or floor and its a triangle that has three holes in each vertex, where the tripod feet tips rest in, which keeps the tripod legs from spreading.
