Middle Duty Theodolite Instrument Tripods Total Station Tripod Twist Lock 4.3Kg

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ATT-F1
Minimum Order Quantity 10 Pieces
Price 26USD~28USD
Packaging Details Box Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model ATT-F1 Material Aluminum
Color Red Type Middle Duty
Closed Height 1010mm Extension Height 1710mm
Head Diameter 160mm Lock Type Twist Lock
Net Weight 4.3Kg Used For Middle Duty Instruments
High Light

Theodolite Instrument Tripods


Twist Lock 4.3Kg Instrument Tripods


Theodolite total station tripod

Leave a Message
Product Description

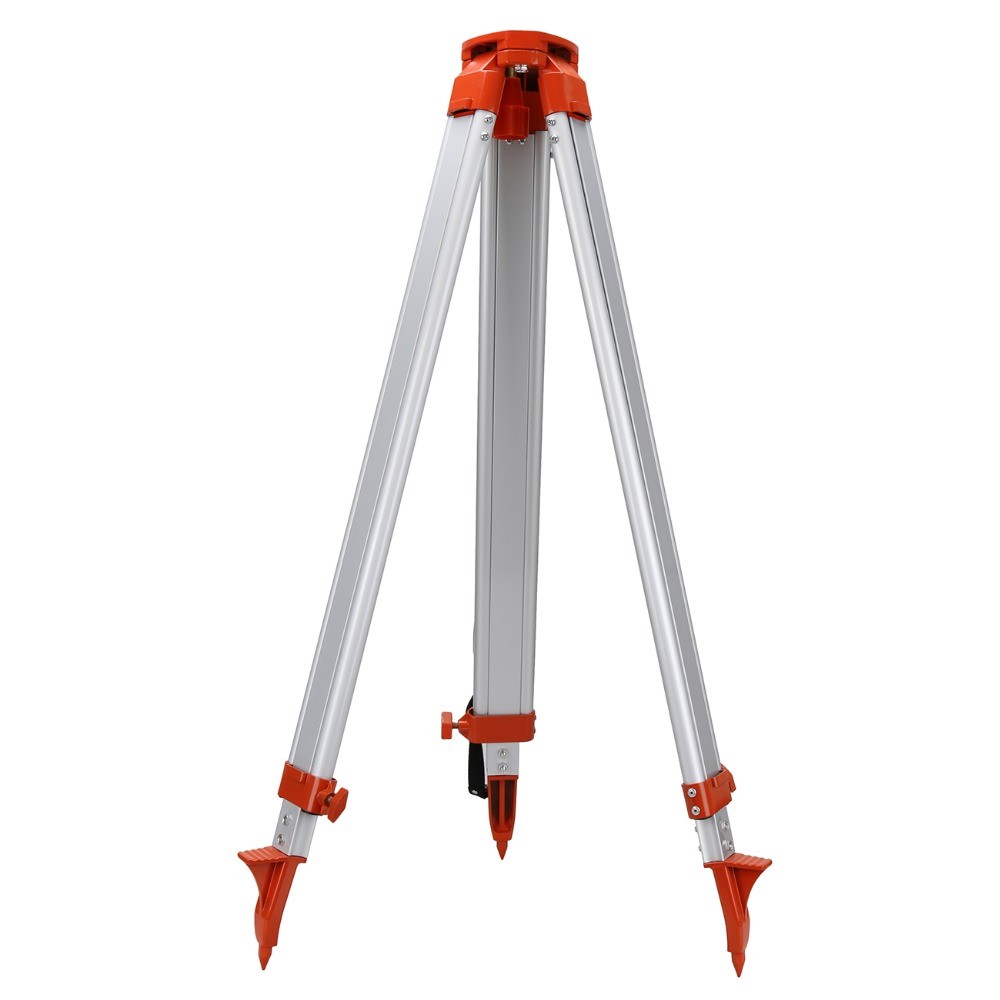

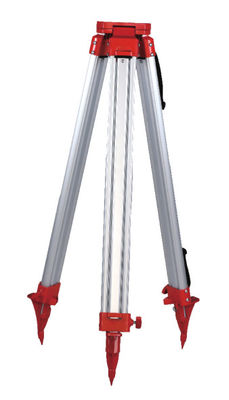

Middle Duty Aluminum Twist Lock Flat Head Theodolite Instrument Survyeing Tripods


Model: ATT-F1



Model ATT-F1
Color Red
Material Aluminum
Type Middle Duty Tripods
Closed Height 1010mm
Extension Height 1700mm
Head Diameter 160mm
Locking Type Twist
Net Weight 4.3Kg
Package 1pc/Carton


Aluminum Tripods Highlights:

1. Twist Lock

2. Stnadard 5/8"X 11 core screw

3. Flat Head

4. Aluminum body

5. Ideal for Theodolites and total stations.

6. 101cm~170cm

7. Shoulder Strap Included

8. Color is optional

9. Electrostatic powder-painted casting for a durable and long lasting finish


Aluminum Tripods

Aluminum tripods are usually inexpensive and lightweight, making it ideal for light use when set-ups are often changed. Aluminum is not affected by humidity. Being a metal, aluminum can slightly expand and contract due to temperature changes. Aluminum tripods provide the most ideal for setups that only last a short period of time, say an hour or less. Aluminum tripods are more economical, light-weight, and also long-lasting. They are ideal for leveling applications.


The Tripod Head
The tripod head is just that, it's the top of the tripod and is a surface for the surveying instrument to rest on and mount to. There are two head options available, dome or flat. This is mainly just a difference of preference. Both heads will do the same functions and work well with most surveying instruments. Circular dome are ideal for compensated instruments and lasers. A flat head surveying tripod is without a question the most popular tripod on the market today.



How to Buy a Land Surveying Tripod? Wood, Fiberglass or Aluminum?

When purchasing a Construction or Surveying Grade Tripod there are several different options to chose from, the material, the head, the clamps, and these are just standard options. The type of surveying tripod you need to buy will depend on the instrument it will support and the work conditions or environment. With this article, we have put together helpful information to assist in deciding what the best options are to meet your needs.
