GNSS Total Station Auto Level Tripod Survey Equipment 10Kg Dual Twist Clamp Lock

  • GNSS Total Station Auto Level Tripod Survey Equipment 10Kg Dual Twist Clamp Lock
  • GNSS Total Station Auto Level Tripod Survey Equipment 10Kg Dual Twist Clamp Lock
Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ATS-F3
Minimum Order Quantity 10 Pieces
Price 55USD~60USD
Packaging Details Box Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model ATS-F3 Material Aluminum
Color Black Type Flat Head Dual Lock
Closed Height 1040mm Extension Height 1780mm
Head Diameter 160mm Lock Type Twist And Quick Dual Lock
Net Weight 10Kg Used For Total Station Or Heavy Duty Instruments
High Light

10Kg auto level tripod

,

GNSS auto level tripod

,

GNSS tripod survey equipment
Leave a Message
Product Description

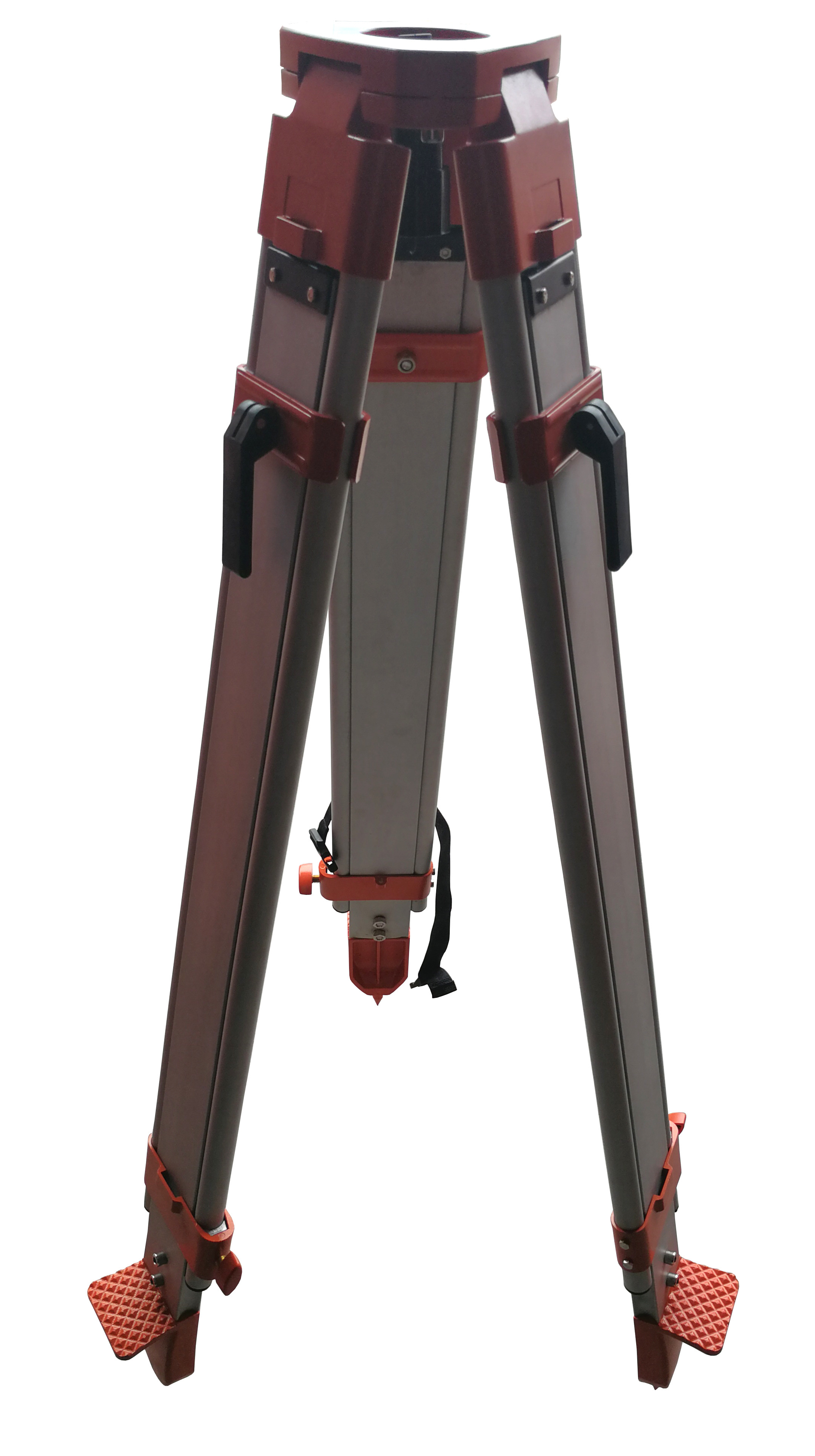

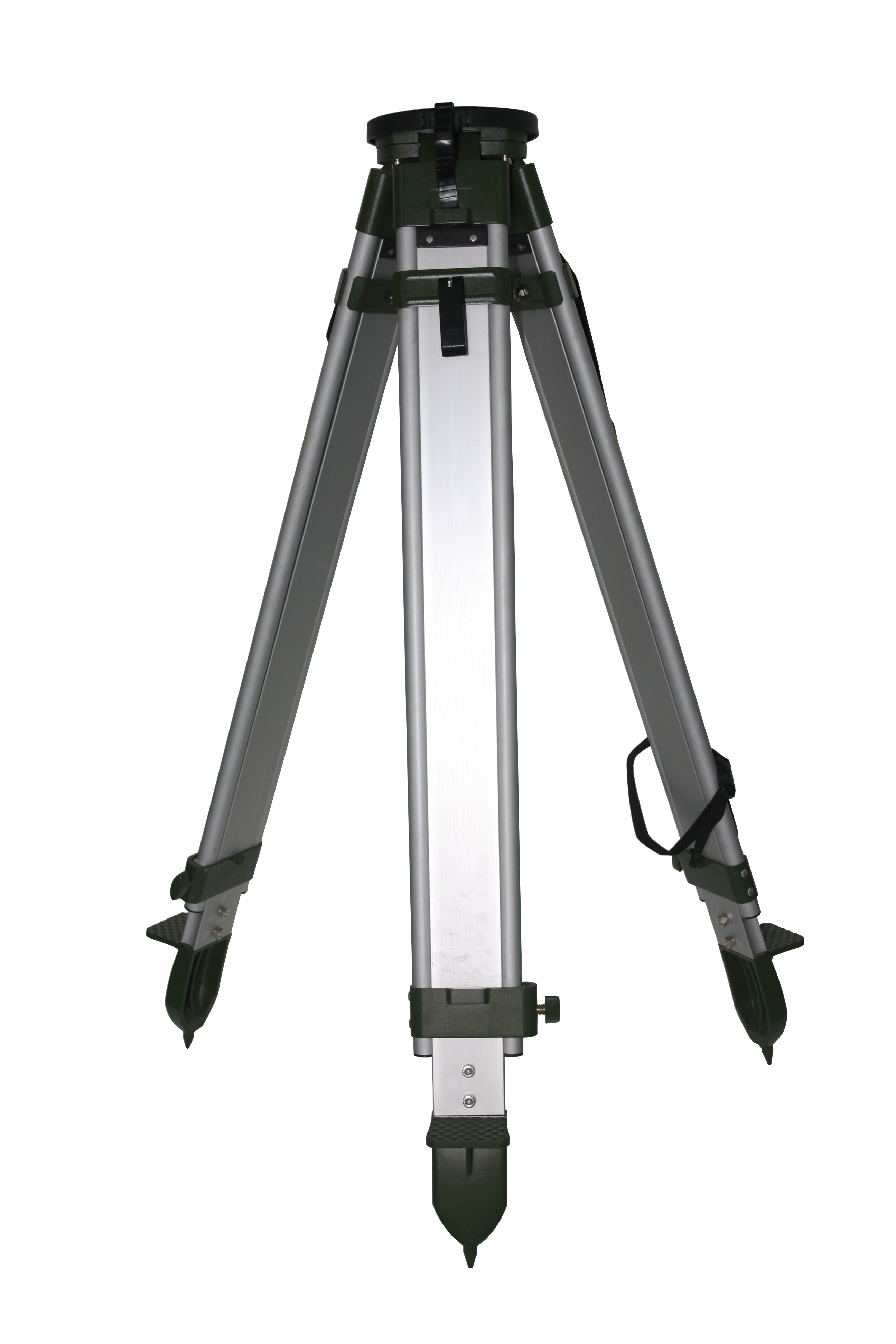

Heavy Duty 10Kg Total Station and GNSS Instruments Aluminum Tripods with Dual Twist Clamp Lock



Model: ATS-F3



Specifications:

Model ATS-F3
Color Black
Material Aluminum
Type Flat Head Tripods
Closed Height 1040mm
Extension Height 1780mm
Head Diameter 160mm
Locking Type Twist and Quick Clamp
Net Weight 10Kg
Package 1pc/Carton



ATS-F3 Tripods Highlights:

1. Twist and Quick Clamp Dual Lock

2. Standard 5/8"X 11 core screw

3. Flat Head

4. Aluminum body

5. Ideal for Theodolites and total stations.

6. 102cm~165cm

7. Shoulder Strap Included

8. Color is optional

9. Electrostatic powder-painted casting for a durable and long lasting finish



Features:

1. Ideal for Total Stations or GNSS receivers; heavy duty aluminum tripod
2. Made of heavy gauge aluminum. Durable, accurate and built to last
3. Electrostatic powder-painted casting for a durable and long lasting finish
4. Quick clamp-for simple and fast height adjustments; Double locking system is
optional
5. 5/8-11 thread size, flat-head or round-head with string hook for plumb bog-allowing
for an array of applications

6. Shoulder strap included
7. Color is optional


Tripod Stabilization
When working on slick surfaces like finished concrete or indoors, you'll want to buy a tripod stabilizer. Tripod stabilizers come in several styles. One style of tripod comes with a strap that is routed through a loop or bracket on each leg which is tightened and this keeps the three tripod legs from spreading apart. Another style of tripod stabilizer is one the user places on the ground or floor and its a triangle that has three holes in each vertex, where the tripod feet tips rest in, which keeps the tripod legs from spreading.

The Tripod Feet
The feet probably suffer the most wear and tear of all the tripod components. Some tripods offer replaceable feet. This way if anything does happen to the feet you can just replace them with out having to replace the whole tripod. There are also optional feet covers available for indoor use. When steel tips become more of a hazard than a help. The covers provide a good slip resistant base for the tripod. And, as most land surveyors know, the feet need to be strong for pushing into the ground to get a stable set-up.

GNSS Total Station Auto Level Tripod Survey Equipment 10Kg Dual Twist Clamp Lock 0
