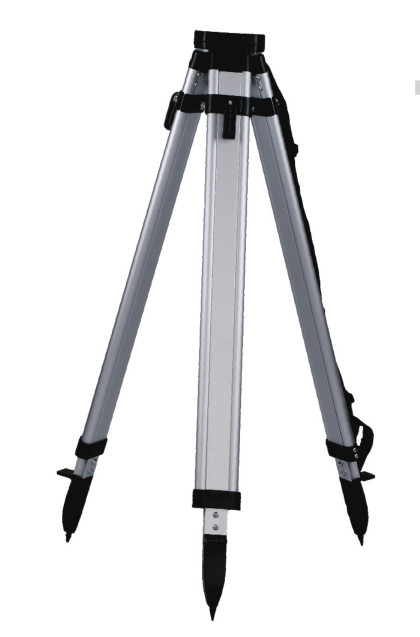

Lightweight Dual Lock Theodolite Tripod Stand Auto 3.5Kg Total Station Tripod Stand

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ATL-F3
Minimum Order Quantity 10 Pieces
Price 18USD~20USD
Packaging Details Box Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model ATL-F Material Aluminum
Color Orange R Black Type Light Duty
Closed Height 980mm Extension Height 1600mm
Head Diameter 120mm Lock Type Twist And Quick Clamp
Net Weight 3.5Kg Used For Rotary Laser Level
High Light

Dual Lock theodolite tripod stand

,

Auto theodolite tripod stand

,

3.5Kg total station tripod stand

Leave a Message
Product Description

Dual Lock Light Weight Aluminum Tripods for Auto Level Prisms and Rotating Lasers of Light Weight Instrument



Model: ATL-F3



Specifications:

Model ATL-F3
Color Black or Orange
Material Aluminum
Type Light Duty Tripods
Closed Height 980mm
Extension Height 1600mm
Head Diameter 120mm
Locking Type Twist and Quick Clamp
Net Weight 3.5Kg
Package 1pc/Carton



Features:

1. Twist and Quick Clamp Dual Lock

2. Stnadard 5/8"X 11 core screw

3. Flat Head

4. Aluminum body

5. Ideal for auto level, transits, construction lasers

6. 98cm~160cm

7. Shoulder Strap Included

8. Color is optional

9. Electrostatic powder-painted casting for a durable and long lasting finish



What makes a twist lock tripod so unique?
One possibly unique feature is that the leg locks have a secondary locking system that prevents you from loosening the locks and completely removing a leg section. Many photographers new to twist-locks often have anxiety filled moments when they accidently disassemble the tripod while trying to extend it!



How to Buy a Land Surveying Tripod? Wood, Fiberglass or Aluminum?

When purchasing a Construction or Surveying Grade Tripod there are several different options to chose from, the material, the head, the clamps, and these are just standard options. The type of surveying tripod you need to buy will depend on the instrument it will support and the work conditions or environment. With this article, we have put together helpful information to assist in deciding what the best options are to meet your needs.

Remember, the most important option on a land surveying grade tripod is the thread size. This will determine if the tripod is compatible with your instrument or not. Most surveying instruments and tripods have a 5/8 X 11 thread which is standardized throughout the land surveying equipment industry.



Aluminum Tripods

Aluminum tripods are usually inexpensive and lightweight, making it ideal for light use when set-ups are often changed. Aluminum is not affected by humidity. Being a metal, aluminum can slightly expand and contract due to temperature changes. Aluminum tripods provide the most ideal for setups that only last a short period of time, say an hour or less. Aluminum tripods are more economical, light-weight, and also long-lasting. They are ideal for leveling applications.



The Tripod Head
The tripod head is just that, it's the top of the tripod and is a surface for the surveying instrument to rest on and mount to. There are two head options available, dome or flat. This is mainly just a difference of preference. Both heads will do the same functions and work well with most surveying instruments. Circular dome are ideal for compensated instruments and lasers. A flat head surveying tripod is without a question the most popular tripod on the market today.
