Twist Lock Prism Pole Bipod 5.1m Total Station Prism Pole

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number PL5
Minimum Order Quantity 10 Pieces
Price 25USD~30USD
Packaging Details Box and Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 1000 pieces per month
Product Details
Model PL5 Color Yellow
Material Aluminum Section 4
Type Twist Lock Contraction Length 1680mm
Extension Length 5100mm Net Weight 2.12Kg
Pole Diameter 29mm Tube Thickness 1.5mm
Graduation Metric Grad (cm) Thread 5/8''*11
Bubble 18’ Fits Prism (non-Leica Type)
High Light

5.1m Prism Pole Bipod

,

Twist Lock Prism Pole Bipod

,

5.1m total station prism pole

Leave a Message
Product Description

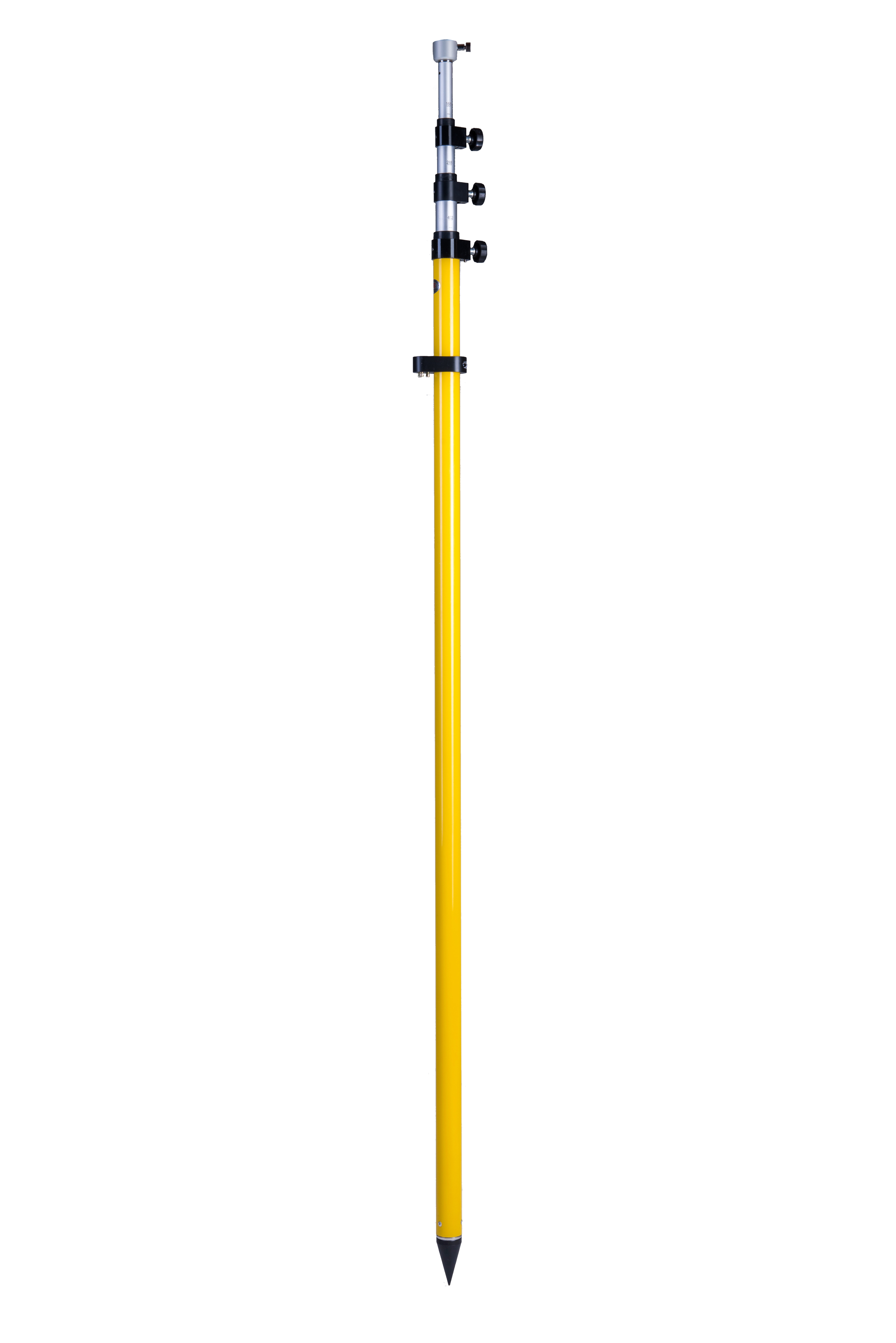

Twist-Lock Style 5.1m Reflector Prism Pole for Sale for Total Station



Model: PL5



Specifications:

Model PL5
Color Yellow
Material Aluminum
Section 4
Type Twist Lock
Contraction Length 1680mm
Extension Length 5100mm
Net Weight 2.12Kg
Pole Diameter 29mm
Tube Thickness 1.5mm
Graduation 1cm
Package 10Pcs/Carton
Thread 5/8’’*11
Bubble 18’
Fits Prism (non-Leica type)



Overview:

A. Made of high quality aluminium tubes with anodized surface.

B. The first section is hollow and powder coated.

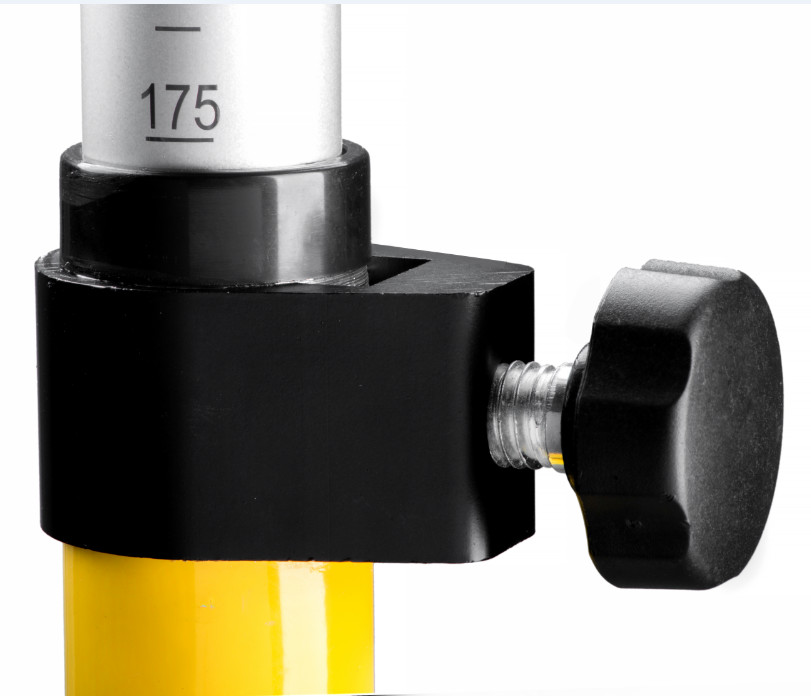

C. With quick release clamp, the prism pole can be adjusted quickly and easily.

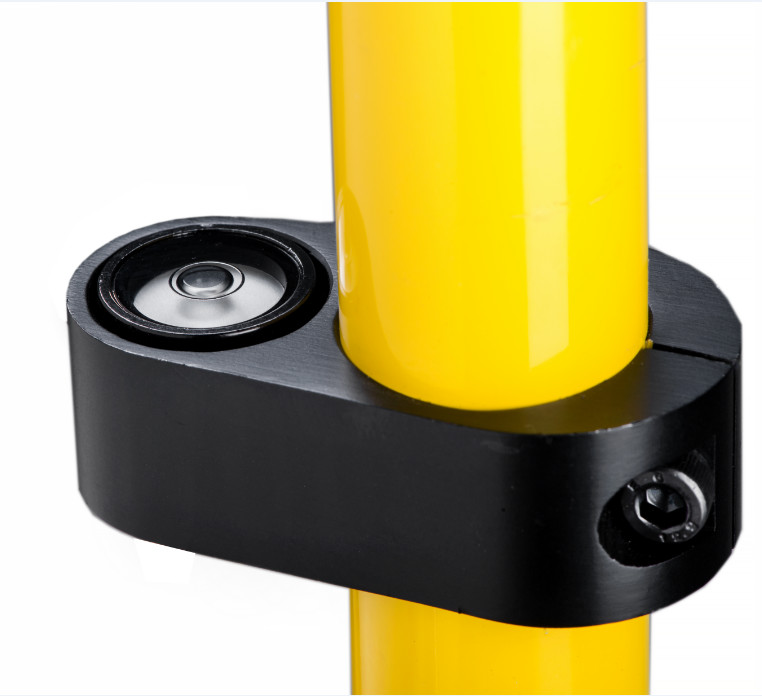

D. Equipped with circular bubble.

E. High quality standard material is being used. Leosurvey uses 1.5mm thickness aluminum tube and others may use 0.8~1.2mm type tube.





Features:

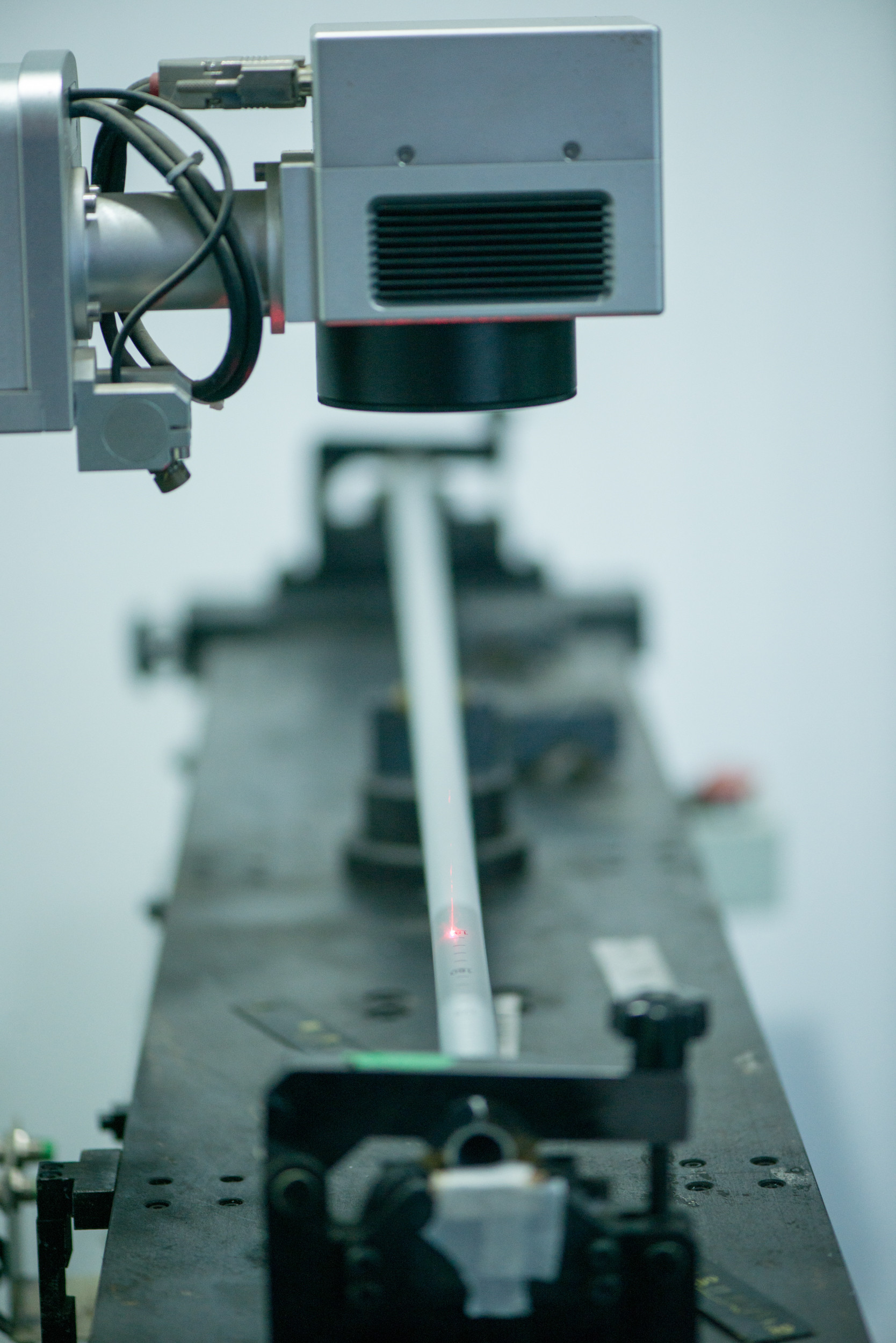

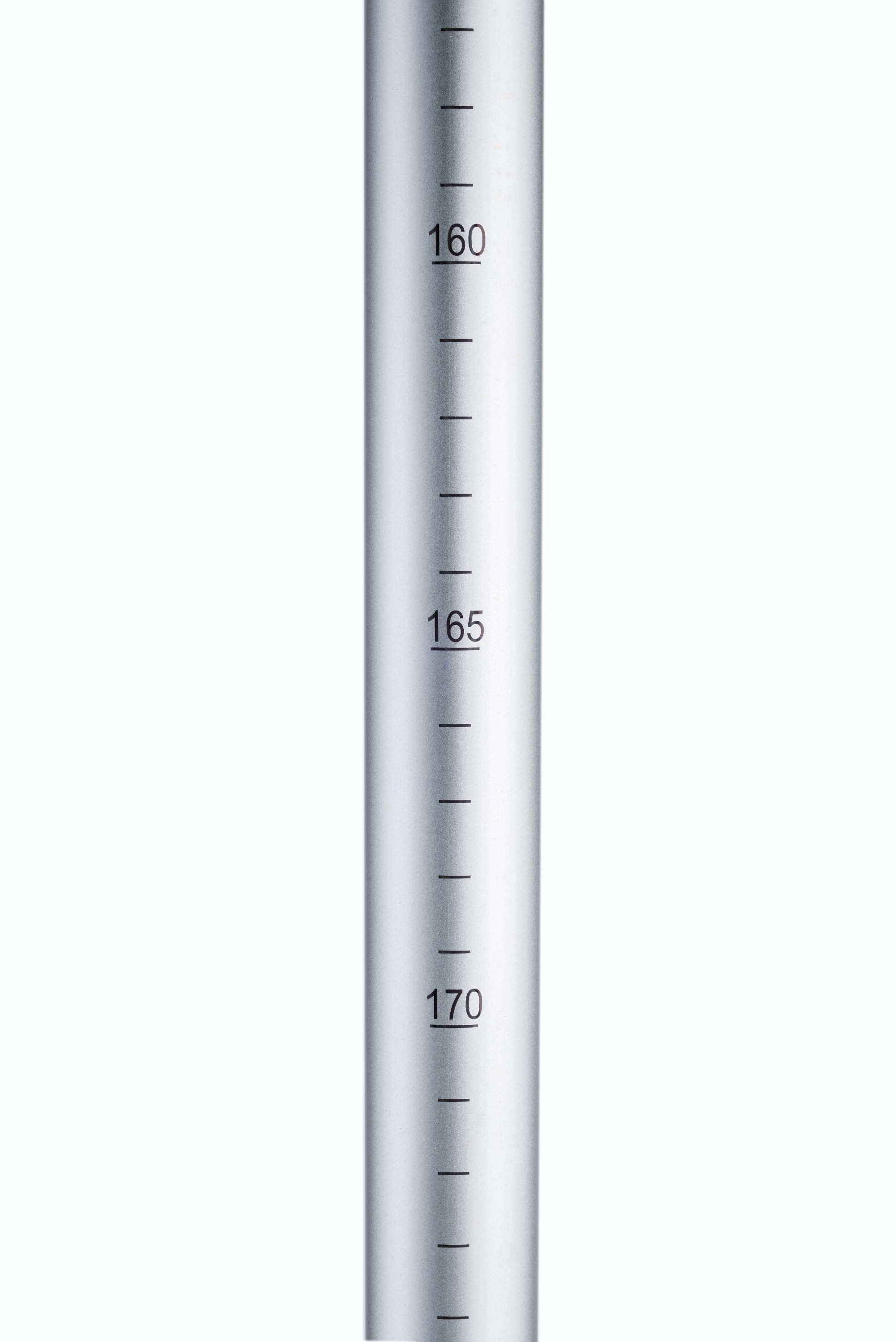

  1. The graduation marking is engraved by laser beam not printed or knife carved. So the marking is very clear and non-fading. Most importantly, the high accuracy can be guaranteed.
  2. Outer tubes adopts powder coating spraying technology. This technology ensures the surface wearable, flat and beautiful.
  3. Well-finished appearance without burr/speculation; others are rough. We pay more attention on craftsmanship, so it takes longer time during every procedure.
  4. Heavy duty prism pole will be more durable and steady.
  5. The pole can be attached with GNSS receiver with attach with GNSS adaptor.



How do I use a prism pole?

For a surveying prism to be effective, it needs to be attached to a pole so it can stay in a fixed position. It needs to be properly aligned with the instrument to ensure accurate results. And because these tools have been proven over the years, many people don’t see them as the reason for measurements that seem a little off. If you’re pointing to a prism that isn’t perpendicular to the instrument’s line of sight, it can harder to find its exact center. This can result in measurements that aren’t as precise.



Prism Pole

A prism pole is an item for any professional surveyor, because it allows you to make accurate measurements quickly. It can be used with many types of survey equipment — from total stations to theodolites. And with the broad selection that we have at Leosurvey, you can find what you need at a price you can afford. You can find a survey pole in many different configurations, so feel free to look at what we have in stock. We’re confident you’ll be able to find a product that will meet your specific needs.



Package:

1pc/nylon bag; 10pcs/box
