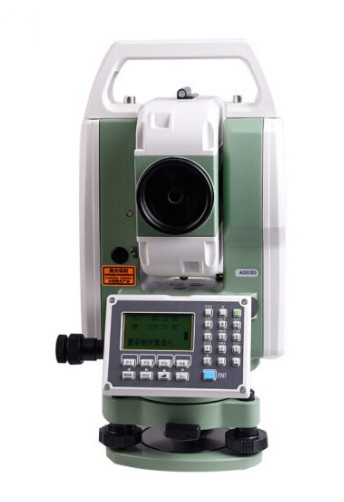

FOIF Surveying Electronic Digital Total Station RTS112SR6 Reflectorless Distance 600m

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RTS112SR6 | Image | Erect |
---|---|---|---|
Magnification | 30X | Single Prism | 5000m |
Reflectorless | 600m | Accuracy | 2'' |
Prism Accuracy | 1.5mm+2ppm | Tracking Time | 0.4s |
Compensator | Single Axle | Battery | Li-ion Rechargeable |
Output Voltage | 7.4V DC | Operation Time | 10 Hours |
Condition | NEW | Dual Screen | YES |
Connections | USB, RS232 | Waterproof And Dust Proof Grade | IP66 |
Highlight | 30X Magnification Surveying Total Station,Reflectorless 600m Total Station,5000m Prism Total Station |
Surveying Instrument Digital Total Station FOIF RTS112SR6 Reflectorless Distance 600m
Model: RTS112SR6
Specifications:
Telescope | |
Field of View | 1°30′ |
Effective Aperture of Objective Lens | φ45mm |
Resolution | 3.5 ″ |
Magnification | 30X |
Minimum Visual Distance | 1.0m |
Ranging | |
Accuracy | ± (2mm+2x10-6 D) |
Ranging |
600m/non prism; 800m/reflector sheet 5000m/single Prism |
Crude Test | 1.2s |
Fine Test | 0.7s |
Tracking | 0.4s |
Angle Measurement | |
Method | Absolute Encoding |
Angle Measuring Accuracy | 2″ |
Min. Reading | 1″/5″ |
Compensator | |
Compensation Method | Single Axle Compensation |
Compensation Range | ±3′ |
Power Supply | |
Operating Voltage | 7.4V DC (rechargeable lithium ion battery) |
Working Hours | Continuous measuring angle ranging about 10 hours, continuous angle of about 45 hours |
Others | |
Communication | RS-232C/USB (optional) SD card (optional)/Bluetooth (optional) |
Memory | 120000 |
Waterproof, Dustproof | IP66 |
Features:
1 Dual OLED screen
2 SD Card, Bluetooth
3 USB, RS232
4 (x2) Batteries with over 26 hours of working time
5 Onboard application programs
Applications:
FOIF total station applied absolute encoder system to digital angle measurements, it adopt phases measurement system to measure distance. It can measure distance not only with prism but also with reflective sheet, so much as it can work without cooperate objective.
It can achieve measurement, calculating, display and storage etc. by means of microcomputer-technology. It can display measuring results of horizontal, vertical angle and distance at the same time.
These series total station is designed for engineering items, especially for every construction area. It can be used in coordinate measurement or location measurement for construction, remote elevation measurement, plumb line surveying, ductwork surveying and sectional surveying etc. It also can be used in triangulation control survey, cadastral surveying, topographic surveying and house property surveying.
Battery in Total Station
- Mounting the battery
Insert the battery by aligning the battery pack’s tenon with the notch in the instrument, press the battery clamp and push the top of the battery pack until you hear a click.
- Removing the battery
Press the battery clamp and remove the battery pack by pulling it toward you.
- Battery Indicator
Battery power display indicates the power condition. You should recharge or replace the battery when you hear the continue buzz. Please turn off in the normal way in order to save the data. Please find the battery operating time on specifications.
Other Available Models:
RTS112SL
RTS110SR5
RTS112SR6
RTS110SR10
RTS110SR8
Package: Hard Carrying Case

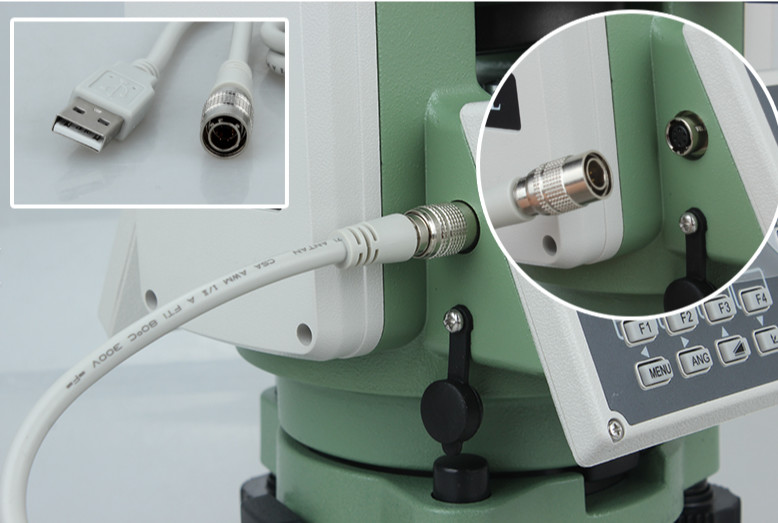

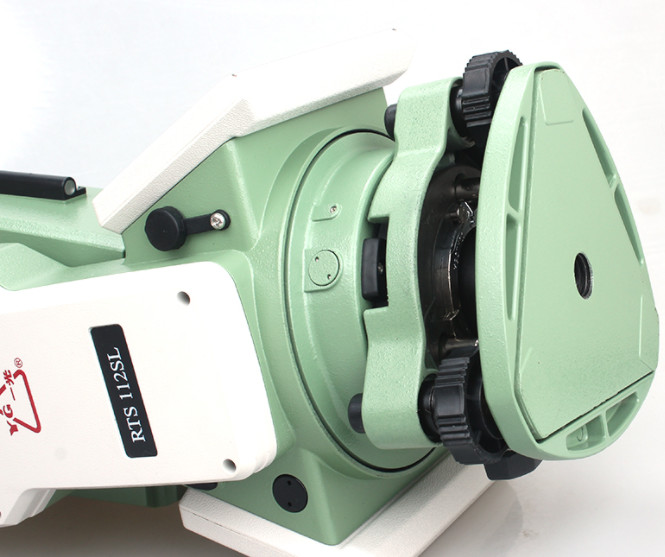

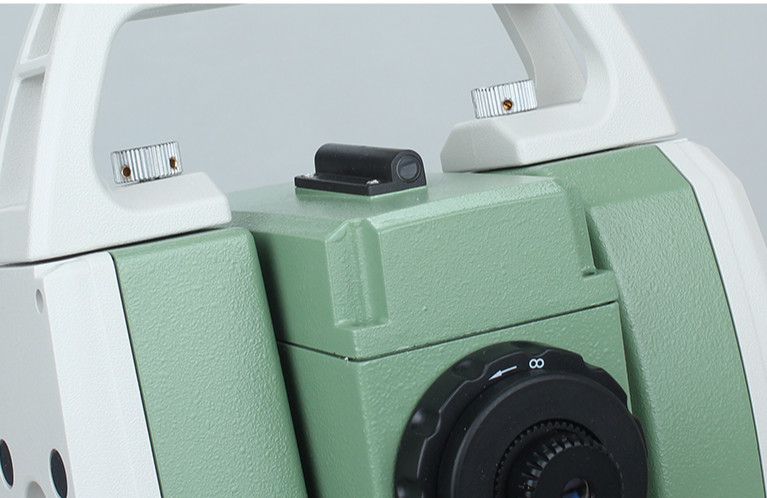

Detailed Pictures
