OTS650 Surveying Instrument 1000m Reflectorless Total Station

  • OTS650 Surveying Instrument 1000m Reflectorless Total Station
  • OTS650 Surveying Instrument 1000m Reflectorless Total Station
Place of Origin China
Brand Name FOIF
Certification ISO
Model Number OTS650
Minimum Order Quantity 1 Piece
Packaging Details Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model OTS650 Image Erect
Magnification 30X Single Prism 6000m
Reflectorless 1000m Accuracy 2''
Measuring Range 2.0 To 600m (800m Optional) Prism Accuracy 1.5mm+2ppm
Measuring Time Initial: 2.5sec Compensator Dual-axis
Setting Accuracy 1'' Plate Level Vial 30''/2mm
Circular Level Vial 8'/2mm Battery 3400mAh Li-ion Rechargeable
Output Voltage 7.4V DC Operation Time 12 Hours
Display Large LCD (240*128 Dots) CPU 32Bit
Highlight

OTS650 Total Station

,

Reflectorless Total Station

,

30X Magnification Total Station
Leave a Message
Product Description

OTS650 Surveying Instrument 1000m Reflectorless Total Station Single Prism 6000m



Model: OTS650



Specification:

Model OTS650
Image Erect
Magnification 30X
Shortest Focus Distance 1.0m
Reading System Absolute encoder
Accuracy of RTS680 2’’
Prism 1.0-1.5s
Measuring Range 2.0 to 600m (800m optional)
Prism Accuracy 1.5mm+2ppm
Measuring Time Initial: 2.5sec
Compensator Dual-axis
Setting Accuracy 1’’
Plate Level Vial 30’’/2mm
Circular Level Vial 8’/2mm
Laser Plummet Accuracy 1mm/1.5m
Optical Plummet Accuracy 0.8mm/1.5m
Battery 3400mAh Li-ion Rechargeable
Output Voltage 7.4V DC
Operation Time 12 Hours
Charger FDJ6-LI(11v/24v)
Charging Time 4 Hours
Display Large LCD (240*128 dots)
CPU 32Bit
Memory 128M internal memory, support SD card
Keyboard Alphanumerical, both sides
Weight 15Kg
Dimension 185*220*360mm
Data Transfer Software FOIF Geomatics Office
Water and dust Protection IP55



Introduction:

EDM technology is improved, its powerful long reflectorless measuring distance can reach 600m/1000m

Power long reflectorless measuring distance 300m (R300)/ 500 (R500)

Bluetooth cable-free connection

128Mb internal memory, 120000 points and 40 jobs can be saved

Can be operated with a data collector, FOIF FieldGenius or Carlson SurvCE

IP66 environmental protection

Alphanumeric keyboard



Features:

A. Dual Screen

B. SD card, Bluetooth

C. USB, RS232

D. Two Batteries with over 26 hours of working time





FOIF Total Station

FOIF provides total station solutions to meet all your surveying needs. Measurements have never been so easy to perform as with the FOIF Total Station, which allows beginners and professionals to do the job quickly and efficiently.

Overview of RTS100 Series Total Station

1. Alphanumeric Keyboard

2. Reflectorless measuring distance: 600m(R600)

3. Bluetooth cable-free connection (Factory Optional)

4. 120000 points and 40 jobs can be saved.

5. Can be operated with a data collector, FOIF FieldGenius, or other third party software is available.



Package: Hard Carrying Case

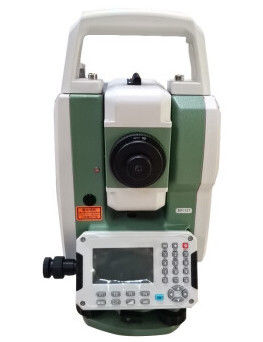

OTS650 Surveying Instrument 1000m Reflectorless Total Station 0



Detailed Pictures

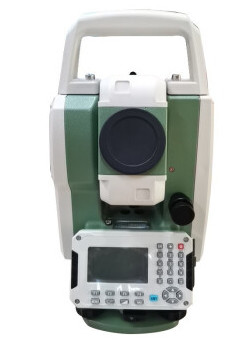

OTS650 Surveying Instrument 1000m Reflectorless Total Station 1

OTS650 Surveying Instrument 1000m Reflectorless Total Station 2

OTS650 Surveying Instrument 1000m Reflectorless Total Station 3
