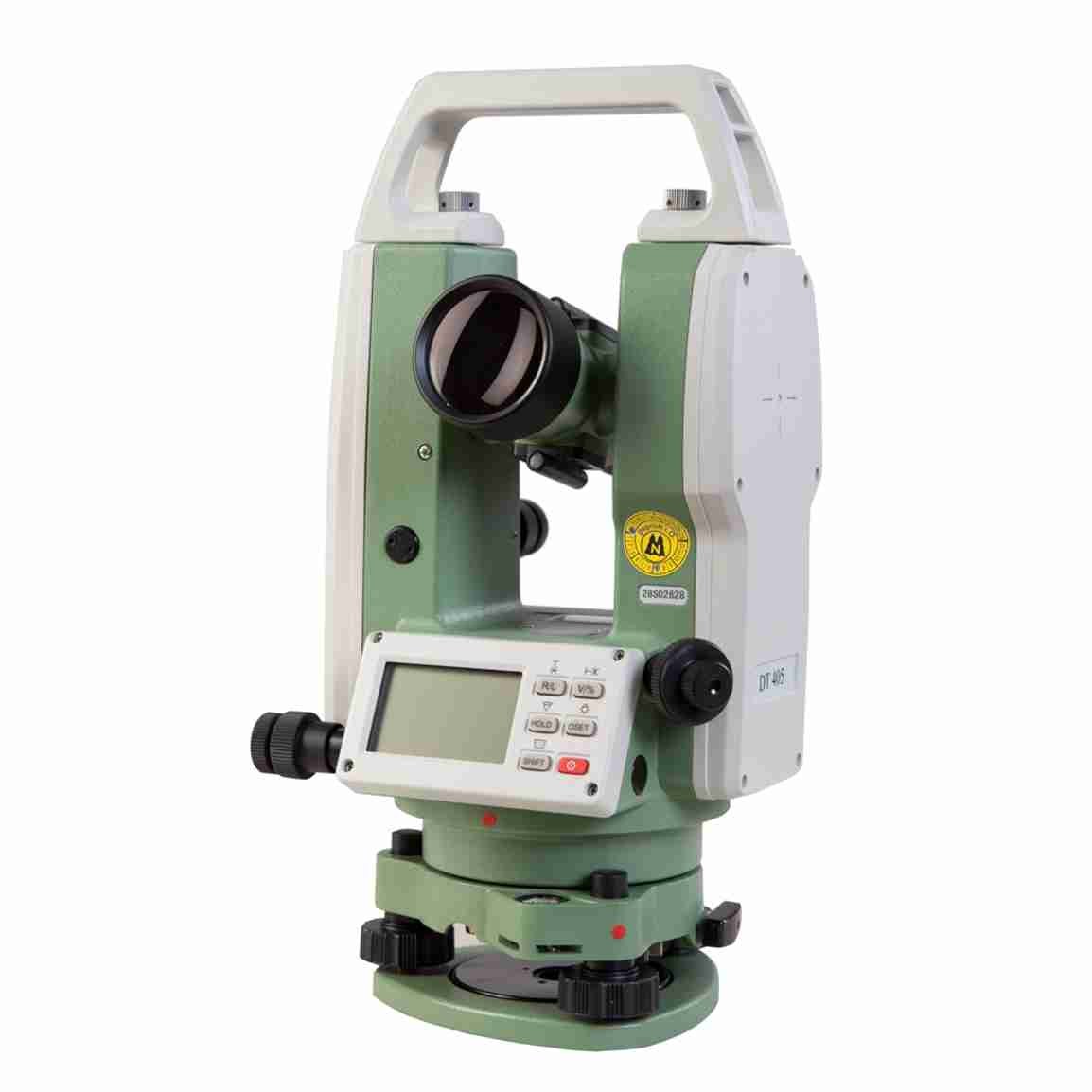

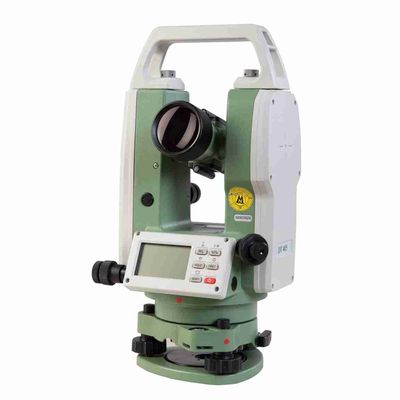

DT402 Auto Surveying Instrument Electronic Digital Theodolite
| Place of Origin | China |
|---|---|
| Brand Name | FOIF |
| Certification | ISO |
| Model Number | DT402-Z |
| Minimum Order Quantity | 1 Piece |
| Price | 400USD~500USD |
| Packaging Details | Carton |
| Delivery Time | 10~20 Work Day |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per month |
Product Details
| Model | DT402-Z | Brand | FOIF |
|---|---|---|---|
| Accuracy | 2'' | Image | Erect |
| Magnification | 30X | Mininum Focus | 1.0m |
| Collimating Accuracy | 5'' | Working Range | 30m |
| Battery | 6V Ni-Mh | Operating Time | 24 Hours |
| LCD Display Backlight | YES | Optical Plummet Accuracy | 0.8mm/1.5m |
| Compensator | Single Axis | Net Weight | 5Kg |
| High Light | DT402 Auto Surveying Instrument,Digital Theodolite Surveying Instrument,electronic digital theodolite |
||
Product Description
High Standard Quality Auto Collimating Digital Theodolite DT402-Z FOIF Surveying Instrument
Model: DT402-Z
Introduction:
DT402-Z is equipped with an integrated collimation device, directional orientation error of auto-collimator part is less than 5’’.
In the field of optical tooling this enables reference lines to be set up to detect small changes of inclination in the object or to evaluate differences in the inclination of different parts of the object.
DT402-Z effective working distance for indoor collimation reaches to 30m, directional orientation error of auto-collimator part is less than 5″.
Pretty tailor-maked for industrial customers, which include but are not limited to: Machine tool construction, Rail transit construction, Port and shipbuilding, Telecommunications, Heavy industry construction, etc.
Lower power consumption, longer working time with one battery
Highlights:
1. Electronic Theodolite
2. Magnification: 30x
3. LCD on both sides
4. Compensator
5. RS-232C
6. Laser plummet
Available Models:
1. DT402, 2” Precision with Optical Plummet
2. DT402L, 2” Precision with Laser Plummet
3. DT405, 5” Precision with Optical Plummet
4. DT405L, 5” Precision with Laser Plummet
