2000mAh Auto Level Machine 0.7mm Surveying Digital Auto Level

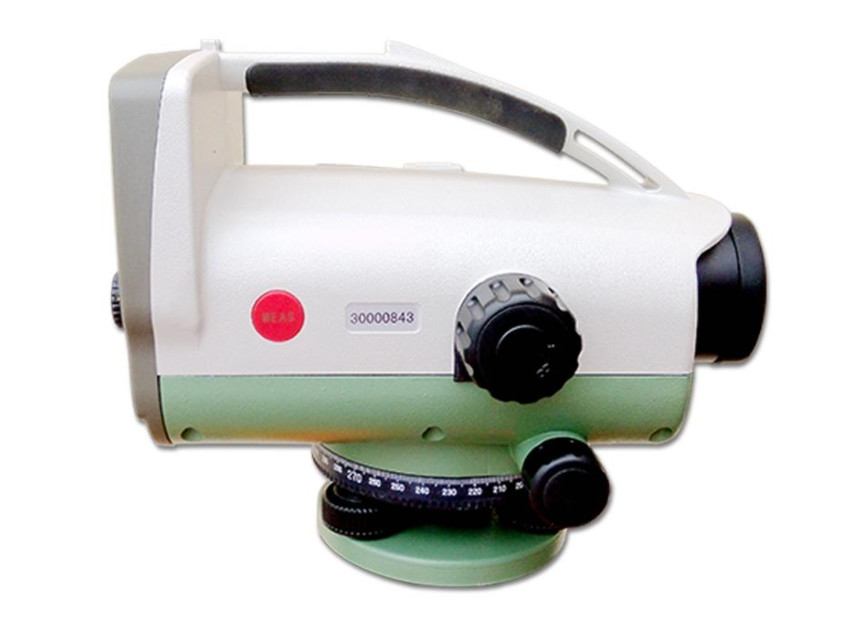

FOIF EL302A Digital Level Surveying Instrument For Height Measurement 0.7mm Accuracy

Model: EL302A

Specifications:

Introduction:

• Range: 2-105 m
• Time for single measurement: ≤ 2s
• LCD display with illumination
• Alphanumeric keyboard
• Automatic height and delta height calculation
• Optical reading is available
• Internal memory (3000 points) or SD card for data storage, supports USB and RS-232C ports for data transfer

• For measuring range: ≤105m
• Accuracy EL03: Electronic ≤ ±0.7mm, Optical ≤ ±1.5mm
• Reliable reading, even in dim light condition
• Onboard programs, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
• LCD display presents all important measured data at a glance and shows the next step to take
• Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
• Quick height and distance result-the reading is displayed almost instantly with measurement

Highlights:

1. Far measuring range: ≤105m

2. Accuracy: ≤±0.7mm

3. Reliable reading, even in dim light conditions

4. Remote control measurement by Bluetooth

5. Onboard programs, such as BF, BFFB, BFBF, BBF, FBBF, stake out, intermediate

6. LCD display presents all important measured data at a glance and shows the next step to take

7. Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button

8. Quick height and distance result-the reading is displayed almost instantly with measurement
