Measuring Automatic Level Machine 28X Dumpy Level Accuracy 1.5mm

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | EL28 | Brand | FOIF |
---|---|---|---|
Compensator | Magnetic-Damped | Magnification | 28X |
Objective Apeture | 45mm | Accuracy 1km Double Run | 1.5mm |
Minimum Focus | 0.8m | Water Proof | IP54 |
Highlight | 28X 1.5mm automatic level machine,28X automatic level machine,28X 1.5mm dumpy level accuracy |
High Precision Automatic Measuring Surveying Instrument 28X Digital Level FOIF EL28
Model: EL28
Specifications:
Brand | FOIF |
Model | EL28 |
Compensator | Magnetic-Damped |
Magnification | 28X |
Objective Apeture | 45mm |
Accuracy 1km double run | 1.5mm |
Minimum Focus | 0.8m |
Water Proof | IP54 |
Features:
· Easy one-touch operation, simply push the trigger key
· Quicker and easier than an optical level Efficiency increased by 30%
· The battery could work more than one week, compact design
· Quick height and distance result-the reading is displayed almost instantly with measurement
· Advance compensator checking button
Detailed Data Sheet:
Model | EL28 | |
Accuracy | ||
Standard deviation of km double run | ||
Electronic measurement | +/-1.5mm* | |
Optical measurement | +/- l.5mm* | |
Electronic measurement | ||
Time for single measurement | ≤2s | |
Range | 2-80m | |
Measurement modes | Singel, tracking | |
Display resolution(m/in selectable) | ||
Height | 1mm/0.01ft | |
Distance | 10mm/0.1ft | |
Telescope | ||
Clear objective aperature | 45mm | |
Magnification | 28x | |
Field of view at 100m | 2.6m | |
Shortest focus distance | 0.8m | |
Automatic compensator | ||
Working range | 15' | |
Setting accuracy | +/-0.4" | |
Power | ||
Battery | 2000mAh Ni-MH rechargeable | |
Continuous operating time | 40 hours | |
Measurement programs | ||
On-board programs | DH,inverse staff measurement I error checking and adjustment |
|
Others | ||
Display | Segment display | |
Keyboard | Function key board,6 keys | |
Interface | RS232 | |
Sensitivity of circular level | 8'/2mm | |
Water and dusp protection | IP54 | |
Operating temperature | -20°C~50°C | |
Net weight | 2kg |

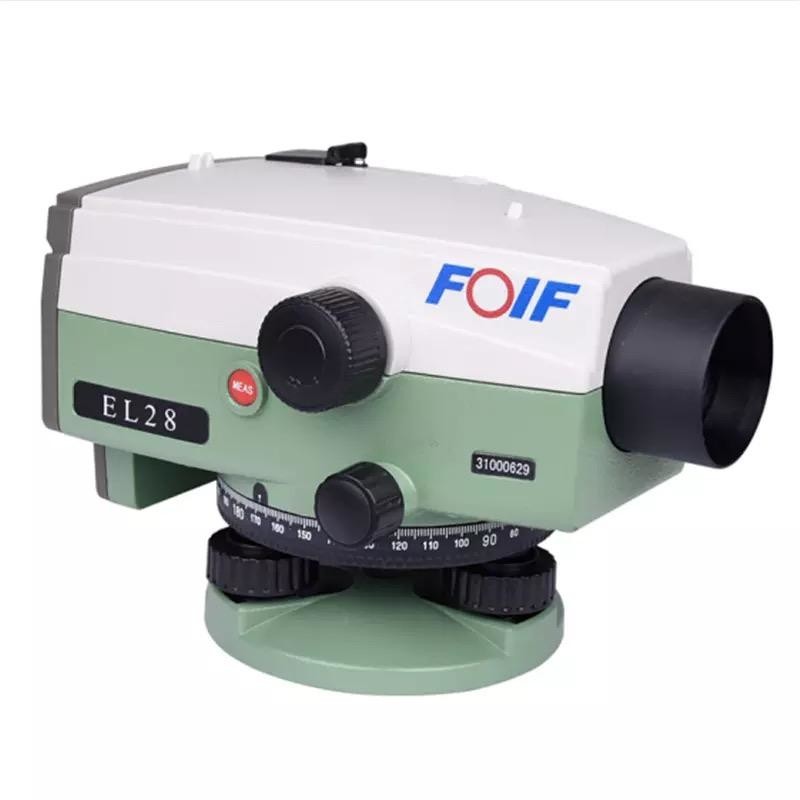

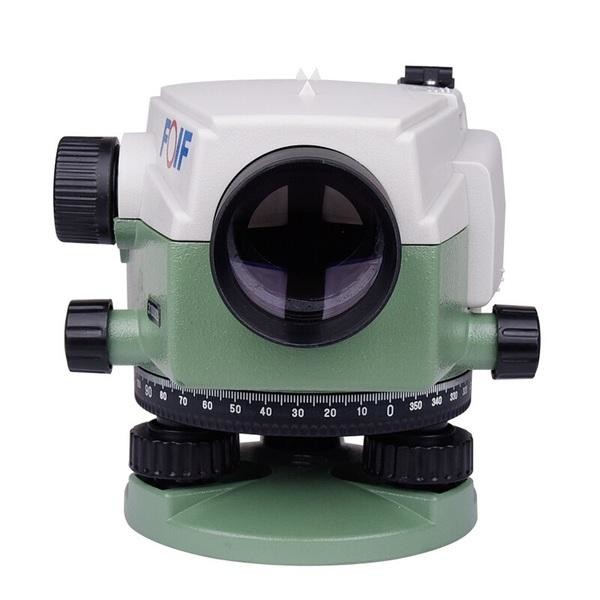

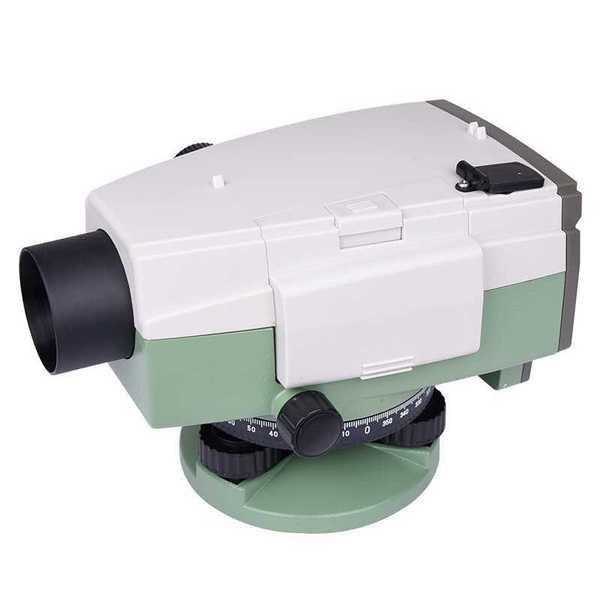

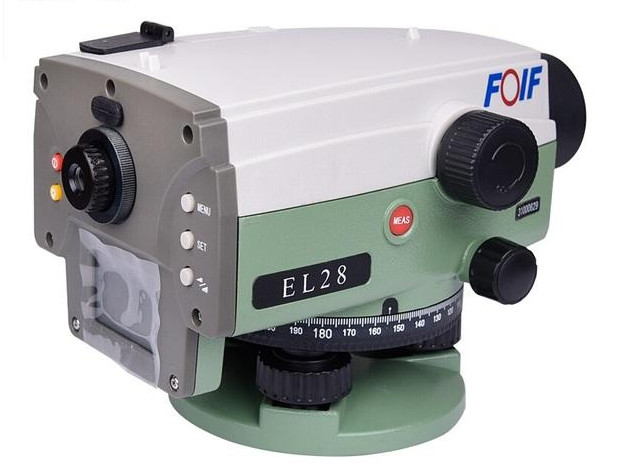

Detailed Pictures:
