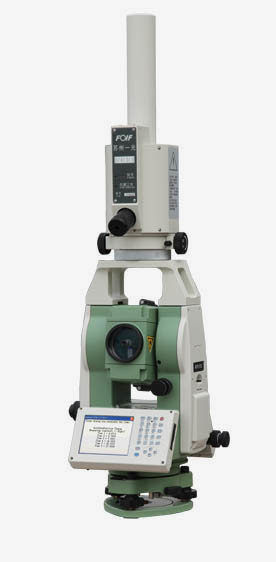

Automated Gyroscope Station GTA1315 Surveying Equipment 3.2Kg

Place of Origin China
Brand Name FOIF
Certification ISO
Model Number GTA1315
Minimum Order Quantity 1 Piece
Price 80000USD~82000USD
Packaging Details Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 100 pieces per month
Product Details
Model GTA1315 Accuracy Of Azimuth Determination 15''
Running-up Time Approx. 120 Seconds Operation Area Up To Latitude 75 Degree
Weight 3.2Kg Size W140*D186*H415mm
Operating Temperature -20~50 Degree Centigrade Power Supply 7000mAh, Li-ion Rechargeable Battery; 24V, 5A Power Inverter
Output Voltage 24V Working Time Approx. 6 Hours
Charging Time Approx. 10 Hours Condition New
High Light

GTA1315 Surveying Equipment


3.2Kg Surveying Equipment


3.2Kg gyro station

Leave a Message
Product Description

GTA1315 Multi-use Surveying Equipment High Precision Automated Gyroscope Station Survey Instrument


Model: GTA1315



Model GTA1315
Accuracy of azimuth determination 15’’
Running-up time Approx. 120 seconds
Operation area Up to latitude 75 degree
Weight 3.2Kg
Size W140*D186*H415mm
Operating temperature -20~50 degree centigrade
Power Supply 7000mAh, Li-ion Rechargeable battery; 24V, 5A power inverter
Output Voltage 24V
Working Time Approx. 6 hours
Charging Time Approx. 10 hours



1. Gyro Station technology combines a gyroscope with a total station, creating a multi-use, surveying and engineering instrument.

2. The GTA1300 can determine the azimuth to within 10’’ with a 20 minutes observation.

3. It is also equipped with a fast orientation function which can be used when the azimuth to another point is known. There are also models with 10’’ and 15’’ accuracy specification.

4. The GTA1300 is deal for working in underground environments and in buildings. It can improve efficiency, shorten construction time, improve accuracy, and bring great benefits to the user.

5. The GTA1300 is more resilient than previous instruments and less damaged through misuse. Whilst previously, teachers were reluctant to let students use gyro instruments, this is no longer the case with the GTA1300 which is ideal for teaching further and higher education of surveying and construction students.



· High accuracy of azimuth determination: 5″/GTA1305, 10″/GTA1310, 15″/GTA1315

· Automatical azimuth determination, easy operation

· High precision, more stable and faster measurements, just 20minutes to get azimuth angle

· Windows CE 5.0 operating system, professional on-board software FieldGenius, after

measuring azimuth angle, it can work as well as normal total station for all survey projects

· Can work under hard conditions, it can work anytime and anywhere


Available Models:

· GTA1310, 10” azimuth Precision of Gyro

· GTA1315, 15” azimuth Precision of Gyro

· 2” or 5” angle precision for the Total Station unit
