32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS

  • 32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS
  • 32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS
  • 32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS
  • 32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS
  • 32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS
Place of Origin China
Certification ISO
Model Number TM12
Minimum Order Quantity 6 pieces
Price 30USD~40USD
Packaging Details 1pc/inner bag/box; 6 boxes/carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 10cm-9,999m (1 Inch~9999.11ft) Reset Counter Yes
Handle Brake Yes Wheel Material ABS Plastic Wheel Rim With High-Traction Flat PU Tire
Wheel Diameter 319.7mm Wheel Circumference 100cm
Increment 10cm Tube Material Aluminum
Wheel Runs Roller Bearings Net Weight 1.72Kg
Overall Length 980mm Folded Length 530mm
Traction PU Tire Mounted To Rim Storage Type 2 Pieces Folded
Package 1pc/inner Bag/box; 6 Boxes/carton Condition New
Highlight

32cm Total Station Accessories

,

Rugged 999m Total Station Accessories

,

Rugged 1m distance measuring wheel
Leave a Message
Product Description

Durable and Rugged 32cm Diameter Measuring Wheel with Brake, Handle Counter Reset and Carry Bag



Model: TM12



Specifications:

Max. Measuring Distance 10cm-9,999m (1 inch~9999.11ft)
Color Yellow
Handle Reset Counter Yes
Handle Brake Yes
Kick Stand Yes
Fold Down Yes/2 pieces fold-down
Wheel Material ABS Plastic Wheel rim with High-Traction Flat PU Tire
Wheel Diameter 319.7mm
Wheel Circumference 1m
Increment 10cm
Tube Material Aluminum
Wheel Runs Roller bearings
Net Weight 1.72Kg
Overall Length 980mm
Folded Length 530mm
Traction PU tire mounted to rim
Storage Type Folded



Overview:

This TM12 Professional is an extremely popular 320mm diameter measuring wheel with brake, handle counter reset and carry bag, suitable for a wide range of external distance measuring applications.



Featuring a centered 32cm diameter wheel with a balanced fork design and wheel scraper, the TM12 is the right sized wheel to handle measuring tasks for pavements, re-reinstatement and roads, internal warehouses and factories, land surveying, civil earthworks and drainage, residential and commercial building and all purpose landscaping.

The TM12 has a brake in the handle to prevent free wheeling when the wheel is lifted off the ground. The re-settable counter has buttons not only on the counter but also in the handle assembly.

For ease of transport, the aluminum constructed handle folds in two and is supplied with a transport stroage bag.



Common Uses:

1. Paving/Road Marking

2. General Construction

3. Fencing and Garden Layouts

4. Pool Building

5. Sports Fields

6. Factory Layouts

7. Property Assessment

8. Traffic Control

9. Insurance

10. Mainly used on uneven surfaces



Item Details:

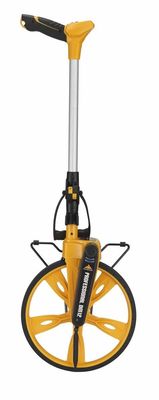

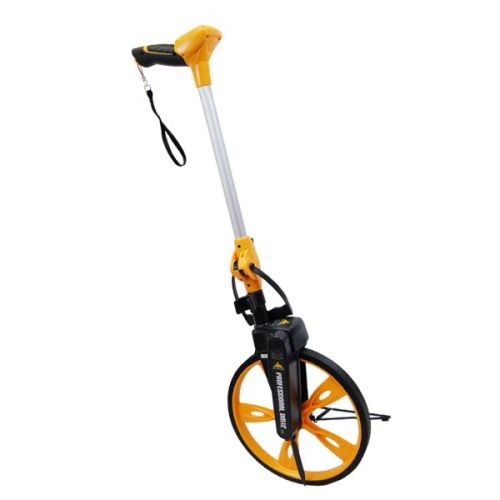

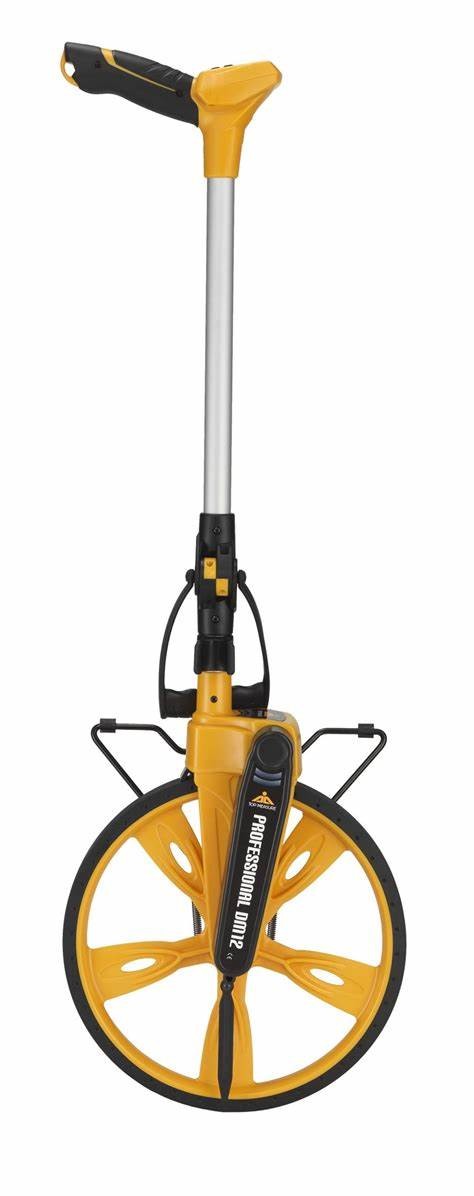

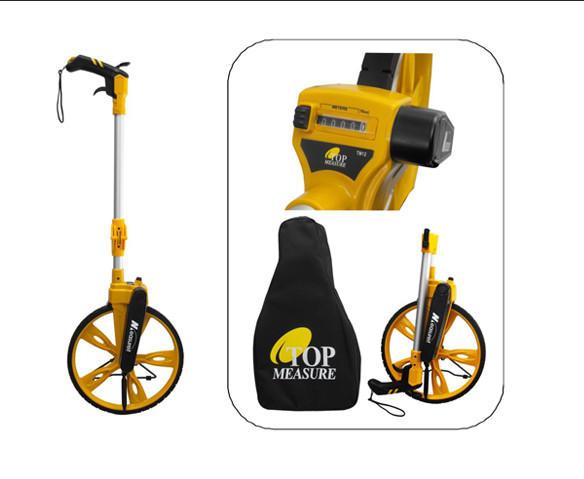

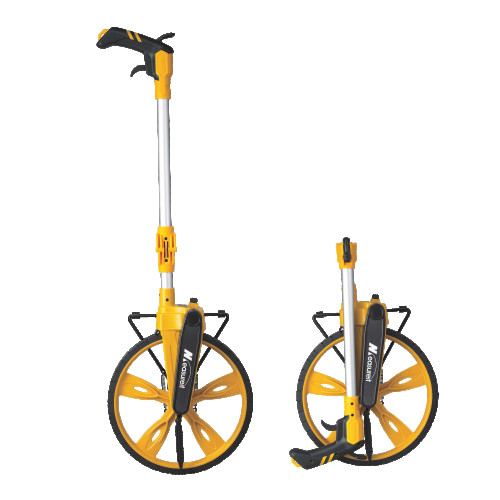

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 0

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 1

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 2

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 3

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 4

32cm Total Station Accessories Rugged 999m Distance Measuring Wheel ABS 5
