GPR121 Total Station Prism GDF321 Total Station Reflector Carrier Adaptor
| Place of Origin | China |
|---|---|
| Brand Name | Leica |
| Certification | ISO |
| Model Number | LPS1 |
| Minimum Order Quantity | 1 Set |
| Price | 250USD~300USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500 Sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Single Prism Set | Original Leica Brand | Yes |
|---|---|---|---|
| Prism Model | GPR121 | Prism Constant | 0mm |
| Centering Accuracy | 1.0mm | Prism Type | Circular |
| Tribrach Model | GDF321 | Tribrach Type | Without Optical Plummet |
| Torsional Stiffness | <1" | Adaptor/Carrier Model | GRZ103 |
| Carrier Type | With Optical Plummet | Package | Plastic Carry Case |
| Highlight | GPR121 Total Station Prism,GDF321 Total Station Prism,GDF321 total station reflector |
||
Product Description

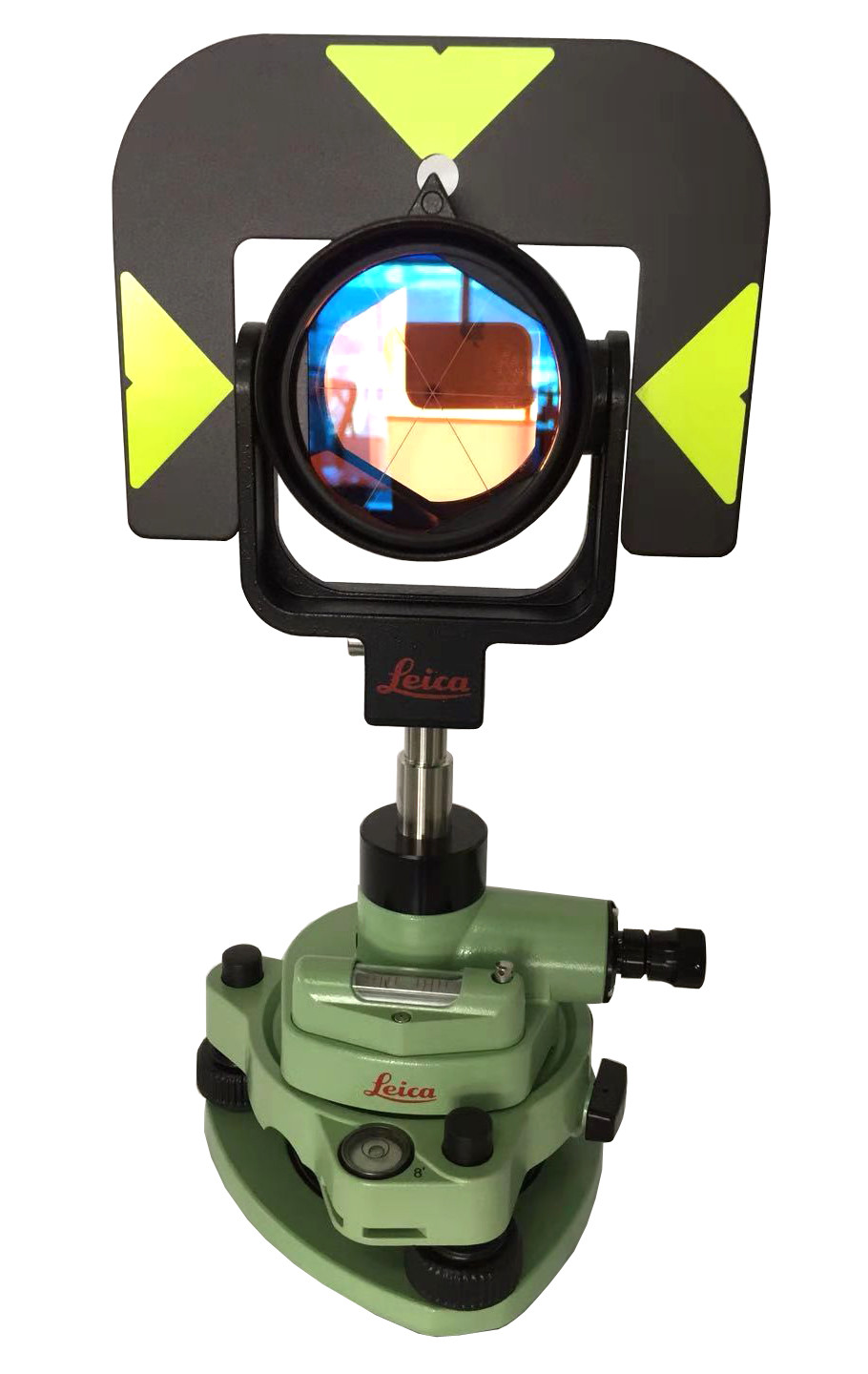

Original Leica Single Reflector Prism Set GPR121 Prism GDF321 Tribrach and GZR103 Carrier Adaptor
Model: LSP1
Specification:
| Type | Single Prism Set |
| Original Leica Brand | Yes |
| Prism Model | GPR121 |
| Prism Constant | 0mm |
| Centering Accuracy | 1.0mm |
| Prism Type | Circular |
| Tribrach Model | GDF321 |
| Tribrach Type | Without Optical Plummet |
| Torsional Stiffness | <1" |
| Adaptor/Carrier Model | GRZ103 |
| Carrier Type | With Optical Plummet |
| Package | Plastic Carry Case |
| Used for | Leica Total Station |
This Prism Set Includes:

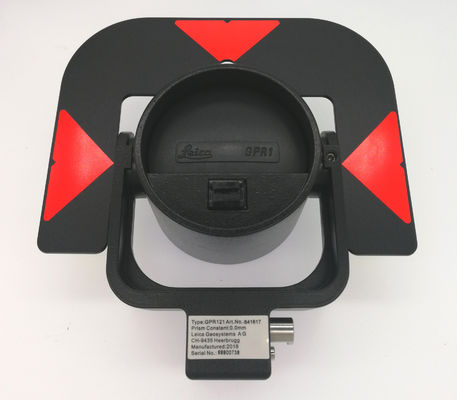

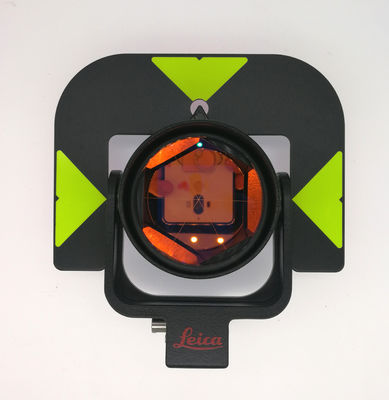

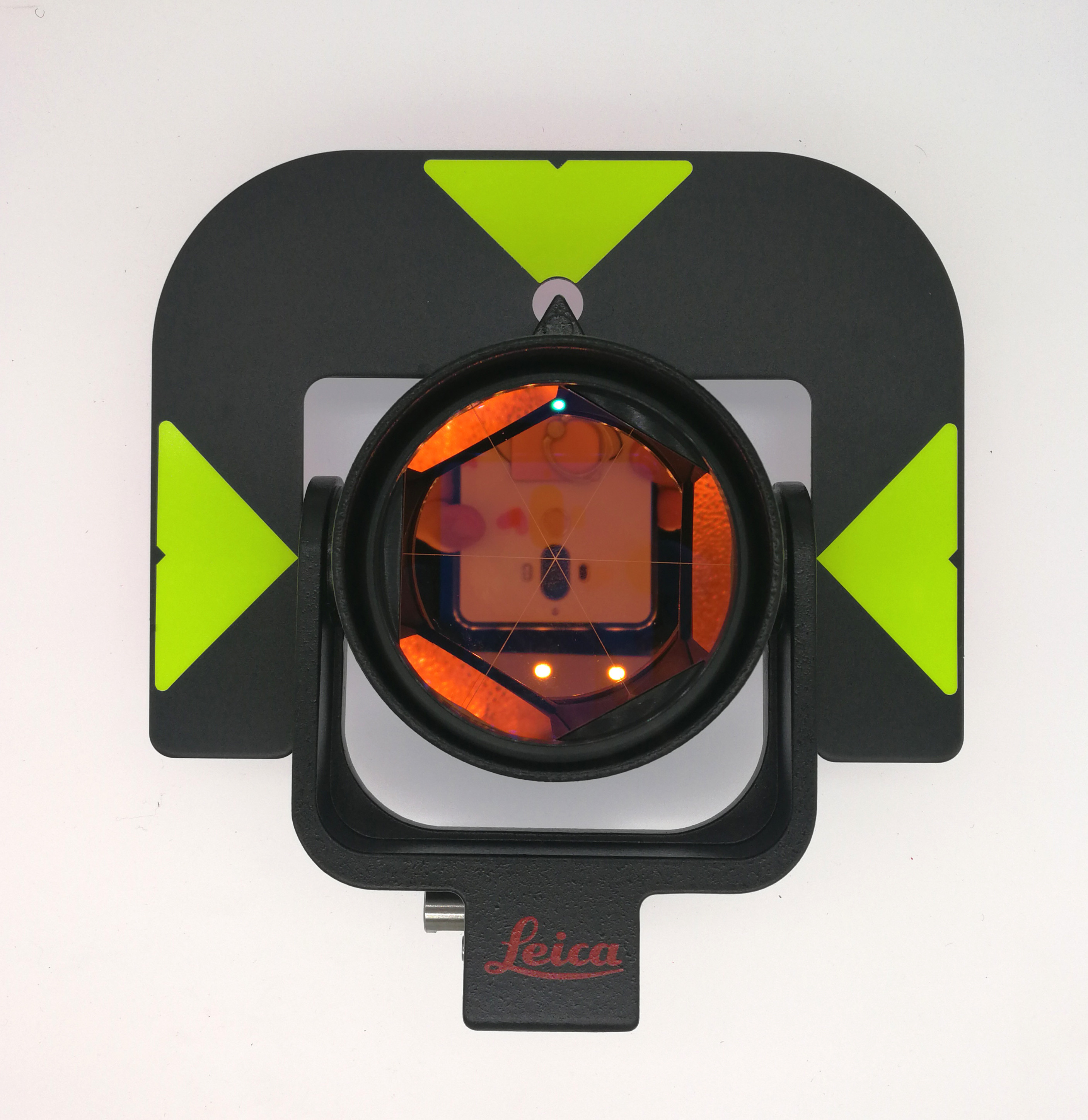

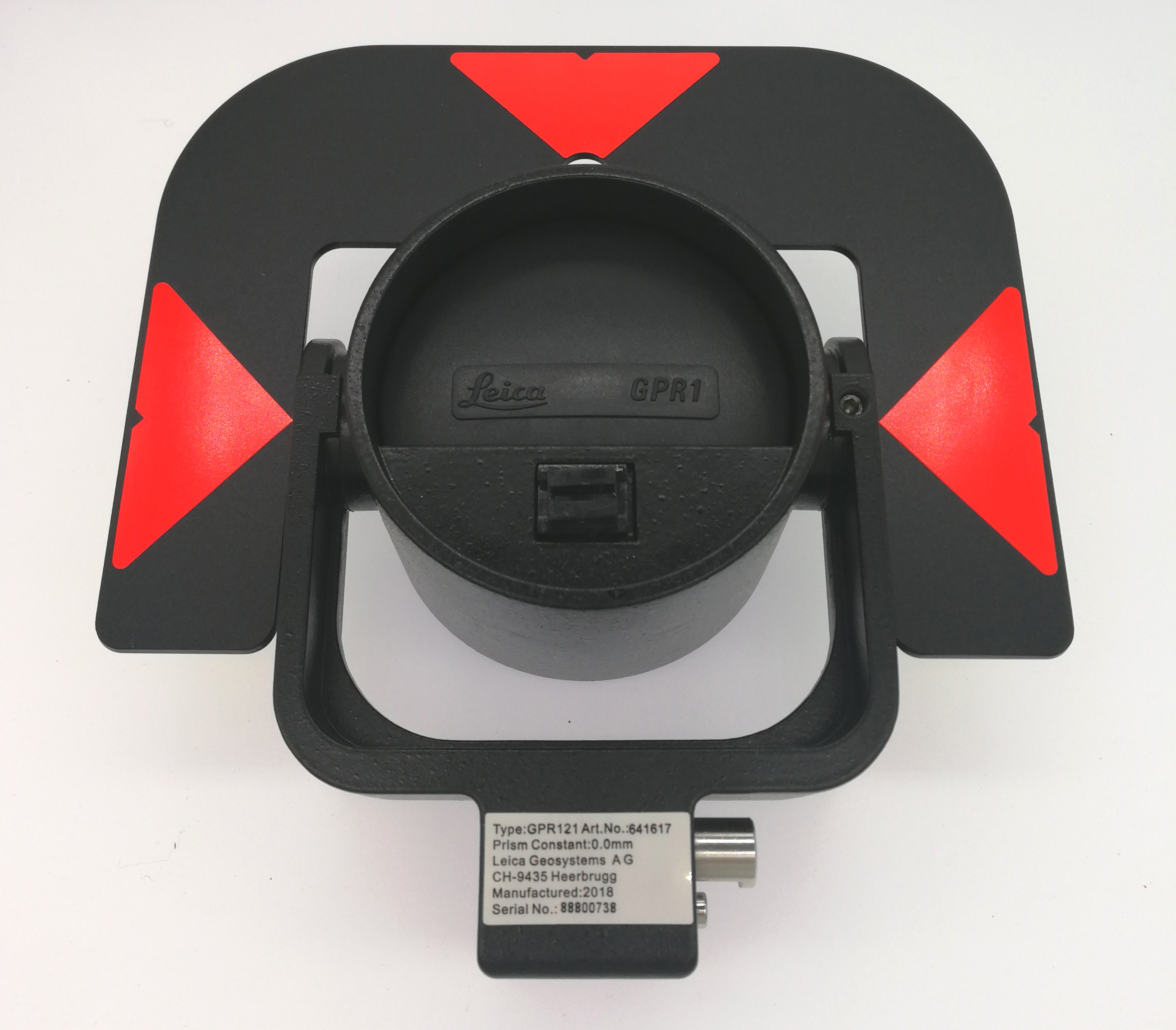

1pc Leica GPR121 Prism

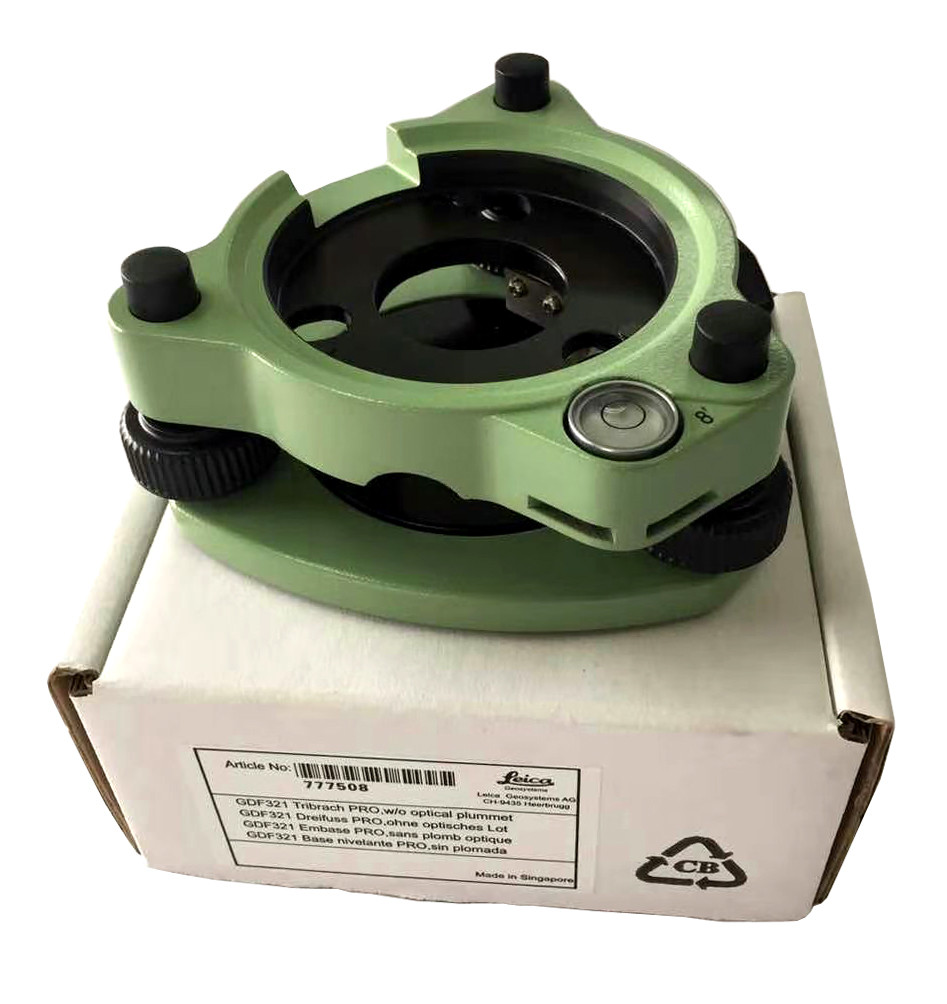

1pc Leica GDF321 Tribrach

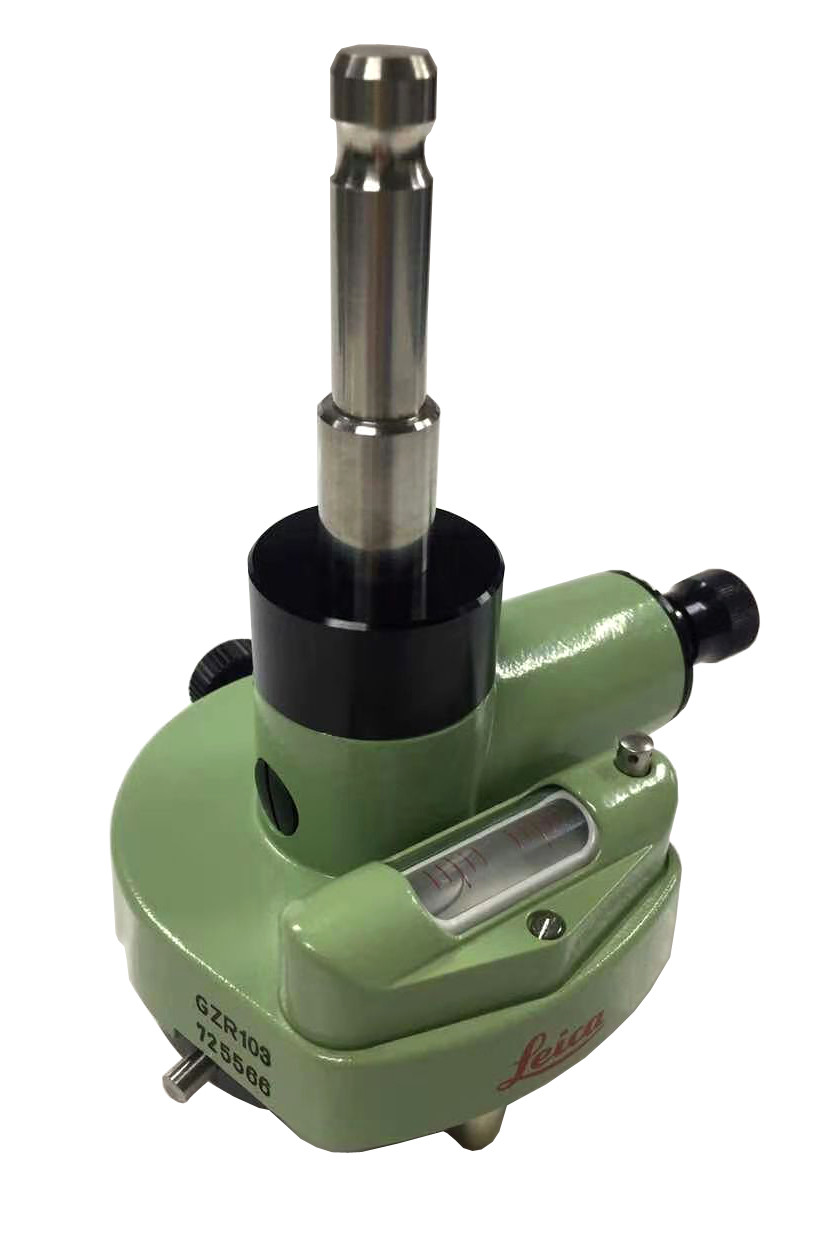

1pc Leica GZR103 Tribrach Carrier
1pc Carry Case
What is the offset of a Leica prism?
Similarly, if you are working with a 0mm offset prism (or reflective tape), you will need to add 34mm. You get the idea. Remember, with a Leica instrument the Prism Constant Field is actually the correction you need to enter relative to -34mm, NOT the actual prism constant (offset) of your prism.
How to set prism constants on a Leica lift?
SETTING PRISM CONSTANTS ON A LEICA TOTAL STATION First a primer on Prism Constants (also called Prism Offsets), more correctly called Absolute Prism Constants (APC). Refer to Figure 1 to understand that an EDM needs to be “told” what prism you are using to correctly calculate the distance to the Vertical Axis of the prism.
Prism Target Set
Care of the Target Set
A. Cleaning.
1. Clean the plate level and circular bubble with lens paper. If necessary, moisten a cotton ball or swab with ether or pure alcohol. Never use liquids such as benzene, oil, or water
2. Wipe paintwork clean. If necessary, use a cloth dampened with water. Never use liquids such as benzene
3. Wipe a wet instrument carefully with a dry, lintfree cloth. Let the instrument dry completely before placing it back in the case. Never store a wet instrument in its case.
4. Keep the case clean, inside and out. Keep the inside dry. If water gets into the case, wipe it and leave it open to dry completely.
B. Storage and Transport.
1. The target set should not be stored inside the shipping case, remove the instrument from the case so that air can flow around it. This helps to prevent mildew and fungus in the case and instrument. Store the instrument in a low humidity, dust proof area.
2. The target set is shipped and transported in the foam rubber padded transportation cases.
C. Adjustments and Calibration.
1. Test the target set on a regular basis. Adjustments made to a theodolite are useless if the target sets are not properly adjusted.
2. Calibration and repairs for the target set will be conducted through the Survey Instrument Calibration Program (SICP).
