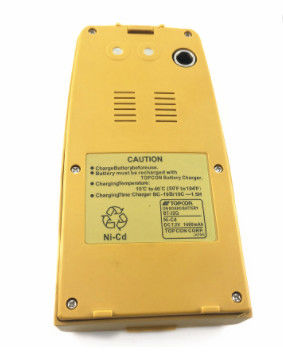

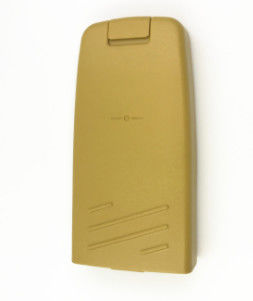

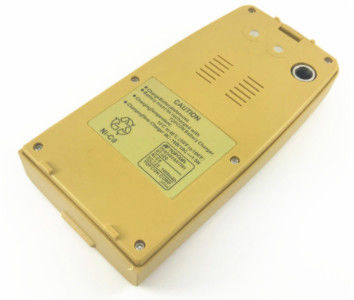

BT-32Q Surveying Instrument Battery For Topcon GTS-220/210/200/GPT-1003 Total Station
Capacity | 2100mAh | Voltage | 7.2V |
---|---|---|---|
Size | 140*80*55 (mm) | Weight | 340g |
Type | Ni-Mh | Temperature | 10~40 °C |
Charger | BC-19B | Used For | Topcon Total Station |
Color | Yellow | Condition | New |
BT-32Q Surveying Instrument Battery For Topcon GTS-220/210/200/GPT-1003 Total Station
Model: BT-32Q
Specifications:
Voltage | 7.2V |
Dimension | 140*80*55 (mm) |
Type | Ni-Mh |
Capacity | 2100mAh |
Weight | 340g |
Package | Individual Box Package |
Warranty | 1 Year |
Temperature | 10~40 °C |
Charger | BC-19B |
Rechargeable | Yes |
Used For | TOPCON Digital Levels |
Compatible With the Instruments:
GTS-220 | GTS-210 | GTS-200 |
GPT-1003 | GPT-2000 | GPT-3000 |
CTS-3000 | GTS230W |
Overview:
- NIMH Chemistry
- 7.2 volts
- 2100 mAh
- OEM Compatible
- The Topcon BT-32Q Battery Replacement provides up to 800 discharge/charge cycles.
- Your new Topcon BT-32Q Battery Replacement comes in a discharged condition and must be charged before use (refer to your manual for charging instructions).
- The Topcon BT-32Q Battery Replacement prefers a partial rather than a full discharge. Frequent full discharges should be avoided when possible.
- Keep the Topcon BT-32Q Battery Replacement cool and store only in a cool, dry location.
- The Topcon BT-32Q Battery Replacement is Quality Tested and RoHS & CE Certified.
Tips
A. Please take battery out of machine if it has not been used for a long time.
B. Do not put battery with key and other metal together to avoid short circuit and causing a fire.
C. When the battery is discarded, please don’t throw it in the trash tin.
D. Keep the battery dry, avoid water and humidity, and keep it out of the reach of children.
E. No taking apart
Cell Type
Most survey batteires currently use nickel-cadmium (NiCd), nickel-metal hydride (NiMH) and Lithium Ion (Li-Ion) cells. The cell type is marked on the battery.
NiMH
NiMH cells have a higher internal resistance than NiCd cells and are therefore not suitable for such high charging and discharging currents, or low temperatures as NiCd cells. The voltage of the battery collapses rapidly at negative temperatures and high current loading. This can result in the activation of the deep discharge protection fitted in all Leosurvey batteries.
How to Charge Battery
Initial Charging: When you first get your battery you should charge it until your charger or device indicates that it is fully charged. If your device/charger does not indicate whether or not it is fully charged, then check your device/charger manual for charging times. It can take 1-12 hours to fully charge depending on the chemistry of your battery and the type of device and charger. After that it is good to charge it as needed while making sure you do not leave it at a low charge level for long periods. Also, please keep in mind that it can take 2-4 initial full charges/discharges before a new battery begins to provide maximum performance/runtime.
Recharging: Your battery was designed to be charged regularly and should NOT be left at a low charge level for long periods. You should charge it as often as needed to prevent the charge level from getting much below 15% of full.
Charging During Storage: During storage your rechargeable battery will trickle discharge naturally (or slowly lose its current charge). Long storage periods can permanently diminish the overall life of the battery especially when the battery is left at a low charge level for too long. If you will be storing your battery for a long period of time, be sure NOT to store it at a low charge level. Bring the charge level up to full before storage and then top off the charge level as needed during storage (to prevent it from sitting too long at low charge). It is highly recommended, even during storage, that you charge the battery regularly to prevent the possibility of the battery sitting at low charge for too long (sitting at low charge for too long will cause deep discharge which can permanently damage the cells and render the battery useless). Damage from deep discharge is NOT a defect and therefore it is not covered by warranty. For rechargeable lithium batteries in storage (including lithium ion and lithium polymer), a full recharge might be needed every 3-6 months. For rechargeable nickel batteries in storage (NICD and NIMH), a full recharge might be needed every 1-2 months. Nickel batteries trickle discharge in storage faster than lithium batteries.
