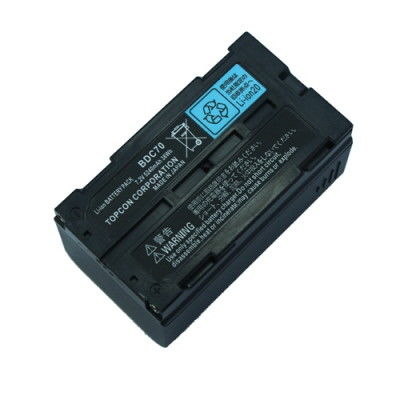

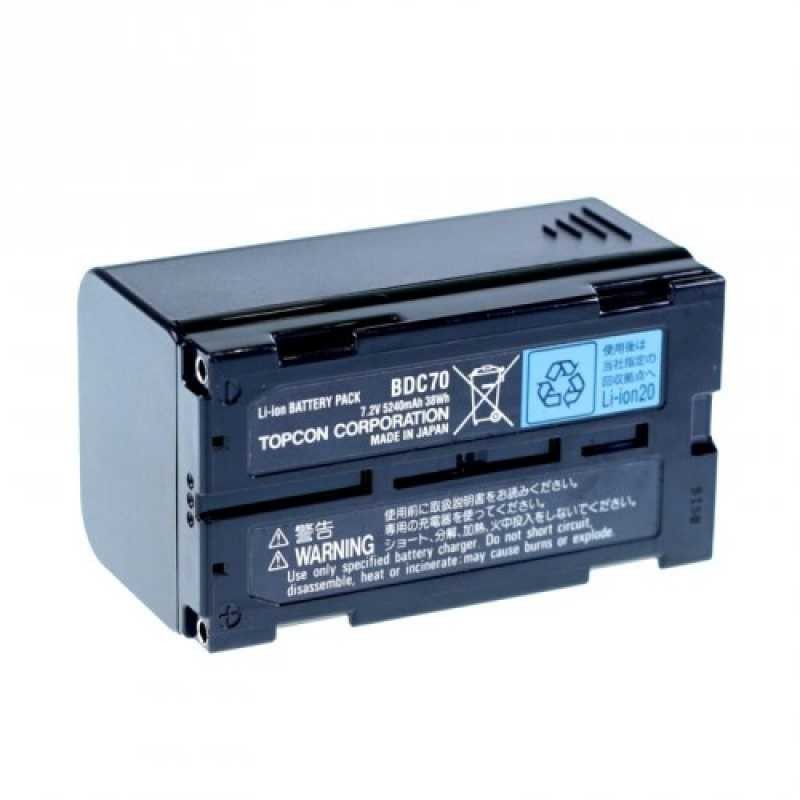

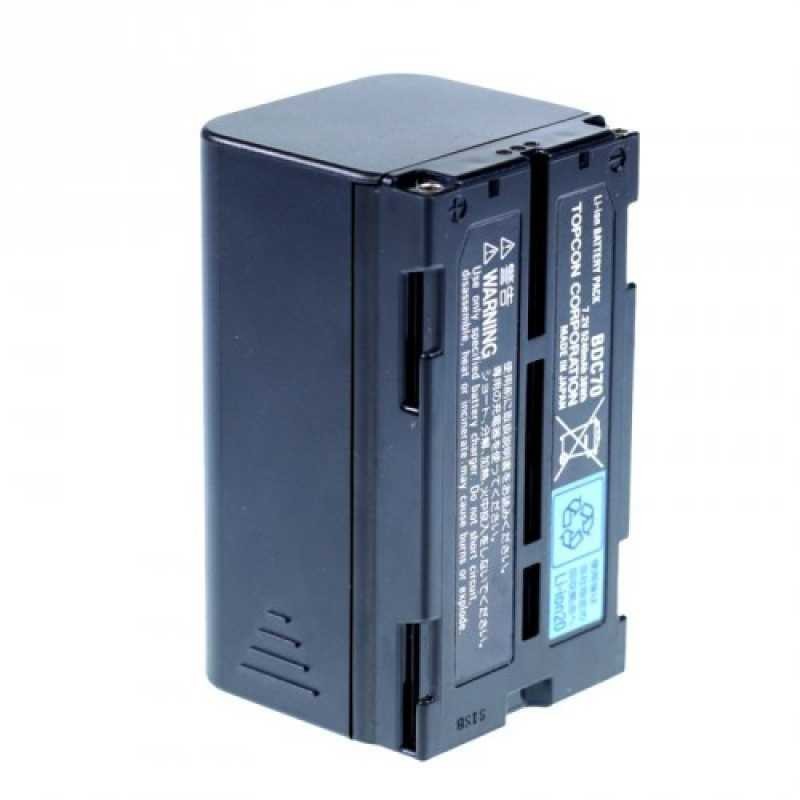

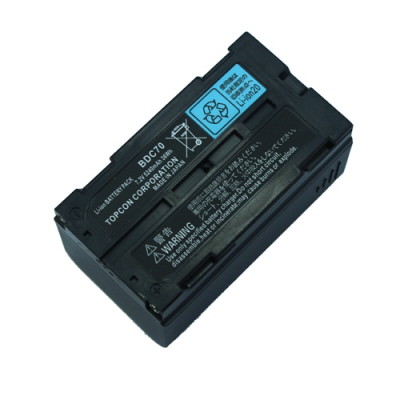

BDC70 7.4V 5200mAh Total Station Batteries For Sokkia CX
Voltage | 7.4V | Size | 74mm X 41mmx 41mm |
---|---|---|---|
Capacity | 5200mAh | Weight | 204g |
Charging Time | 4 Hours | Charger | CDC68, CDC68D And CDC77 |
Cell Type | Li-lon | Color | Black |
Temperature | 10~40 °C | Condition | New |
High Light | 5200mAh Total Station Batteries,BDC70 Total Station Batteries,Black 7.4V Total Station Batteries |
Topcon Battery BDC70 7.4V 5200mAh for Sokkia CX, FX Total Station and ES, OS Total Station
Specifications:
Voltage | 7.4V |
Dimension | 74mm x 41mmx 41mm |
Type | Li-lon |
Capacity | 5200mAh |
Weight | 204g |
Package | Individual Box Package |
Warranty | 1 Year |
Temperature | 10~40 °C |
Charger | CDC68, CDC68D and CDC77 |
Charging Time | 4 Hours |
Rechargeable | Yes |
Used For | Topcon and Sokkia Total Station |
Used For:
Topcon CX/ FX Total Station and Sokkia ES,/OS Total Station
Features:
- Long battery life.
- Reliable supply of power in the field.
- Batteries and chargers compatibly matched.
- Quick charging of batteries.
- Prevention of the memory effect in batteries.
- Trickle charging after completion of charging.
- Microprocessor controlled and monitored charging.
Battery Life
The life of batteries is primarily defined by the following factors: • Electrical loading • Charging method • Temperatures on charging, discharging and storage • Quality of the cells Losses in capacity caused by incorrect chargingReduction in battery capacity is normally due to age. However it can also be the result of storage at excessively low or high temperatures.
Storage
Leosurvey batteries can be stored at –40 °C to +55 °C (–40 °F to +131 °F). Do not store batteries inside the surveying instrument. After storage, charge the battery fully before use. NiCd NiCd batteries can be stored for an unlimited period in any state of charge. NiMH NiMH batteries must always be stored fully charged and recharged after 180 days at the latest. High temperatures and high atmospheric humidity accelerate self-discharging. We recommend storage in the range from 0 °C to +20 °C (+32 °F to +68 °F) in a dry environment. If NiMH batteries are stored in the discharged state for an extended period irreversible damage can be caused. Li-Ion Li-Ion batteries start to deteriorate from manufacture. To reduce the aging effect, store the battery in a cool place at 10%–50% state-of-charge. Li-Ion batteries do not require regular charging while in storage.
