30mm Total Station Batteries BC DTM 352B 3800mAh NIMH Chemistry
Voltage | 7.2V | Cell Type | Ni-Mh |
---|---|---|---|
Capacity | 3800mAh | Size | 170*66*30(mm) |
Used For | Nikon DTM-352B DTM-332 DTM-350 | Condition | New |
Temperature | 10~40 °C | Color | Green |
High Light | 30mm Total Station Batteries,BC DTM Total Station Batteries,DTM-352B |

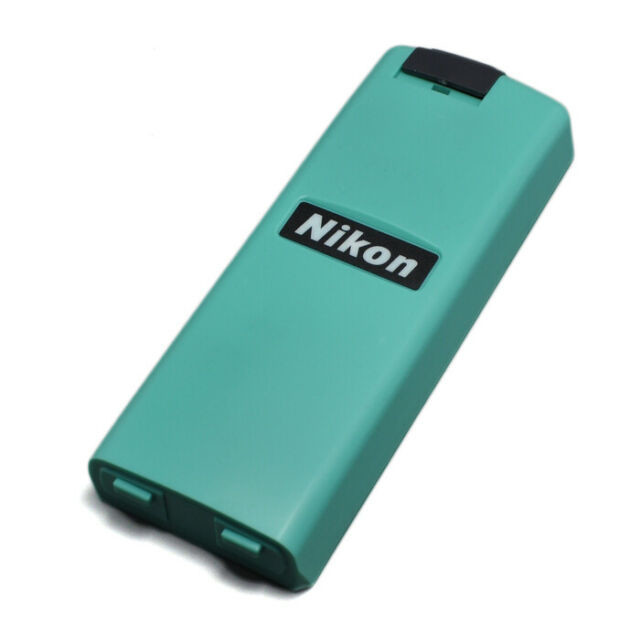

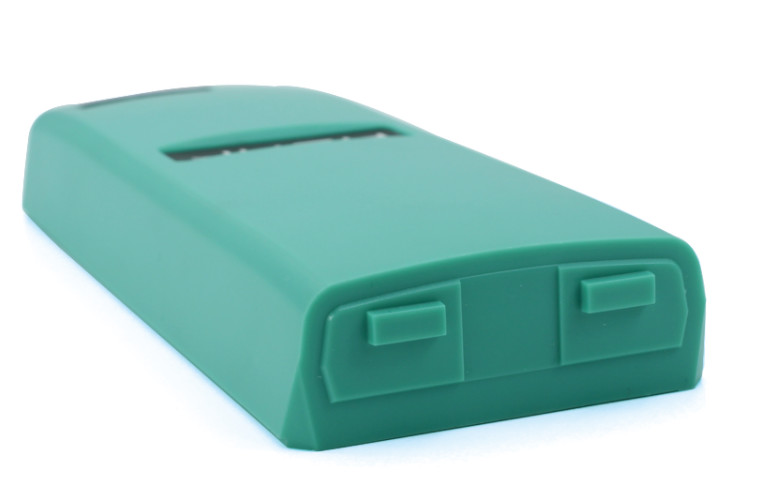

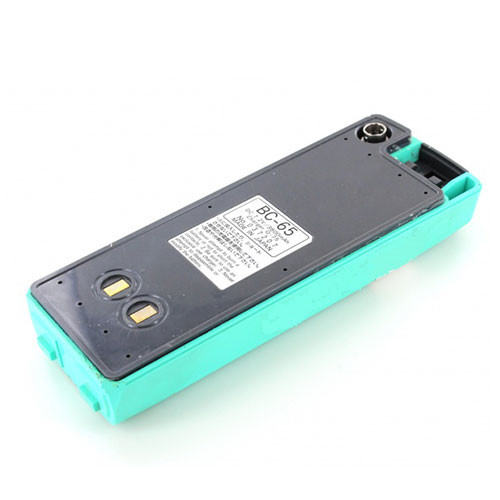

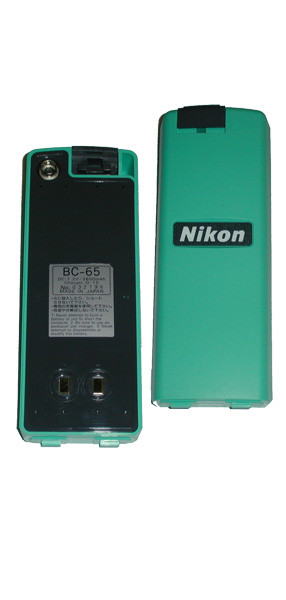

Nikon Total Station Battery BC-65 for Nikon DTM-352B DTM-332 DTM-350
Model: BC-65
Specifications:
Voltage | 7.2V |
Size | 170*66*30(mm) |
Type | Ni-Mh |
Capacity | 3800mAh |
Package | Individual Box Package |
Warranty | 1 Year |
Temperature | 10~40 °C |
Used For | Nikon DTM-352B DTM-332 DTM-350 |
Introduction:
- NIMH Chemistry
- 7.2 volts
- 3800 mAh
- OEM Compatible
- The Nikon BC-65 Battery Replacement provides up to 800 discharge/charge cycles.
- Your new Nikon BC-65 Battery Replacement comes in a discharged condition and must be changed before use (refer to your manual for charging instructions).
- The Nikon BC-65 Battery Replacement prefers a partial rather than a full discharge. Frequent full discharges should be avoided when possible.
- Keep the Nikon BC-65 Battery Replacement cool and store only in a cool, dry location.
- The Nikon BC-65 Battery Replacement is Quality Tested and RoHS & CE Certified.
Fits the Models:
DTM-352, DTM-332, DTM-350, DTM-452C,
DTM-352C, NPL-352C,
NPR-352C, NPR-362, NPR-452C
Charging the batteries
New and stored batteries
New NiCd and NiMH batteries reach their maximum capacity only after a few charging and discharging cycles. The batteries should be fully discharged and charged three to five times. NiMH batteries that have been stored and not used for an extended period (more than a month) should be refreshed simularly. For Li-Ion batteries, a single discharging and charging cycle is sufficient.
Batteries in regular use
After use the battery can be placed in the charger until fully charged (the green light flashes). The charging time depends on the battery capacity and temperature.
Charging temperature
The charging temperature (ambient temperature) has a significant impact on the life of the batteries. Charging at high temperature can cause loss of capacity. These losses in capacity are irreversible. Even with several charging and discharging cycles, the original capacity can no longer be obtained. For optimal charging, we recommend that the batteries be charged at ambient temperatures as low as possible (+10 °C to +20 °C / +50 °F to +68 °F). The permitted temperature range in which charging can still be performed is between 0 °C and +35 °C (+32 °F and +95 °F).
