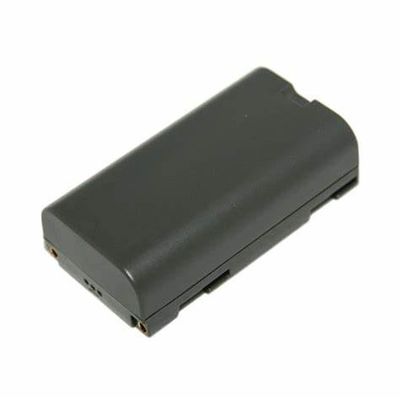

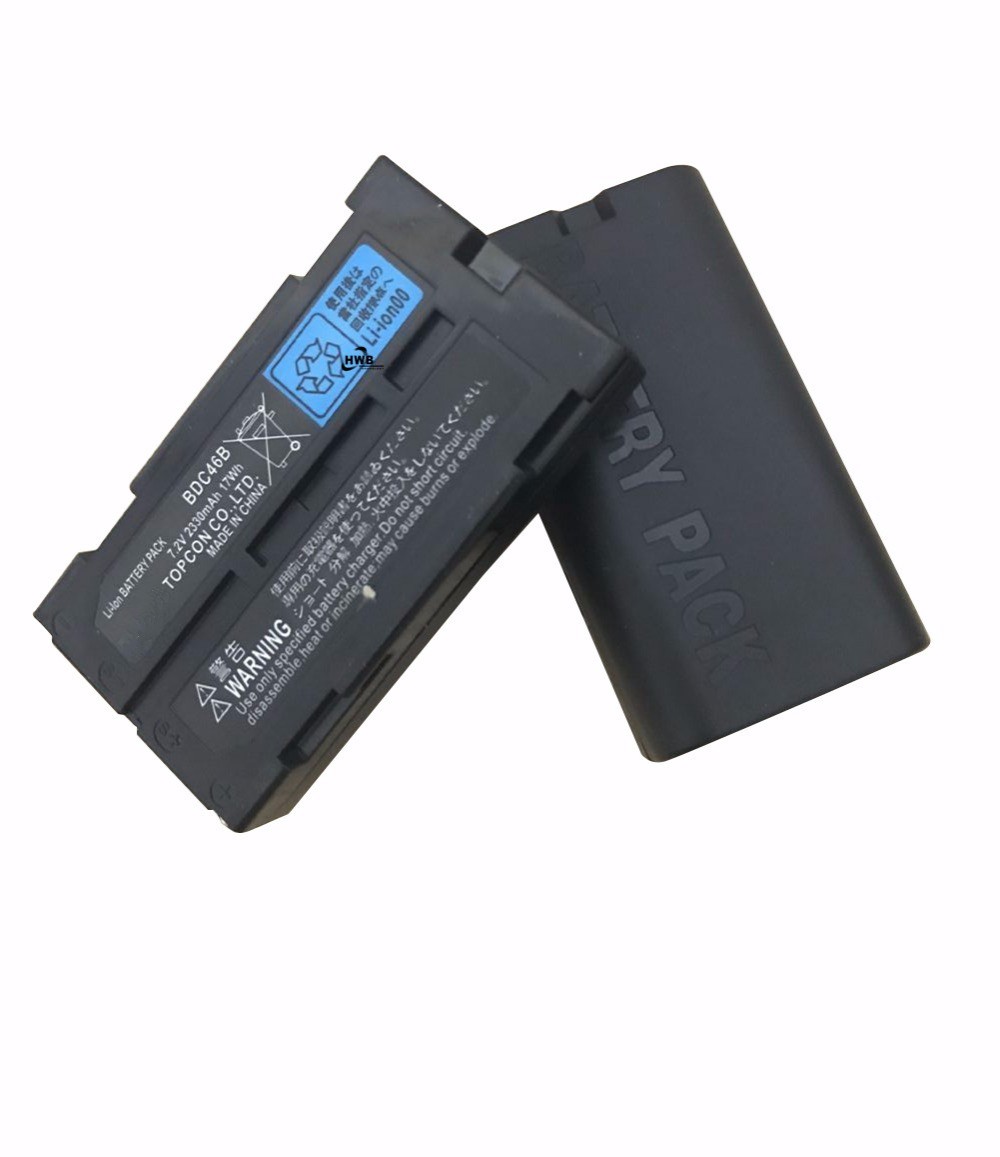

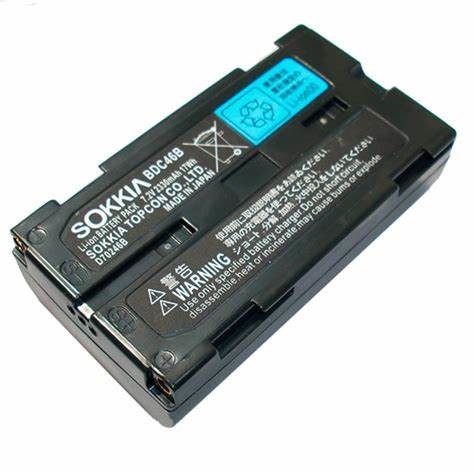

Replacement Sokkia BDC46B 7.2V 2600mAh For Total Station SET610 210 310

Replacement Sokkia BDC46B 7.2V 2600mAh For Total Station SET610 210 310

Model: BDC46B

Introduction

• Lithium Ion Chemistry
• 7.2 volts
• 2600 mAh
• OEM Compatible
• Integrated Power Management Circuits - protect against over-voltage and under-voltage conditions and maximizes battery life between charges, minimizes charging times, and improves overall battery life.
• The SOKKIA BDC46B Battery Replacement provides 300-500 discharge/charge cycles.
• Your new SOKKIA BDC46B Battery Replacement comes in a discharged condition and must be charged before use (refer to your manual for charging instructions).
• The SOKKIA BDC46B Battery Replacement prefers a partial rather than a full discharge. Frequent full discharges should be avoided when possible.
• Keep the SOKKIA BDC46B Battery Replacement cool and store only in a cool, dry location

Used For Instruments:

Sokkia SET/NET 210/510/610 Total Station

Specifications:

Condition when delivered

NiCd For safety reasons, the batteries are only dispatched from the factory in a discharged state. In this way, in the case of misuse or damage to the battery, hazardous conditions or physical damage caused by a large amount of stored energy are prevented. NiMH For safety reasons, damage free storage and shipment, the batteries are dispatched with a minimal quantity of energy. NiMH batteries must not be stored in a discharged state. The batteries should therefore be fully charged as soon as possible once received. Li-Ion For safety reasons, damage free storage and shipment the batteries are dispatched with a minimal quantity of energy.

Charging the batteries

New and stored batteries

New NiCd and NiMH batteries reach their maximum capacity only after a few charging and discharging cycles. The batteries should be fully discharged and charged three to five times. NiMH batteries that have been stored and not used for an extended period (more than a month) should be refreshed simularly. For Li-Ion batteries, a single discharging and charging cycle is sufficient. Alternatively, the batteries can be charged and then placed in the related survey equipment during normal use and discharged until the equipment switches off.

Batteries in regular use

After use the battery can be placed in the charger until fully charged (the green light flashes). The charging time depends on the battery capacity and temperature.
