FOIF Rtk Gnss Receiver A60 Trimble Rtk Receiver WIFI

Place of Origin China
Brand Name FOIF
Certification ISO
Model Number A60 Pro
Minimum Order Quantity 1 Piece
Price 2000USD~3500USD
Packaging Details Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 100 pieces per month
Product Details
Model A60 Pro RTK(<30km)Accuracy H:8 Mm + 1 Ppm V:15 Mm + 1 Ppm
DGPS H:0.25 M + 1 Ppm V:0.50 M + 1 Ppm SBAS 0.5m (initialization Time < 10s, Initialization Reliability > 99.9%)
Post Processing Accuracy Static H:±(2.5+1×10-6×D) Mm V:±(5+1×10-6×D) Mm GNSS Engine Trimble BD930 (220 Channels)
Size 12.5*13.5cm Weight 1.35Kg With Battery
Internal Memory 4GB, Up To 400 Hours Of 15 Sec Battery BT96 Li-ion
External Power Supply 10~15 VDC Input Battery Charger FOIF FDQ-01 And FDQ17-02
High Light

FOIF rtk gnss receiver


A60 rtk gnss receiver


A60 trimble rtk receiver

Leave a Message
Product Description

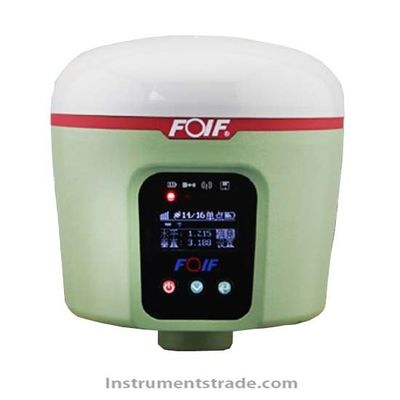

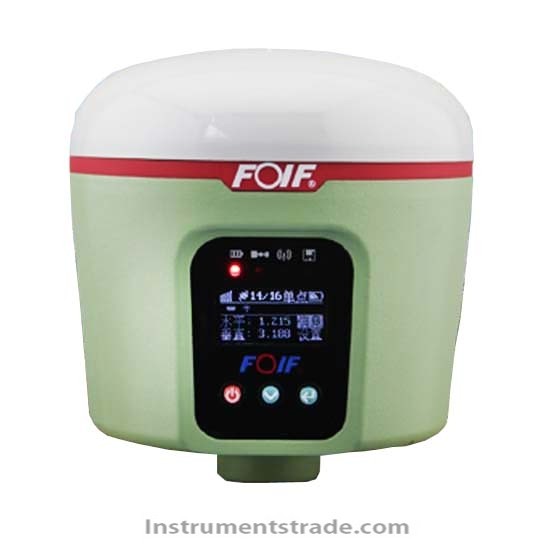

Surveying Instrument FOIF A60 GNSS RTK Receiver with WIFI


Model: A60 Pro



New generation receiver--- Compact, lightweight and handling! Work anywhere and anytime!



Model A60pro
RTK(<30km) Accuracy

H:8 mm + 1 ppm

V:15 mm + 1 ppm


H:0.25 m + 1 ppm

V:0.50 m + 1 ppm

SBAS 0.5m (initialization time < 10s, initialization reliability > 99.9%)
Post Processing Accuracy Static

H:±(2.5+1×10-6×D) mm

V:±(5+1×10-6×D) mm

GNSS Engine Trimble BD930 (220 channels)
Size 12.5*13.5cm
Weight 1.35Kg with battery
Internal Memory 4GB, up to 400 hours of 15 sec
Battery BT96 Li-ion
External Power Supply 10~15 VDC input
Battery Charger FOIF FDQ-01 and FDQ17-02



1) Smart Design

With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot.

2) Brand new idea:

In terms of cellular mobile and wireless system, we tend to introduce more and more creativities into our product. Besides a set of bluetooth, wireless radio and mobile network, we bring in the WIFI function which quite broaden data communications for GNSS.

3) Excellent performance:

Embedded with high-sensitivity GNSS module , A90 can implement massive surveys:

RTK, DGPS, (SBAS) , Static, etc.




Product Details:

GNSS Engine
Trimble BD930 (220 channels)
Fully independent code and phase
Advanced multipath mitigation
Update rate: 1,2,5,10,20 Hz Selectable
- GPS: L1 C/A,L2E,L2C,L5
- Beidou: B1,B2

Real-Time Accuracy (rms)
Horizontal: <3 m (10 ft)
2)Real-Time DGPS position
25 cm (0.82 ft)+ 1.0 ppm (rms) in typical
3)Real-Time Kinematic Position (fine mode)
Horizontal 8 mm(0.03ft) + 1.0 ppm
Vertical 15 mm(0.05ft) + 1.0 ppm

Real-Time Performance & Stop and Go solution
1)Instant-RTK Initialization
Typically <10 s (Initialization for
baselines < 20 km)
99.9% reliability
2)RTK Initialization range >40 km

Post Processing Accuracy (rms)
Static, Rapid Static
1)Horizontal 2.5 mm (0.008 ft) + 1.0 ppm
2)Vertical 5 mm (0.016 ft) + 1.0 ppm
Post-Processing Kinematic
1)Horizontal 10mm(0.033 ft) ± 1.0 ppm
2)Vertical 20mm(0.066 ft) ± 1.0 ppm

Field Software Suite
FOIF Survey ,FOIF FieldGenius or Carlson SurvCE

Main functions include:
1)A60 GNSS Support: configuration,
monitoring and control
2)Volume computation
3)Background raster image
4)Network connectivity
5)Coordinate System Support: predefined
6)grid systems, predefined datums,
projections, Geoids, local grid
7)Map view with colored lines
8)Geodetic Geometry: intersection,
azimuth/distance, offsetting, poly-line,
curve, area
9)Road Construction(3D)
10)Survey Utilities: calculator, RW5 file
11)Data import/Export: DXF, SHP, RW5

Data logging
Recording Interval
1- 60 seconds

Unit: 12.5x13.5 cm(? x H)
Rover:1.2kg (W/O battery)
1.35kg (With battery)

Monitoring Screen
Graphical OLED display resolution


Internal memory: 4GB,up to 400 hours
of 15 sec. raw GNSS data from 18
satellites(expandable to 32GB)

I/O Interface
LEMO port X 1(RS232,USB,power)
TNC port X 1(radio)

Tilt survey sensor (Optional)
Automatic correct system by 30 degrees

Data Format
RTCM 2.x
RTCM 3.x
NMEA 0183 2.x ,3.0 and 4.1(optional)
RTCA (Optional)

RTK rover/base, post-processing
RTK Network rover: VRS, FKP, MAC
Point-to-Point GPRS through Real-time Data
Server Software (internal GPRS or external
cell phone)
LandXML(FOIF FieldGenius support)
Total Station support (FOIF FieldGenius)
Import and stake directly from a DXF File
(FOIF FieldGenius)

Office Software Suite:
FOIF Geomatics office

Main functions include:
1)Network post-processing
2)Integrated transformation and grid
system computations
3)Pre-defined datums along with use
-defined capabilities
4)Survey mission planning
5)Automatic vector processing
6)Least-squares network adjustment
7)Data analysis and quality control tools
8)Coordinate transformations

1)Operating temperature:
-30°C to +65°C(-22°F to 149°F)
2)Storage temperature:
-40°C to +75°C(-40°F to +167°F)
3)Humidity: 100% condensing
4)Waterproof: IP67(IEC60529)
5)Shock: 2 m (6.56 ft) pole drop
1)Battery: BT96 Li-ion
&life time:3.4Ah(>8hrs)
(UHF rover at 20°C)
2)External power supply 10~15 VDC input
Battery Charger kit FOIF FDQ7

Optional System Components
1)Communication Module
2)Internal radio
-Satel UHF-Link(403-473MHz) Rx&Tx both
3)Rx&Tx internal radio
4)External radio
-FOIF external radio Rx & Tx(FDL-5, 5/35W selectable)
5)Network module
- HSPA+(3G):
800/850,900,AWS 1700,1900,2100MHz(Standard)

*1 Performance values assume minimum of five
satellites, following the procedures recommended
in the product manual. High-multipath areas, high
PDOP values and periods of severe atmospheric
conditions may degrade performance.
*2 Long baselines, long occupations, precise
ephemeris used.


FOIF Geomatics CAD
Main functions include:
1)DWG file format, compatible with AutoCAD
Integrated transformation and grid
system computations
2)Full 3D least squares adjustment, blunder
detection, graphical ellipse display
3)DTM contouring/Modeling volumes/3D rendering
4)Site Design: Ponds, ditches, stockpiles and slopes
5)Road Design: horizontal and vertical alignments,
cross sectional templates
6)Completely customizable user interface
-Toolbars - can be arranged with "drag and drop"
-Menus - can be re-organized with our graphical
menu editor
-Screen - items can be turned off for more
graphics area
-Layout - of command window - top or bottom
7)Reporting, exporting and printing
