Printed Crosshair Survey Mini Prism For Total Station Sheet
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini108-3 |
| Minimum Order Quantity | 10 Pieces |
| Price | 10USD~20USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ADSmini108-3 | Holder Material | Plastic/ABS |
|---|---|---|---|
| Holder Color | Yellow | Sheeting Diameter | 60mm |
| Sheeting Type | Diamond Pattern Crosshair | Offset | 2mm |
| Height | 86mm | Distance | 150m |
| Thread | 5/8x11 Female Thread | Usage | Tunnel Monitoring |
| Highlight | Crosshair Survey Mini Prism,Sheet Survey Mini Prism,Crosshair mini prism for total station |
||
Product Description

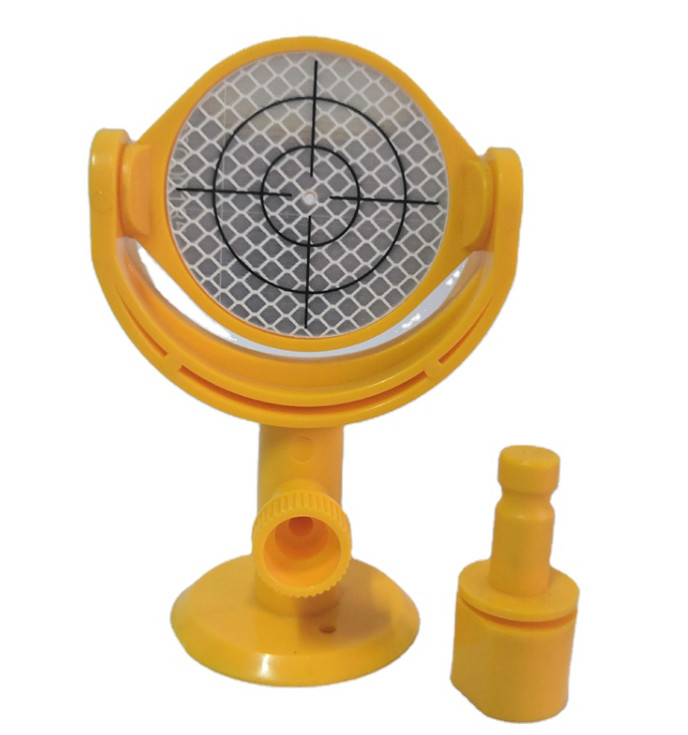

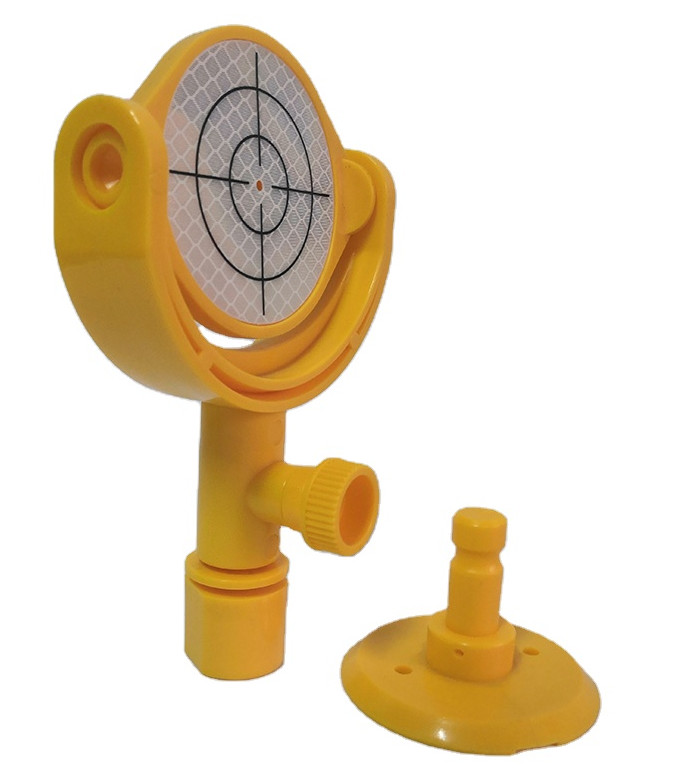

Tilting Yellow Reflector with Printed Crosshair Diameter 60mm Sheet Mini Prism For Total Station
Model: ADSmini108-3
Specifications:
| Model | ADSmini108-3 |
| Holder Material | Plastic/ABS |
| Holder Color | Yellow |
| Sheeting Diameter | 60mm |
| Sheeting Type | Diamond Pattern Crosshair |
| Offset | 2mm |
| Height | 86mm |
| Thread | 5/8x11 female thread |
| Distance | 150m |
| Usage | Tunnel Monitoring |
Introduction:
• Features a 60 mm diamond pattern w/ Crosshairs sheeting and a 2 mm offset
• Use for distances up to 492 ft (150 m)
• Features an 86 mm height
Frame:
Precise and deliberately heavy bearing support of the film/prism carrier prevents accidental tilting and makes it nearly impossible. The signal-yellow colouring is ideal for the findability of the mark even with adverse lighting conditions.
Plastic Holder:
Frame material : Delrin, does not absorb any water and therefore prevents "swelling" of the mark. Reliable clamp-mounting on every 12 mm pin (compatible with WILD devices) by means of a rugged clamping screw.
Thread:
5/8x11 female thread
