2000m Monitoring Mini Prism Survey
|Used With||Automated Total Station (AMTS)||Application||Tunnel Walls, Building Facades, Foundation Slabs, Bridge Decks|
2000m mini prism survey,
ADS104 mini prism survey,
2000m monitoring mini prism

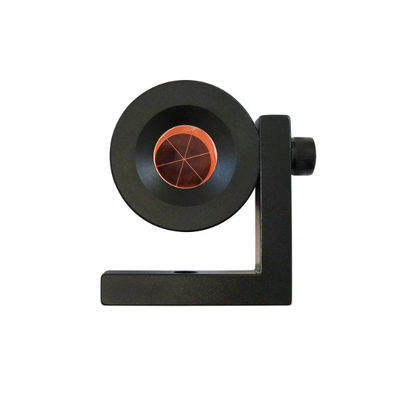

Monitoring Mini Prism with L-Bar For Automated Total Station
Prism Constant: 8.92mm
Prism Diameter: 25.4mm
Mini monitoring prism mounted in metal holder.
Supplied with L-bar for fixed installations.
The L-Bar Mini Prism is a compact and versatile optical target used with automated total stations (AMTS) to monitor displacements and deformations of structures.
Suitable for a wide range of applications, the L-Bar mini prism can be installed on tunnel walls, building facades, foundation slabs, retaining walls, and bridges decks.
Choose a location that provides a clear line of sight to the AMTS.
Determine the best orientation for the L-bar bracket, install the anchors, and mount the bracket.
Attach the prism to the bracket, rotate it to face the AMTS, and tighten the mounting screw.
1. High Performance:
Coated optics for better performance.
Prism is waterproof and dusproof, suitable for any environment.
3. Low Visual Impact:
The compact prisms are almost unnoticeable from street level.
4. Easy Installation:
The compact bracket can be installed in any orientation and fits nearly any location.
5. Cost Effective:
Economical prism provides low cost per monitored point.
