Nylon Circular Road Prism 600m Measurement Circular Prism
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini112-1 |
| Minimum Order Quantity | 5 Pieces |
| Price | 11USD~15USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 1000 pieces per month |
Product Details
| Model | ADSmini112-1 | Shape | Square |
|---|---|---|---|
| Color | Black | Body Material | Nylon Thermoplastic |
| Measure With | Total Station | Prism Diameter | 12.7mm |
| Prism Height | 9.6mm | Accuracy | 5 Arc Seconds |
| Max Measurement | 600m | Suits | All Total Station |
| High Light | 600m Measurement road prism,Nylon Circular road prism,600m Measurement circular prism |
||
Product Description
Surveying Road Mini Circular Prism Tunnel Prism for Total Stations, Mini Prism Applicable to Subway Monitoring
Model: ADSmini112-1
Specifications:
| Model | ADSmini112-1 |
| Shape | Square |
| Body | nylon thermoplastic |
| Measure with | Total Station |
| Prism Diameter | 12.7mm |
| Prism Height | 9.6mm |
| Accuracy | 5 Arc Seconds |
| Color | Black |
| Max Measurement | 600m |
| Suits | All total stations |
Features:
· Tunnel Prism for Total Stations Prism diameter: 12.7mm.

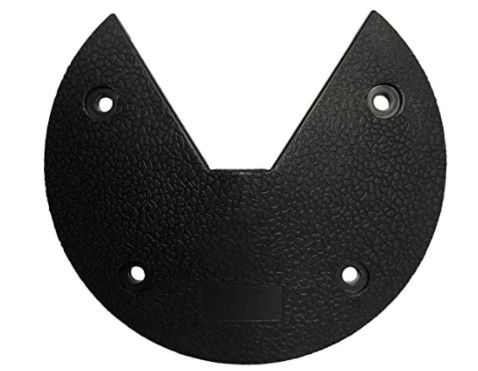

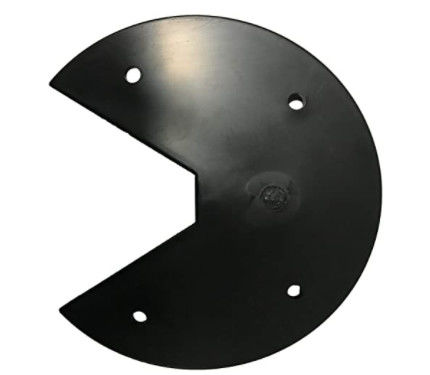

· The plastic holder is 15cm diameter
· Mini Prism Applicable Measuring range: 600m
· Mini Prism Applicable to Subway Monitoring Surveing Mini Prism
· Mini Prism With Carrying Case, Glass Protector
Overview:

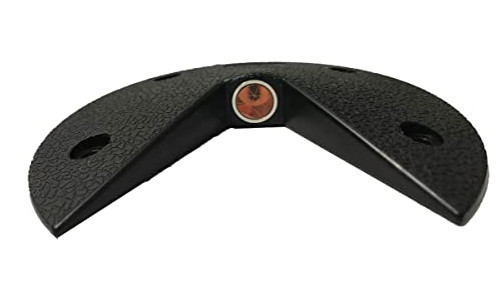

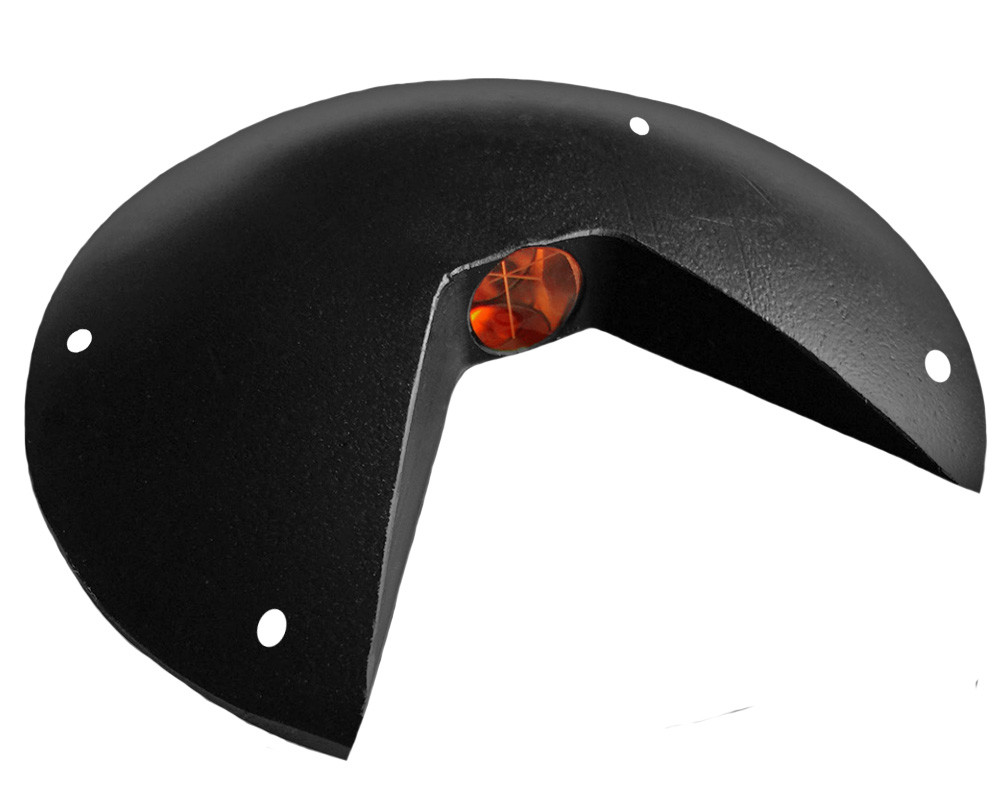

Leosurvey High Accuracy Single Road Monitoring Prism features a housing that is manufactured from a special nylon thermoplastic blend which offers superior strength and longevity, that provides substantial cost savings.
It contains a 12.7 mm high accuracy optical coated prism. It is extremely durable and designed to withstand highway traffic when adhered to roadway using any approved AASHTO rated adhesive.
The prism located inside the housing is angled at 10° with line-of-sight the AMTS.
The road prism can accommodate misalignments within ± 10°. For example, the 20° road prism is usable with angles between 10° to 30°.
The 10° road prisms are used with AMTS which are secured on tripods. 20° prisms are used with AMTS mounted on buildings 3 to 7 stories high, and 40° prisms are used with AMTS mounted on buildings 8+ stories high.
