Mini 1.8m Total Station Road 25.4mm Prism Pole Tripod Offset
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini103 |
| Minimum Order Quantity | 5 Pieces |
| Price | 30USD~35USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500sets per month |
Product Details
| Prism Constant | 0mm | Prism Diameter | 25.4mm |
|---|---|---|---|
| Deviation | 8" | Circular Bubble | 8′/2mm |
| Total Length | 1.8m | Rods Numbers | 3 |
| Each Rod Length | 60cm | Package | Soft Bag As Inner Pack |
| Used For | Total Station | Rod Material | Aluminium |
| High Light | mini 1.8m total station road,25.4mm Prism total station rod,mini 1.8m prism pole tripod |
||
Product Description
ADSmini103 1.8m 0 Offset Survey Mini Prism Set with 3 Rods for Total Station
Model: ADSmini103
Specifications:
| Model | ADSmini103 |
| Prism Constant | 0mm |
| Prism Diameter | 25.4mm |
| Prism Material | Metal canister |
| Deviation | 8" |
| Circular Bubble | 8′/2mm |
| Prism Holder Material | Plastic |
| Centering Rod | 3 pcs |
| Total Length | 1.8m |
| Rod Material | Aluminum |
| Rod Length | 60cm |
| Package | Soft Bag |
| Used For | Total Station |
Features of ADSmini103

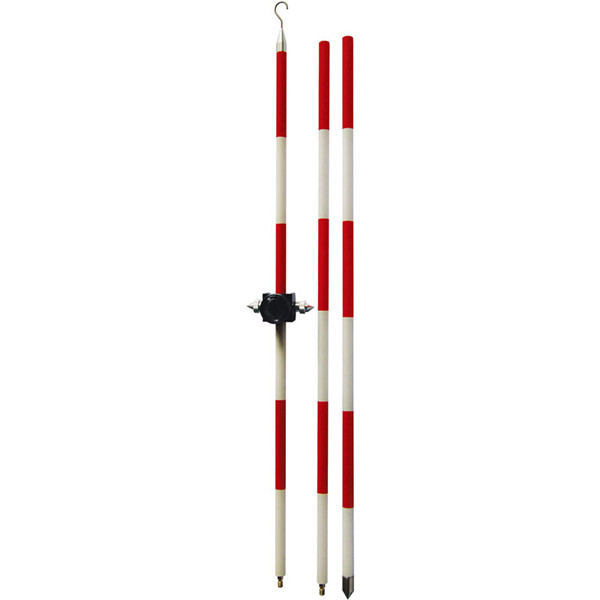

- It includes 25.4mm prism, a prism holder, a pothook, three hanging poles, a hanging pole bag and a mini prism bag.
- Every hanging pole is 0.6m. Three poles extended length is 1.8m.
- The mini prism system has an adjustable 0mm offset. Used in a vast range of applications.
- The set includes 3 sectional pin poles, each 600mm long, steel point and 25 mm ø mini prism with bubble and bag

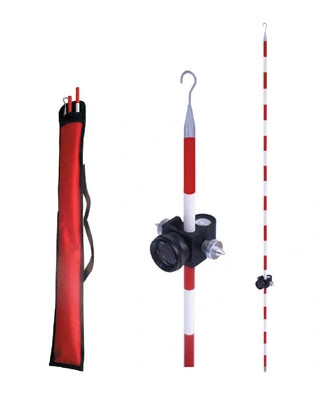

Package Included:
3pcs prism rods/poles
1pc mini prism
1pc bag
1pc prism holder
1pc pothook

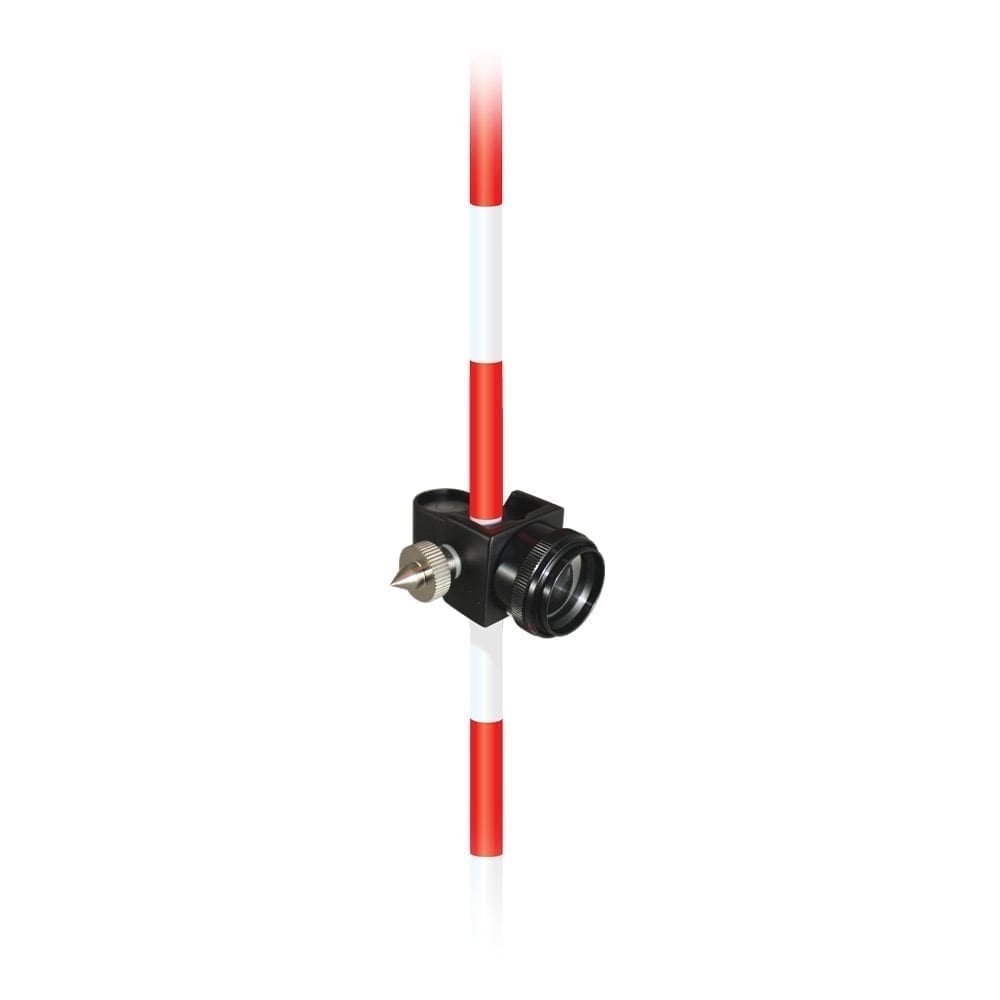

What is a mini prism?
Mini Prism is manufactured from highquality optical glass which is worked to strict specifications. All reflective surfaces are provided with a resistant coating so that the reflectivity is not adversely affected by dirt or condensation.
