Metal 25.4mm Mini Prism Pole Total Station Prism Pole
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini101-3 |
| Minimum Order Quantity | 5 Pieces |
| Price | 25USD~30USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ADSmini101-3 | Prism | Copper Coated |
|---|---|---|---|
| Prism Constant | -30 Mm | Prism Holder | 8’ Round Bubble Level |
| Prism Holder Material | Plastic | Centering Rod | 4 Pcs |
| Rod Material | Aluminium | Rod Length | 30cm |
| Used For | Total Station | Catagory | Total Station Accessories |
| Highlight | 30mm mini prism pole,Metal 25.4mm mini prism pole,25.4mm total station prism pole |
||
Product Description
ADSmini101-3 Offset -30mm with 4 Rods Total Station Accessory Mini Survey Prism Set
Model: ADSmini101-3
Specifications:
| Model | ADSmini101-3 |
| Prism Constant | -30mm |
| Prism | Copper Coated |
| Prism Diameter | 25.4mm |
| Prism Material | Metal canister |
| Prism Holder | 8’ Round Bubble Level |
| Prism Holder Material | Plastic |

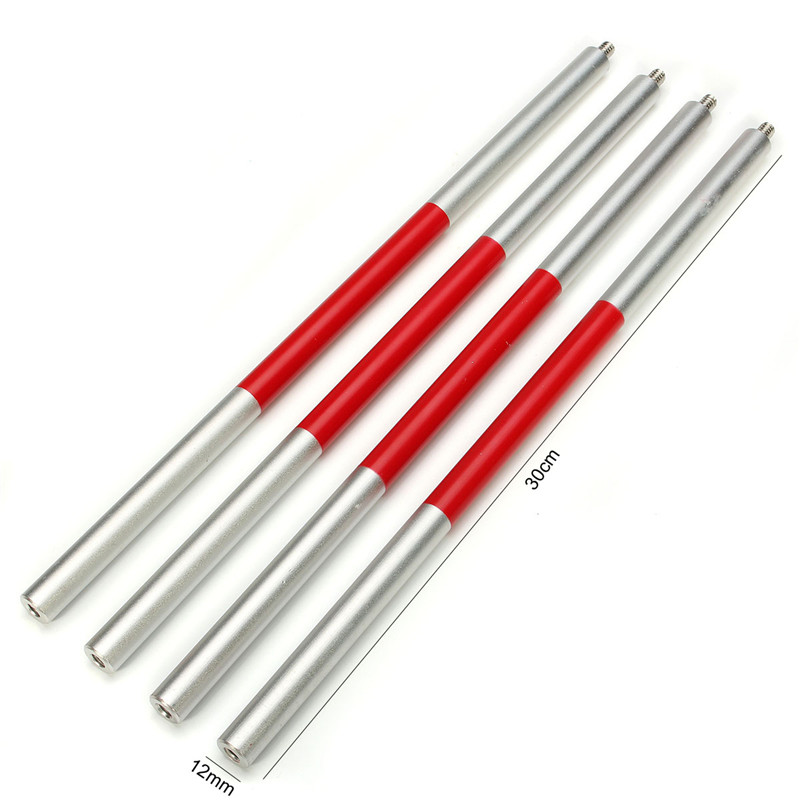

| Centering Rod | 4 pcs |
| Rod Material | Aluminum |
| Rod Diameter | 12mm |
| Rod Length | 30cm |
| Package | Soft Bag |
| Used For | Total Station |
Overview:
Brand New
Pole Material: Aluminium Alloy
Pole Diameter: 12mm
Prism Constant: -30mm
Mini Prism with 4 poles for total stations
25.4mm circle prism
Easy to use and carry
Soft bag package

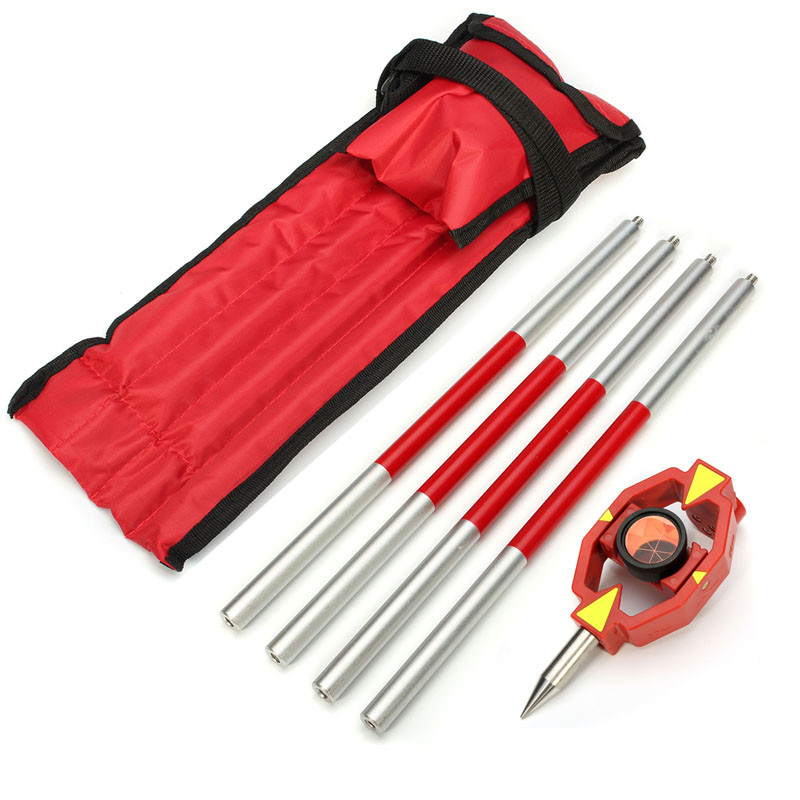

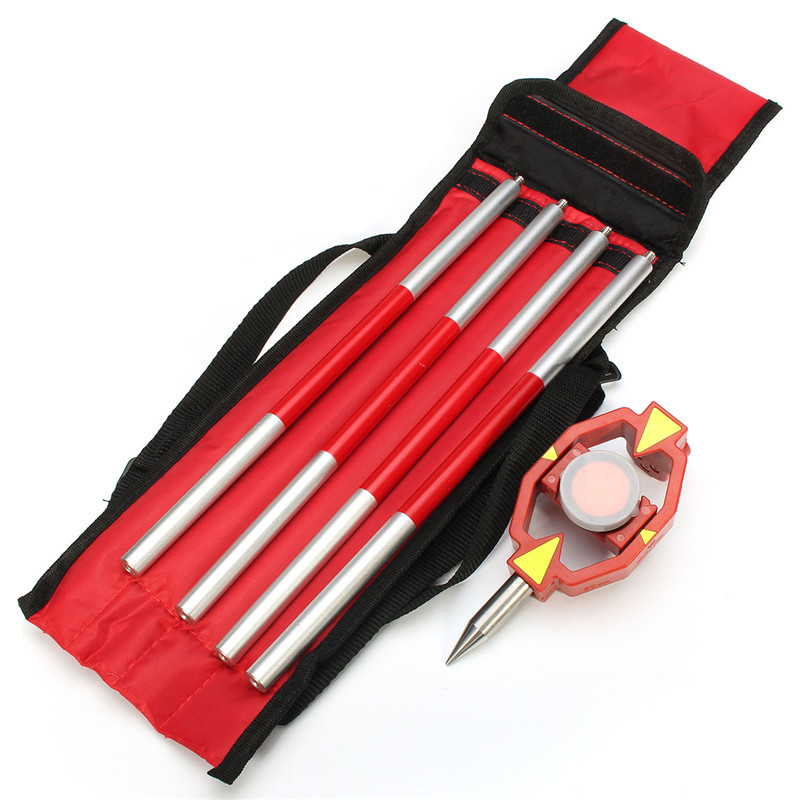

Package Included:
4pcs prism rods/poles
1pc mini prism
1pc bag
What is a mini prism?
Mini Prism is manufactured from highquality optical glass which is worked to strict specifications. All reflective surfaces are provided with a resistant coating so that the reflectivity is not adversely affected by dirt or condensation.
What is the best way to use a prism?
A precise tip will allow you to use a variety of prism heights — from mini to full-size. Just put the prism you want to use on the pole, and make sure it’s even for proper reading. For a more precise adjustment, it’s best to do it horizontally on the floor.
How are survey prisms different from mini prisms?
These survey prisms are compact and can be easily transported. Flat prisms are comparable to mini prisms in that they provide a similar distance range except with a dual-sided reflector. Finally, right angle prisms reflect angles of 90 or 180 degrees and make it possible to stake out right angles.
