Aluminium Survey Mini Prism 0mm Total Station Prism Pole
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini101-2 |
| Minimum Order Quantity | 5 Pieces |
| Price | 25USD~30USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500sets per month |
Product Details
| Model | ADSmini101-1 | Prism | Copper Coated |
|---|---|---|---|
| Prism Constant | 0 Mm | Prism Holder | 8’ Round Bubble Level |
| Prism Holder Material | Plastic | Centering Rod | 4 Pcs |
| Rod Material | Aluminium | Rod Length | 30cm |
| Used For | Total Station | Catagory | Total Station Accessories |
| High Light | 0mm Survey Mini Prism,Aluminium Survey Mini Prism,0mm Aluminium total station prism pole |
||
Product Description
ADSmini101-2 Constant 0mm Survey Mini Prism Set for Leica Topcon Sokkia Total Station 4 Sections
Model: ADSmini101-2
Specifications:
| Model | ADSmini101-2 |
| Prism Constant | 0mm |
| Prism | Copper Coated |
| Prism Diameter | 25.4mm |
| Prism Material | Metal canister |
| Prism Holder | 8’ Round Bubble Level |
| Prism Holder Material | Plastic |
| Centering Rod | 4 pcs |
| Rod Material | Aluminum |
| Rod Diameter | 12mm |
| Rod Length | 30cm |
| Package | Soft Bag |
| Used For | Total Station |

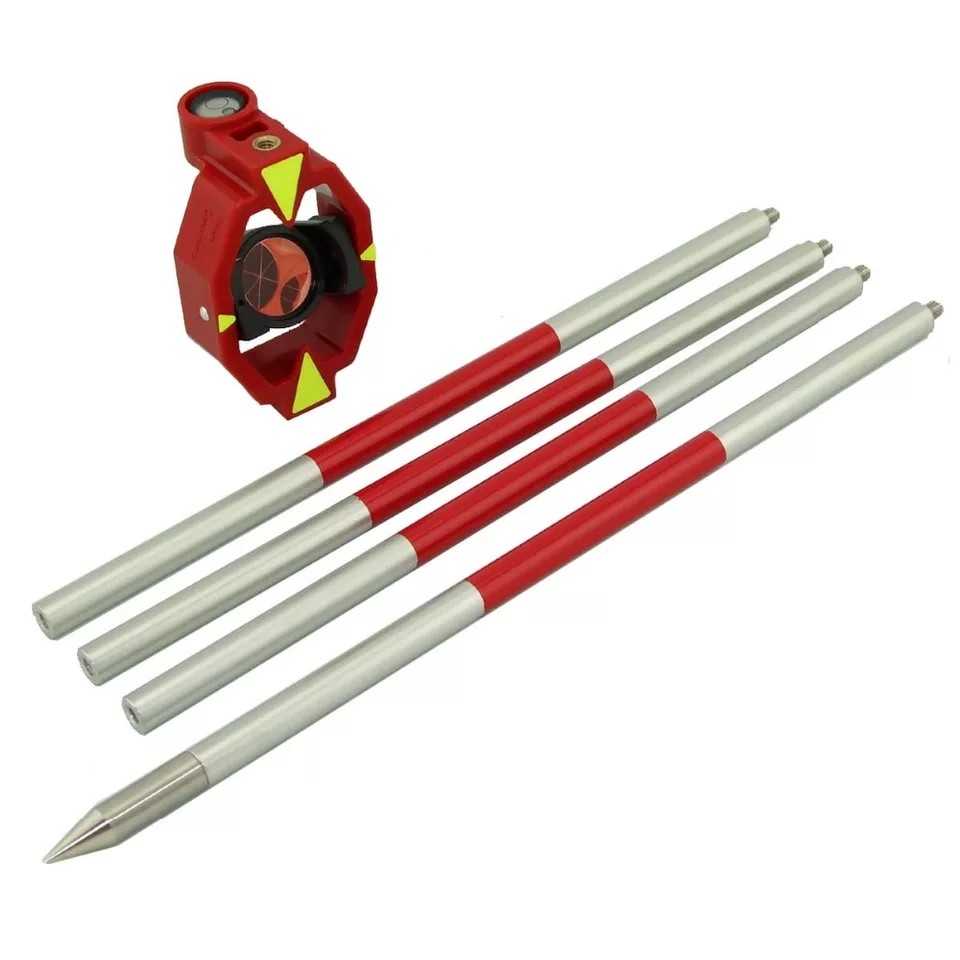

Item Contents:
1x Prism

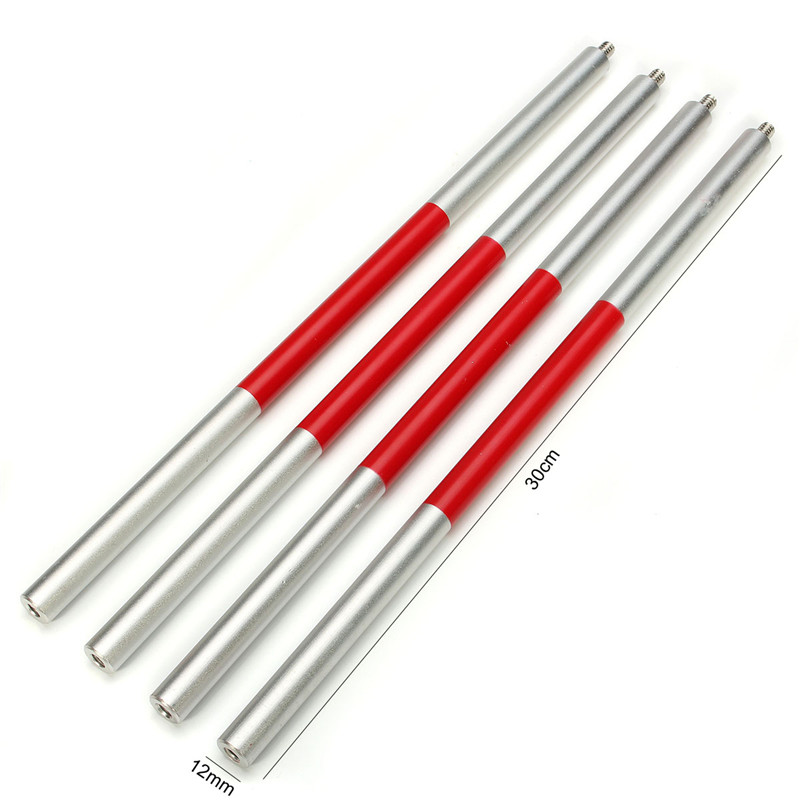

4x Poles (screw-on aluminium, permitting five prism heights - 10, 40, 70, 100 & 130cm
1x Spike
Introduction:

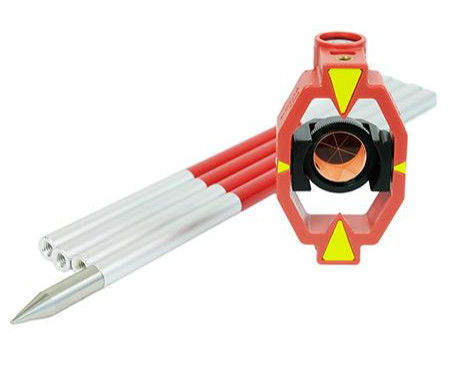

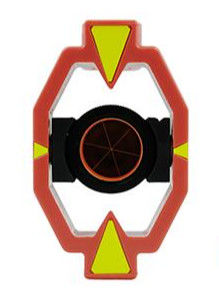

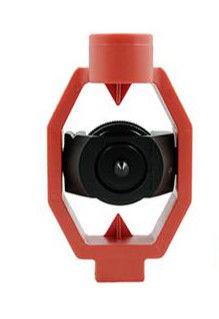

ADSmini101-2 mini reflector prism with bubble, pole and spike set.
It offers high positional accuracy due to its small size.
It is mounted in a polymer holder with 1/4" thread fittings, has a built-in leveling bubble and is supplied with the four-section pole and attachable spike (1/4" thread).
This setup allows a point to be measured with very high precision.
Prism
Prism Range
Surveying Prisms, also known as retro-reflectors, redirect a measuring beam back to the EDM (Electronic Distance Measurement) for processing distance. There are two main factors for good range measurement: prism diameter and beam deviation. If the beam deviation is not accurate then the returned beam will miss the EDM completely. This occurs mainly near the maximum range of the EDM. Keep in mind that all Leosurvey standard prisms are <5 seconds.
Optical Survey Prism Applications
Survey prisms are used by surveyors and engineers to measure the change in position of a target that is assumed to be moving. Survey prisms are used for a wide range of monitoring applications including:
· Rail Monitoring
· Settlement Monitoring
· Displacement Monitoring
· Deformation Monitoring
· Convergence Monitoring
Prism Dimension
Item Detailed Pictures
