1.5m Tribrach Total Station Survey Rotatable Light Tan Carrier Adaptor Bayonet Tip
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | AL10-D6 |
| Minimum Order Quantity | 5 Pieces |
| Price | 20USD~25USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Light Tan | Type | Pentax |
|---|---|---|---|
| Optical Plummet | Yes | Magnification | 3.5X |
| Fits | All Standards Tribrach And Prisms | Thread | Bayonet Tip |
| Used For | All Brands | Condition | New |
| Highlight | 1.5m tribrach total station,Rotatable tribrach total station,Rotatable total station survey |
||
Product Description

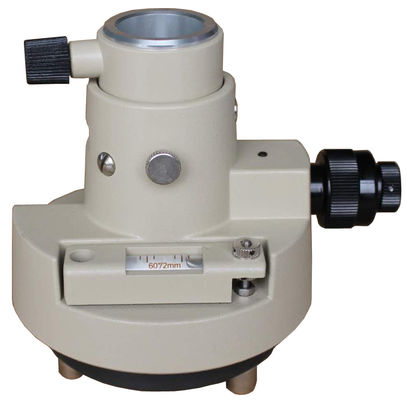

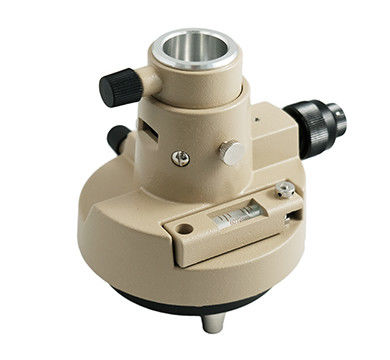

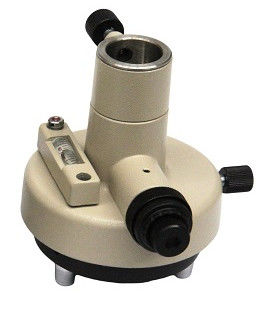

AL-D6 Rotatable Light Tan Color Tribrach Carrier with Optical Plummet for Total Stations
Specifications:
| Model | AL-D6 |
| Color | Light tan |
| Thread | Bayonet Tip |
| Optical Plummet | Yes |
| Bubble | Longitudinal |
| Focus Range | 0.5~15m |
| Magnification | 3.5X |
| Fit | All Standard Tribrach and Prism Posts |
Overview:
1. With optical plummet
2. Bayonet tip
3. Vial 45"/2 mm
4. Three-jaw
5. Used for Theodolite, total station, GNSS antenna or Target to a tripod.
6. Focus Range: 05~15m
Tribrach adapter allows you to set your prism target to the same height as your instrument, even when you change position. Mount your prism to the adapter, and use a ruler to measure from the bottom to your tilting axis. Adjust it up or down until it’s at the desired height.
