AL-D5 Black Color 3.5X Magnification Tribrach Adaptor With Optical Plummet

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number AL10-D5
Minimum Order Quantity 5 Pieces
Packaging Details Box and Carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Color Black Type Trimble
Optical Plummet Yes Adapter Optical Range 0.5~1.5m
Magnification 3.5X Fits All Standards Tribrach And Prisms
Thread Bayonet Tip Used For All Brands
Condition New
High Light

3.5X Magnification Tribrach Adaptor


Trimble Type Tribrach Adaptor


1.5m Optical Tribrach Adaptor

Leave a Message
Product Description

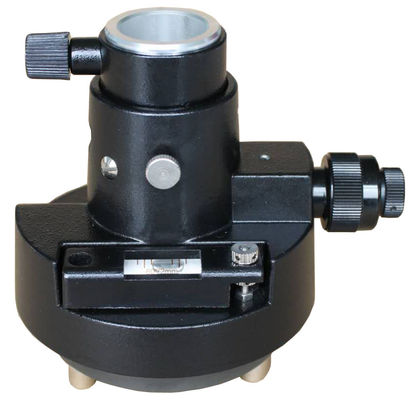

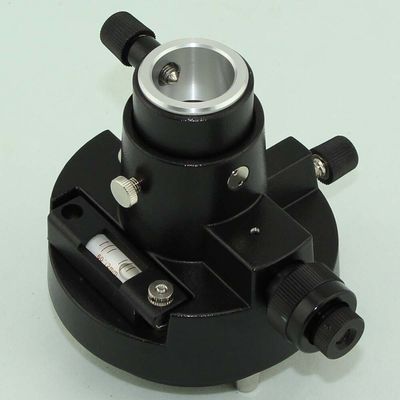

AL-D5 Black color Tribrach Carrier Adaptor With Optical Plummet for Prism Set


Model: AL-D5



Model AL-D5
Color Black
Thread Bayonet Tip
Optical Plummet Yes
Bubble Longitudinal
Focus Range 0.5~15m
Magnification 3.5X
Fit All Standard Tribrach and Prism Posts



  1. Three-jaw Tribrach Adapter With Optical Plummet
  2. Carrier/Adapter Center Thread: Bayonet Tip
  3. Tribrach With Optical Plummet Adjust Screw-in Left Hand for Sokkia Topcon Style
  4. Used for theodolite, total station, GNSS antenna or target to a tripod
  5. Tribrach is an attachment plate used to attach a surveying instrument,
  6. High quality and accuracy Best choice for You

How do you make a tribrach on a tripod?

Mark a point on the floor, precisely level the tribrach, and center the image in the optical plummet. Draw a pencil line on the tripod head precisely outlining the tribrach. Rotate the tribrach 120 degrees and fit it to the pencil outline.


How do you adjust the plum on a tribrach?

Adjust the plumb. Most tribrachs have two small adjusting screws on the optical plumb arm under the instrument. One screw adjusts the cross-hair holder left to right, the other to and fro. Turning the screws simultaneously in opposite directions produces diagonal movement.


How do tribrachs work?

A tribrach uses an optical plumb sight for vertical orientation. Rough field conditions can jar the optical plumb sight out of adjustment, leading to inaccurate measurements by survey instruments mounted on the tribrach. Readjustment is relatively easy to do. Set up the surveyor’s tripod and attach the tribrach to the tripod head.
