AJ10-D2 Optical Plummet Tribrach For Survey Equipments

Place of Origin China
Brand Name Sokkia
Certification ISO
Model Number AJ10-D2
Minimum Order Quantity 5 Pieces
Packaging Details Box and Carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Color Grey Material Aluminum
Weight 870g Optical Plummet YES
Accuracy Torsional Stiffness <2" Type Sokkia Tribrach
Bubble 8' Circular Bubble Used For Sokkia Nikon Trimble Etc
High Light

Optical Plummet Tribrach


Survey Equipments Optical Plummet Tribrach


Aluminum Optical Plummet Tribrach

Leave a Message
Product Description

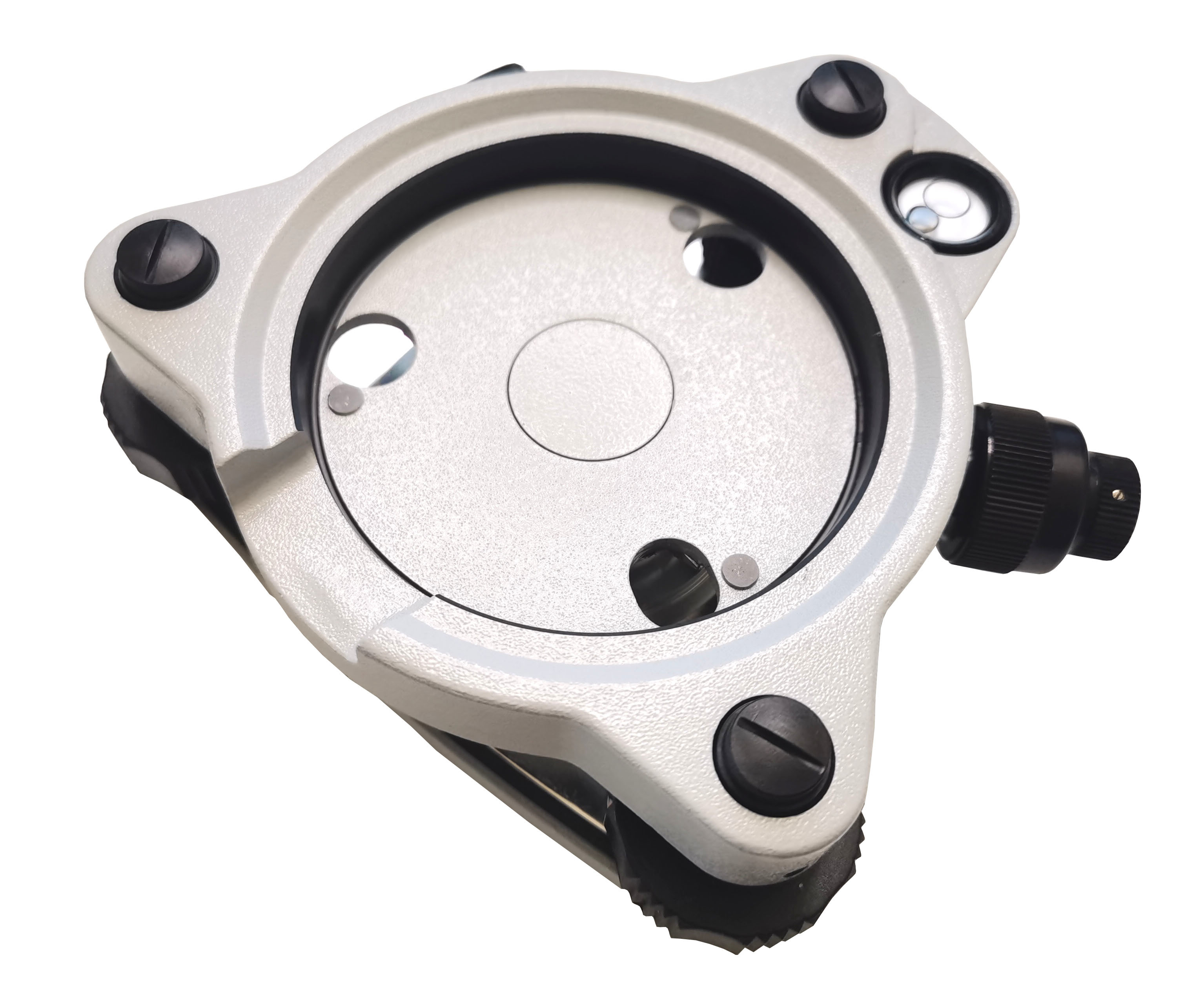

AJ10-D2 Sokkia Type Tribrach with Optical Plummet for Survey Equipments


Model: AJ10-D2



Model AJ10-D2
Color Grey
Optical Plummet Yes
Weight 870g
Material Aluminum
Package Individual Box Package
Accuracy Torsional stiffness <2"
Type Survey Instrument Accessory
Bubble 8' Circular Bubble
Used For All motorized instruments



Grey tribrach withOptical Plummet

Sokkia style

With locking forced-centering knob

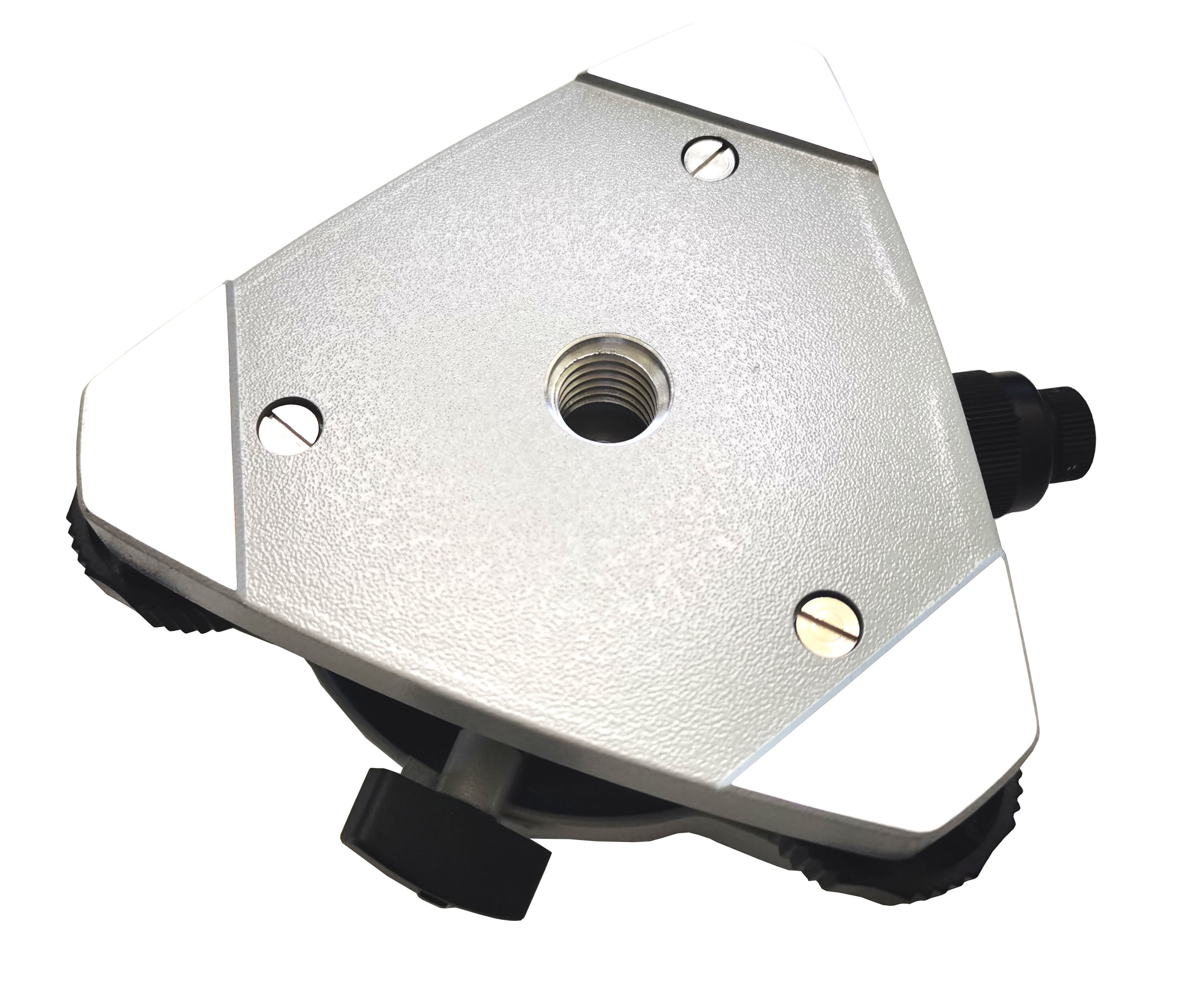

5/8*11 base

8-minitue circular vial

The tribrach and optical plummet are of robust construction and suitable for long period exposure in all environments.




A tribrach is an attachment plate used to attach a surveying instrument, for example a theodolite, total station, GNSS antenna or target to a tripod. A tribrach allows the survey instrument to be repeatedly placed in the same position over a surveying marker point with sub-millimetre precision, by loosening and re-tightening a lock to adjust the instrument base in a horizontal plane.


Tribrach Adjusting

Optical Plummet Adjustment Using: Tribrach Adjusting Cylinder or Tribrach Adjuster

EQUIPMENT NEEDED: Tribrach Adjusting Cylinder or Tribrach Adjuster, Tripod or instrument stand, 2 tribrachs, target

1. Place the tribrach on the tripod. Put the adjuster in the tribrach. Place the tribrach to be adjusted on top of the adjuster so that it is upsidedown looking at the target on the ceiling. The distance between the tribrach and target should be between 4 and 5 feet.

2. Using the leveling screws of the bottom tribrach, point the crosshair of the tribrach being tested to coincide with the target.

3. Rotate the tribrach being tested 180 degrees on the adjuster. Crosshairs will stay on the target of an adjusted tribrach.

4. After 180 degree turn if the crosshair does not stay on the target, half the error should be corrected with the adjusting screws provided by the manufacturer of the tribrach. The remainder should be corrected with the leveling screws of the bottom tribrach.

5. Repeat steps 2, 3 & 4 until the crosshair stays on target at all positions.

Tribrach Circular Vial Adjustment Using: Tribrach Adjuster

EQUIPMENT NEEDED: Tripod or instrument stand, Tribrach Adjuster and adjusting pins.

1. Place the tribrach on the tripod and fasten to the tripod.

2. Place the adjuster in the tribrach and level the tribrach using the vial on the adaptor. Ignore the circular vial on the tribrach.

3. To level the Adjuster: Point one end of the adaptor vial to any leveling screw and using that screw bring the vial to center.

4. Now turn the adjuster 90 degrees so that each end of the vial is as close as possible to the other two leveling screws. Using these two leveling screws, center the vial.

5. Turn the vial 90 degrees back to the original leveling screw and level again if necessary.

6. Repeat 1,2 & 3 until the vial remains centered at both positions.

7. To test the adjustment of the adjuster vial at any centered position, rotate the adjuster 180 degrees. The vial should stay centered within one graduation. If not, take half the error back to the center with the vial mounting screw that is on the high side.


8. If the circular vial on the tribrach is not centered, use the adjusting screws and bring to center.
