Total Station Sokkia Type Survey Tribrach For Survey Reflector Prism

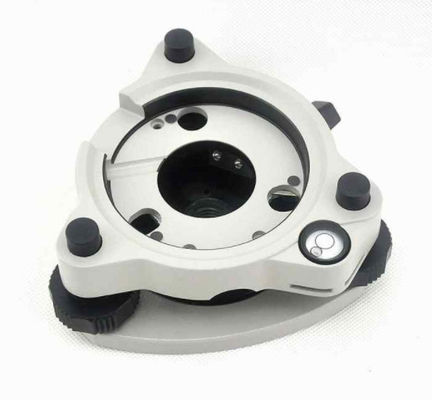

Sokkia Type Tribrach without Optical Plummet for Total Station and Survey Reflector Prism

Model: AJ10-B2

Specifications

Overview:

Grey tribrach without Optical Plummet

Sokkia style

With locking forced-centering knob

5/8*11 base

8-minitue circular vial

The tribrach and optical plummet are of robust construction and suitable for long period exposure in all environments.

How do you make a tribrach on a tripod?

Mark a point on the floor, precisely level the tribrach, and center the image in the optical plummet. Draw a pencil line on the tripod head precisely outlining the tribrach. Rotate the tribrach 120 degrees and fit it to the pencil outline.

How do you adjust the plum on a tribrach?

Adjust the plumb. Most tribrachs have two small adjusting screws on the optical plumb arm under the instrument. One screw adjusts the cross-hair holder left to right, the other to and fro. Turning the screws simultaneously in opposite directions produces diagonal movement.

How do tribrachs work?

A tribrach uses an optical plumb sight for vertical orientation. Rough field conditions can jar the optical plumb sight out of adjustment, leading to inaccurate measurements by survey instruments mounted on the tribrach. Readjustment is relatively easy to do. Set up the surveyor’s tripod and attach the tribrach to the tripod head.

Can I use a tribrach with a total station?

You can use a laser tribrach with any type of laser measuring tool, but you can also use it with a total station or any other surveying instrument. This device will allow you to attach your instrument to a tripod, so it can be more stable while you’re using it.
