AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment

  • AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment
  • AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment
  • AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment
  • AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment
Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number AJ12-A4
Minimum Order Quantity 5 Pieces
Price 18USD~25USD
Packaging Details Box and Carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Pale Green Torsional Stiffness <3"
Condition New Circular Bubble 8-minute
Leveling Screws Large Diameter Weight 780g
Suitable For Leica TPS Instruments Catagory Survey Instrument Accessory
Leave a Message
Product Description

AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment



Model: AJ12-A1



Overview:

Leica type Tribrach Replacement of Original GDF121



Specifications:

Color Circular Bubble Torsional Stiffness Leveling Screws
Pale green 8-minute <3" Large-Diameter



Features:

A. Replacement of Leica GDF121 Tribrach

B. High quality features 3X magnification and a twist focus.

C. With locking forced-centering knob.

D. 5/8*11 base

E.8-minute circular bubble

F. Large-diameter leveling screws





Tribrach

A tribrach is an attachment plate used to attach a surveying instrument, for example a theodolite, total station, GNSS antenna or target to a tripod. A tribrach allows the survey instrument to be repeatedly placed in the same position over a surveying marker point with sub-millimetre precision, by loosening and re-tightening a lock to adjust the instrument base in a horizontal plane.



What is the accuracy of a tribrach?

The accuracy with which a tribrach returns to its starting position once the instrument has stopped, is called torsional rigidity or hysteresis. This hysteresis is the relative movement between the top plate and the base plate of a tribrach that occurs through the rotation of a TPS instrument.



Why does a tribrach need to be adjusted?

The precise alignment of the support area to the base plate of the instrument assures extremely accurate forced centring. The optical plummet is so robust that the need for adjustment during the entire lifetime of the tribrach is practically unnecessary.



How big are the foot Screw on a tribrach?

The hysteresis of the  tribrachs amounts to a maximum of 3" (1.0 mgon). The foot screws are maintenance-free and have a larger diameter.



Detailed Pictures for Reference

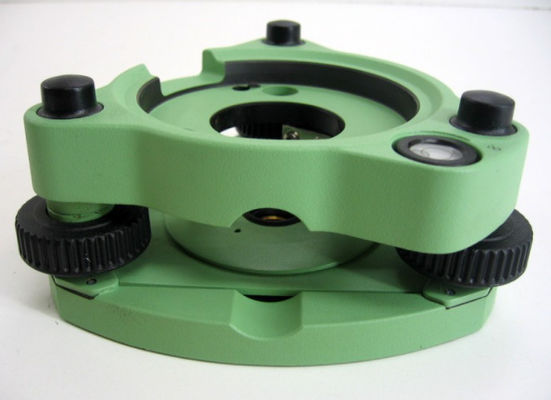

AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment 0

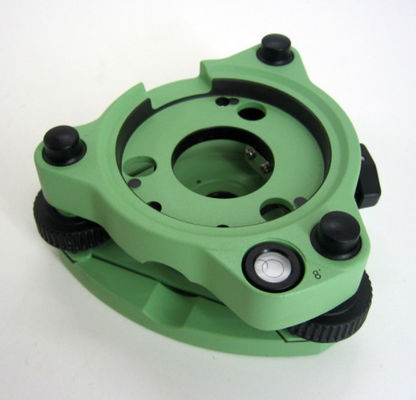

AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment 1

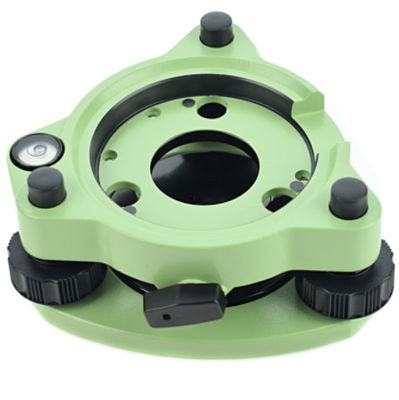

AJ12-A4 Tribrach without Optical Plummet Leica Type Green For Survey Equipment 2
