Gdf111 Optical Plummet In Total Station Pale Total Station And Gps Surveying

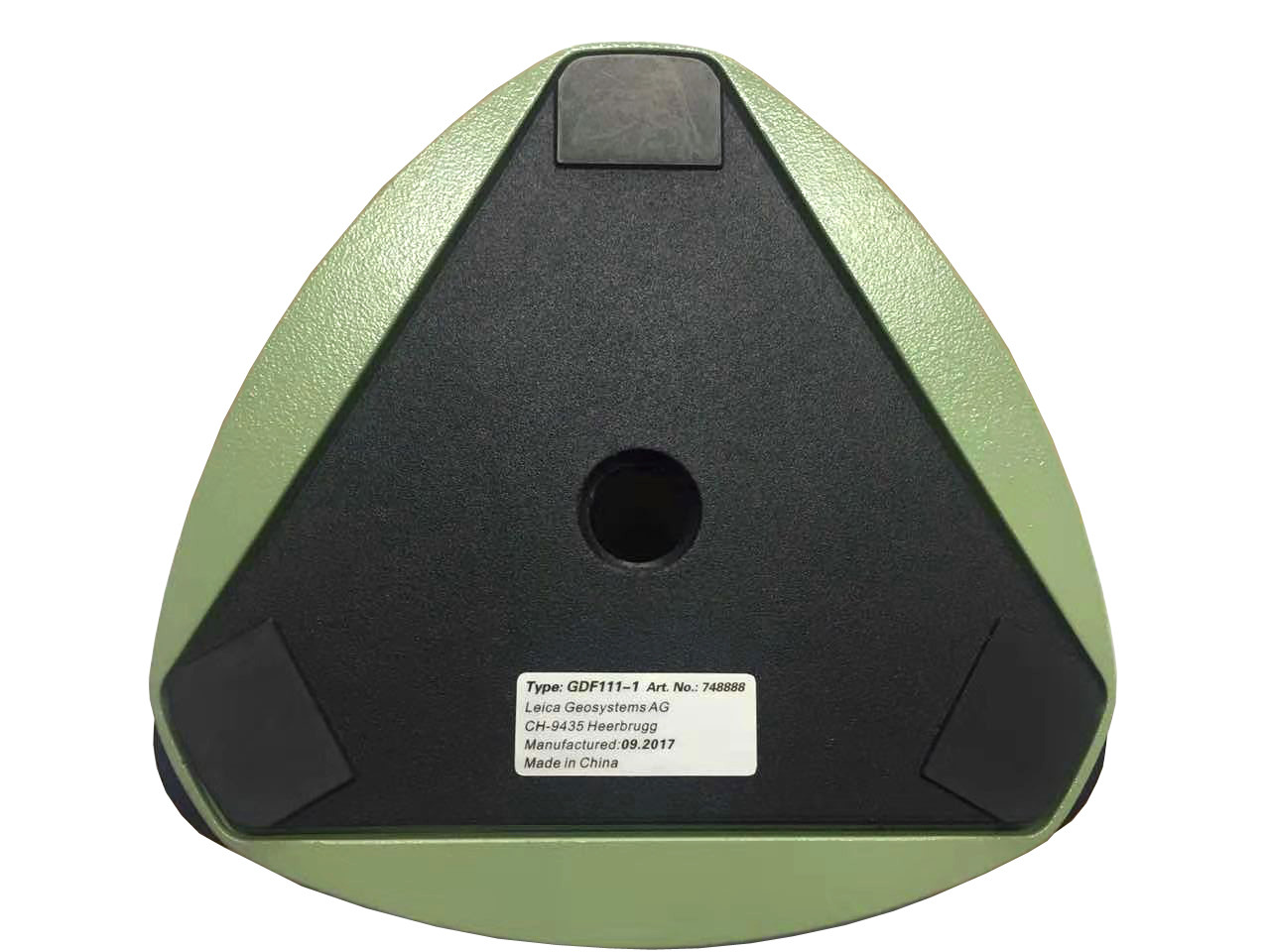

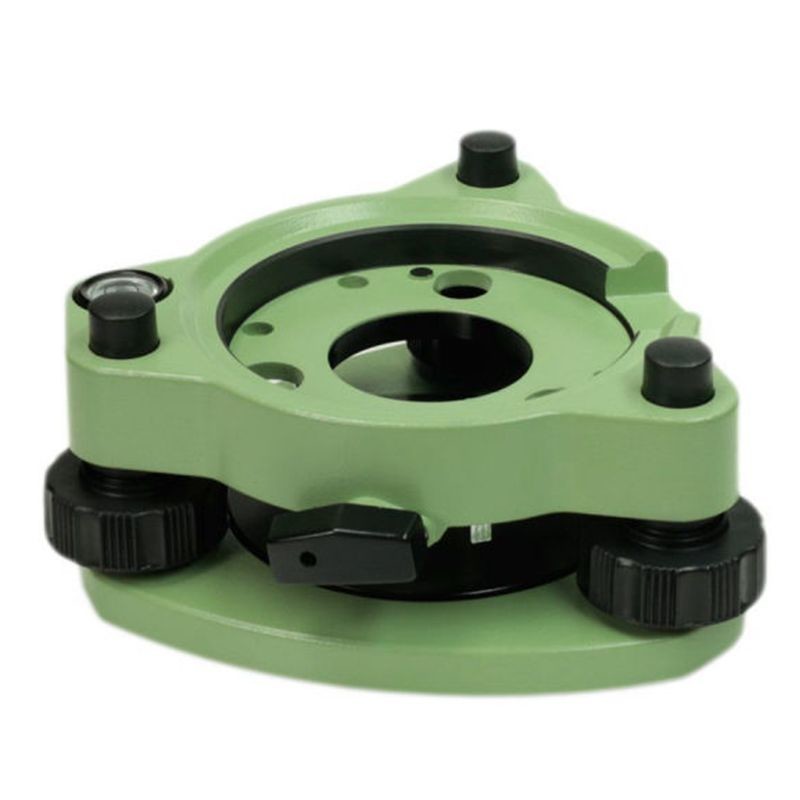

Leica Basic Pale Green Tribrach without Optical Plummet GDF111-1

Model: GDF111-1

Overview:

· Suitable for TPS instruments with an angular accuracy of greater than 3".

· The footscrews have a large diameter which permits fine adjustment even when wearing work gloves.

Specifications:

Introduction:

Suitable for TPS instruments with an angular accuracy of greater than 3". The footscrews have a large diameter which permits fine adjustment even when wearing work gloves. Torsional stiffness <3", weight 780 grams

Tribrach

Similarly to the stability of the tripod, that of the tribrach is a significant factor in measurement accuracy. The torsional rigidity, the most important criterion of a tribrach, is constantly controlled and tested during its production. The maintenance-free foot screws of the Leica Geosystems tribrach provide movement that is always smooth and free of play, even after years of use. The precise alignment of the support area to the base plate of the instrument assures extremely accurate forced centring. The optical plummet is so robust that the need for adjustment during the entire lifetime of the tribrach is practically unnecessary. Its construction predestines the tribrach for all applications, including extreme temperatures and high dust and. humidity.
