Single Tilt 64mm Female Surveying Reflector Prism Reflector Surveying

Place of Origin China
Brand Name Leosurvey
Model Number AK18-2
Minimum Order Quantity 10 Pieces
Price 20USD~30USD
Packaging Details Soft Bag; Box; Carton
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 1000pcs per month
Product Details
Prism Constant 0mm/-30mm Type Single Prism
Color Yellow Target Plate Metal
Thread Type 5/8x11 Female Thread Prism Type Topcon
Used For Different Brands Total Stations Catagory Total Station Accessories
High Light

64mm female Surveying Reflector Prism


8x11 Surveying Reflector Prism


64mm reflector surveying

Leave a Message
Product Description

Topcon Type Single Tilt Reflector Prism with Soft Bag Yellow Color 0/-30mm Constant


Model: AK18-2



Prism Constant: 0mm/-30mm

Type: Single Prism

Color: Yellow

Effective Diameter: 64mm

Weight: 1Kg

For: Total Station (Sokkia, Nikon, Trimble, Pentax, Topcon etc.)

Package: Soft Yellow Carrying Bag

Target Plate: Metal

Thread Type: 5/8x11 female thread

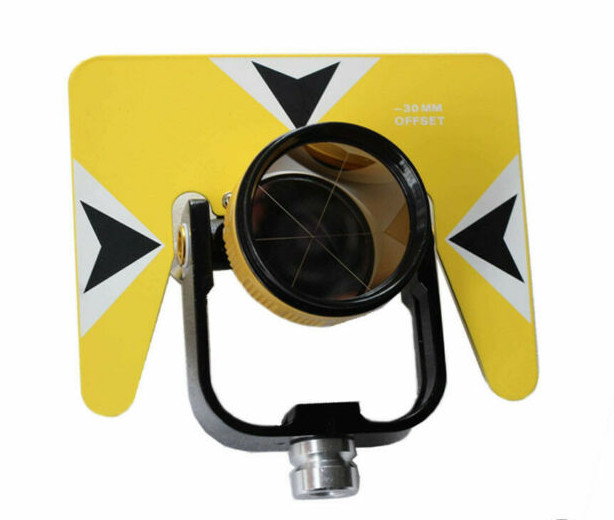

This complete tilting prism assembly comes with a 64mm prism mounted in a sealed canister, a metal 5.5′ x 7′ fluorescent orange target, and a metal yoke.

The prism can either be mounted in a -30mm or zero offset position.

Locking knob in back of the prism locks the prism and target in the desired tilting position.

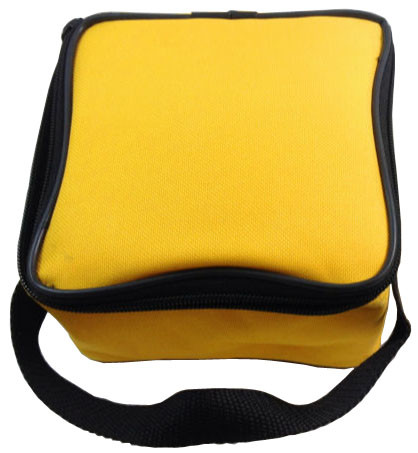

Prism Comes with a protective padded nylon carrying case.



Types optical survey prisms

  • Mini prisms are cheap and reliable, and are a good multi purpose prism for short to mid range measurements.
  • 360 prisms are simple to use for sharing prisms in a multi station network and all angles have a shared center.
  • Dual prisms are reliable shared prisms with shared centers. They are less expensive than 360 prisms, but have to be aimed at each total station in a network.
  • Full size reference survey prisms are ideal for high range precision monitoring and can be used to calibrate a monitoring network

Leosurvey provides a wide range of total station survey prisms for every application. Our premium quality prisms have been rigorously tested and are trusted by our customers to provide reliable and accurate measurements on large construction projects. The optical survey prisms we provide can be used with any brand of total station including Topcon, Sokkia, Leica Geosystems, Trimble Geospatial, Nikon and GeoMax.
