2500m Total Station Survey Prism Holder Target AK16 Soft Bag

Surveying Reflector Prism with Holder and Target for Leica Total Stations

Model: AK16

Specifications

Features

Plastic frame.

Leica type of connector (no threads).

Does not have a 5/8 x11 thread.

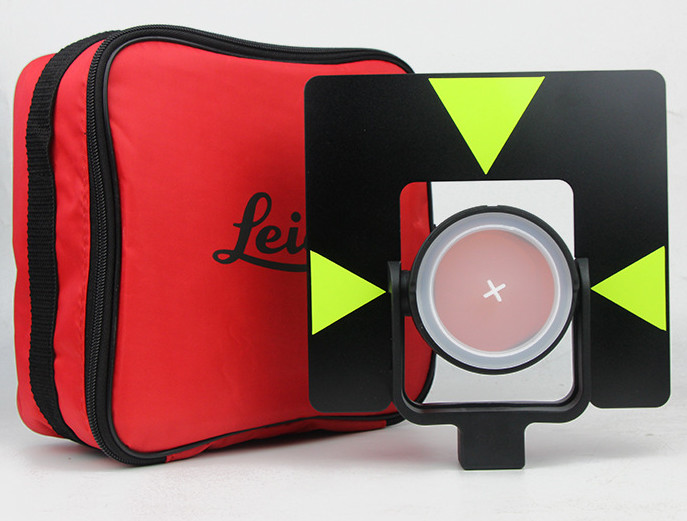

Single tilt prism with soft bag

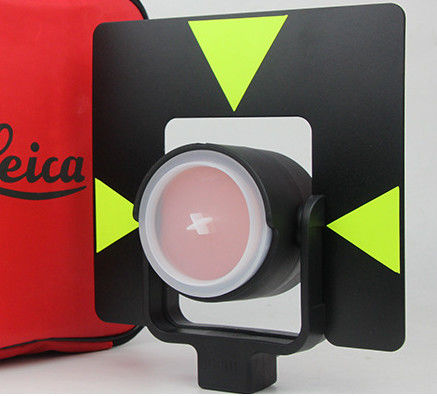

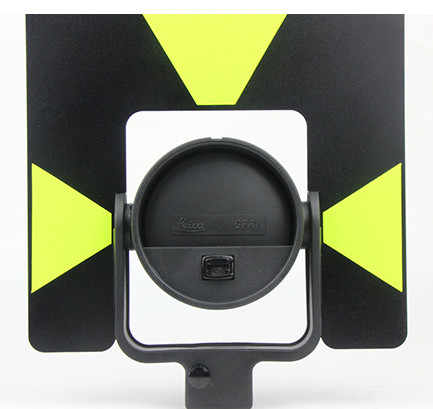

Circular prism sealed in red polymer holder. Large integrated target plate provides good visibility.

Types of Optical Survey Prisms

· Mini prisms are cheap and reliable, and are a good multi purpose prism for short to mid range measurements.

· 360 prisms are simple to use for sharing prisms in a multi station network and all angles have a shared center.

· Dual prisms are reliable shared prisms with shared centers. They are less expensive than 360 prisms, but have to be aimed at each total station in a network.

· Full size reference survey prisms are ideal for high range precision monitoring and can be used to calibrate a monitoring network

Optical Survey Prism Installation

Monitoring prisms should be installed using the following guidelines:

· Attached to a rigid structure that is sufficiently stiff as to not move through a single monitoring cycle

· Located to minimize the effects of temperature and radiant heat on a target

· Installed with clear sight lines back to the total station

· Avoid sight lines that require shooting through a fence or another mesh

· Avoid sight lines shooting just past corners which can cause refraction

· Avoid sight lines that include a source of heat that can cause a heat shimmer
