E Mm Scale Dumpy Level And Staff 7m Aluminum Telescoping Measuring Rod

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number TSA7
Minimum Order Quantity 10 Pieces
Price 15USD~19USD
Packaging Details 1pc/Carry Bag; 10pcs/Carton
Delivery Time 5~8 Work Days
Payment Terms T/T
Supply Ability 1000 pieces per month
Product Details
Model TSA7 Staff Type Telescopic
Compact Length 1.7m Extension Length 7m
Net Weight 3.2Kg Sections 5
Graduation Mm/E/cm/feet Package 1pc/Carry Bag; 10pcs/Carton
With Level Bubble Yes Used For Optical Level
High Light

E Mm Scale dumpy level and staff

,

7m dumpy level and staff

,

7m Aluminum telescoping measuring rod

Leave a Message
Product Description

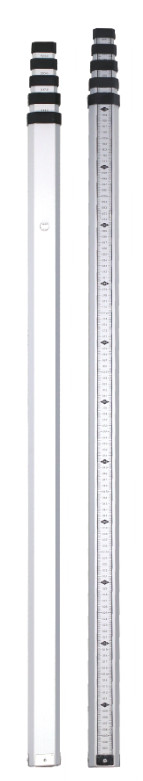

TSA7 Telescopic Aluminum Leveling Staff Dual Sided E-Scale Surveying Rods 7m with Bubble



Model: TSA7



Specifications:

Model TSA7
Staff Type Telescopic
Compact Length 1.7m
Extension Length 7m
Net Weight 3.2Kg
Sections 5
Package 1pc/Carry Bag; 10pcs/Carton
Material Aluminum
Graduation mm/E/cm/feet
With Level Bubble Yes
Used For Optical Level
Carton Size 130*22*18cm



What kinds of Levelling Staffs Leosurvey can supply?

A. Fixed Length Highest Standard Accuracy Invar Barcoded Levelling Staff/Surveying Rods for Digital Levels

2m/3m Barcodes Staff for different brands digital levels like Topcon, Leica, Trimble, GeoMax, South, FOIF, Sokkia.

Customized length invar staff like 50cm, 1m or any special short length.



B. Fixed Length High Standard Accuracy Invar Graduated Staff for Optical Levels

2m/3m Graduated Staff for Optical Levels.

Graduation options: 5mm/10mm



C. Fixed Length High Accuracy Manganese Staff Dual Faces for Digital Level and Optical Levels

2m/3m Manganese Staff with Dual faces, one face with barcoded staff can be supplied for different brands like Topcon, Leica, Trimble, GeoMax, South, FOIF, Sokkia.

Other Face can be used for any brands optical levels.

Customized Length Manganese staff like 50cm, 1m or any special short length.

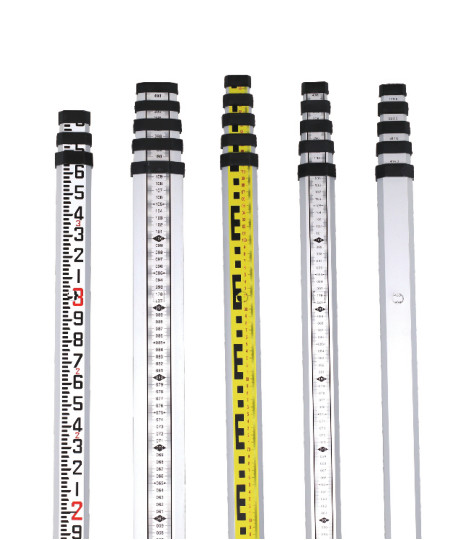

D. Aluminum Telescopic Levelling Staff

3m/4m/5m/7m

Graduation options are: mm/cm/feet/E word



Features:

1. Made of high quality white powder-coated aluminum tubes (thickness 1.0 mm), anti-corrosion and rust proof.

2. Thickened wear resistant stainless steel substrate.

3. The aluminum sections are in contrasting white, red and black colors.

4. Projecting profiled edges additionally protect the levelling graduation on the front side.



Level Staff

A level staff is a measuring rod which land surveyors sight through a telescope to calculate the slope, or difference in elevation, between two locations. Whatever their material construction, most all models can be adjusted in height, either telescopically or with additional sectional attachments. Also called a leveling rod, its use is based on one of the simplest principles of geometry.

They can be a single long rod, but surveying land on foot requires some measure of portability. A lightweight aluminum level staff may have nested sections which telescope out and lock for height adjustment. Wooden types may be made in separate sections that connect end-to-end and lock, as needed. All have graduated numeric markings, either imperial or metric measurements, in large, visible print. They are, basically, very long rulers with a functional resolution of about 0.1 inch (2.5mm).

Additionally, there are two different types of level staffs, which correspond to who is determining the measurement. A “target rod” is read by the rodman, the individual holding the level staff. Another type, a “self-reading rod," is read by the instrument man. The latter, sometimes called a “speaking rod,” is sighted and recorded by the individual looking through a telescope mounted on a tripod from afar.

Target rods are mounted with a sliding target that is marked with crosshairs and cut with a keyhole in the center. With hand signals or by radio, the instrument man instructs the rodman to slide the target up or down until its crosshairs match the crosshairs in his telescope. These are also sometimes called stadia marks.

There are a few other level staffs differently designed for specialized applications. A topographer’s rod has a zero-mark in the center and is useful for continuous recording of the pluses and minuses of wildly undulating elevation contours of an area of land. So-called standia rods are oversized versions of a level staff used for longer distances.

The geometry of measuring elevation change is quite simple. The sighting instrument used by most surveyors is called a theodolite, and the adjustable legs of its tripod mount can be adjusted to ensure that the telescopic sight is truly level. Its height above the ground is recorded.

At a practical distance of up to 410 feet (125m) for most models, a vertical level staff is viewed to record the measurement indicated by the telescope’s crosshairs. The difference between the two measurements is the change in elevation. If the exact distance is also recorded, a simple calculation of triangulation yields a measurement of the elevation change in degrees, or slope.

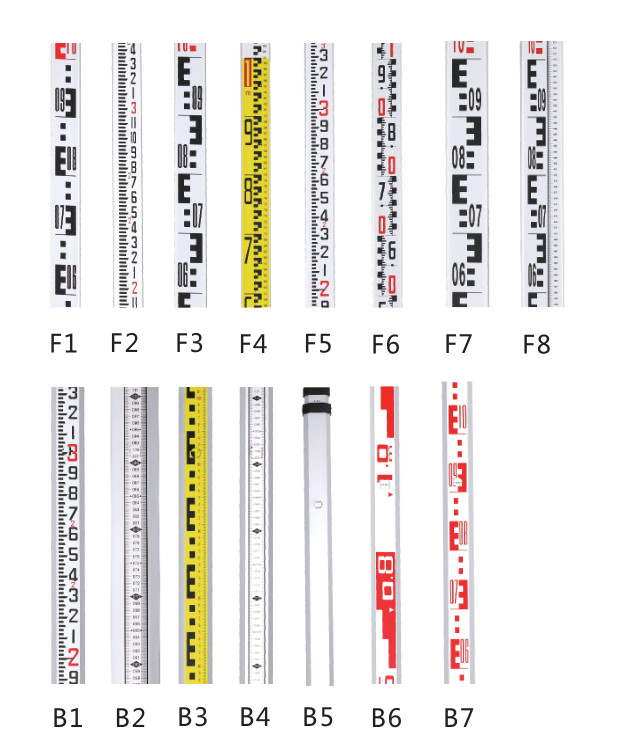

Staff Graudation Choices:

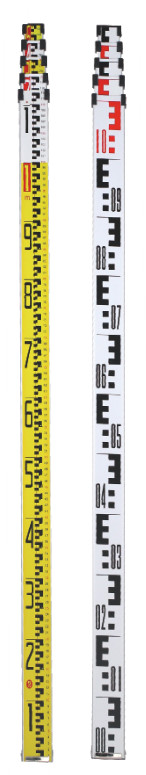

E Mm Scale Dumpy Level And Staff 7m Aluminum Telescoping Measuring Rod 0



E Mm Scale Dumpy Level And Staff 7m Aluminum Telescoping Measuring Rod 1
