DINI Measuring Pole Telescopic Trimble Telescoping Measuring Stick

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number MST2
Minimum Order Quantity 2pcs
Price 500USD~700USD
Packaging Details Aluminum Case and Carton Box
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model MST2 Used For Trimble DINI Digital Level And Optical Levels
Random Graduation Errors ≤ 20μm Length 2m
Net Weight 5Kg/Pc Gross Weight For 2pcs With Package 7Kg
Material Manganese Tape Color Yellow
Condition New Manganese Tape Specification 0.4×33mm
Rod Body Straightness ≤4mm Error Of Every Meter ≤0.04mm
Package Aluminum Case Error Of Zero Point ≤0.25mm
High Light

DINI measuring pole telescopic

,

Trimble measuring pole telescopic

,

Trimble telescoping measuring stick

Leave a Message
Product Description

High Accuracy Manganese Levelling Staff Rods for Survey Digital Level Trimble DINI 2m



Model: MST2



Specification:

Model MST2
Used For Trimble DINI digital level
Random Graduation Errors: ≤ 20μm
Length 2m
Net Weight 5Kg/Pc
Gross weight with Package 7Kg
Material Manganese tape
Color Yellow
Marking System Barcoded and Graudated
Manganese Steel Specification 0.4×33mm
Rod Body Straightness ≤4mm
Error of Every Meter ≤0.25mm
Error of Zero Point: ≤0.25mm
Package Aluminum Case



Leosurvey Manganese Barcoded Rods:

  1. Staff tape is made of high quality Manganese steel. The coefficient of thermal expansion is very small (10.6~12.2 ×10-6//M)
  2. Superior graduation accuracy and high quality image of stripes.
  3. Body of the staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
  4. The tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.

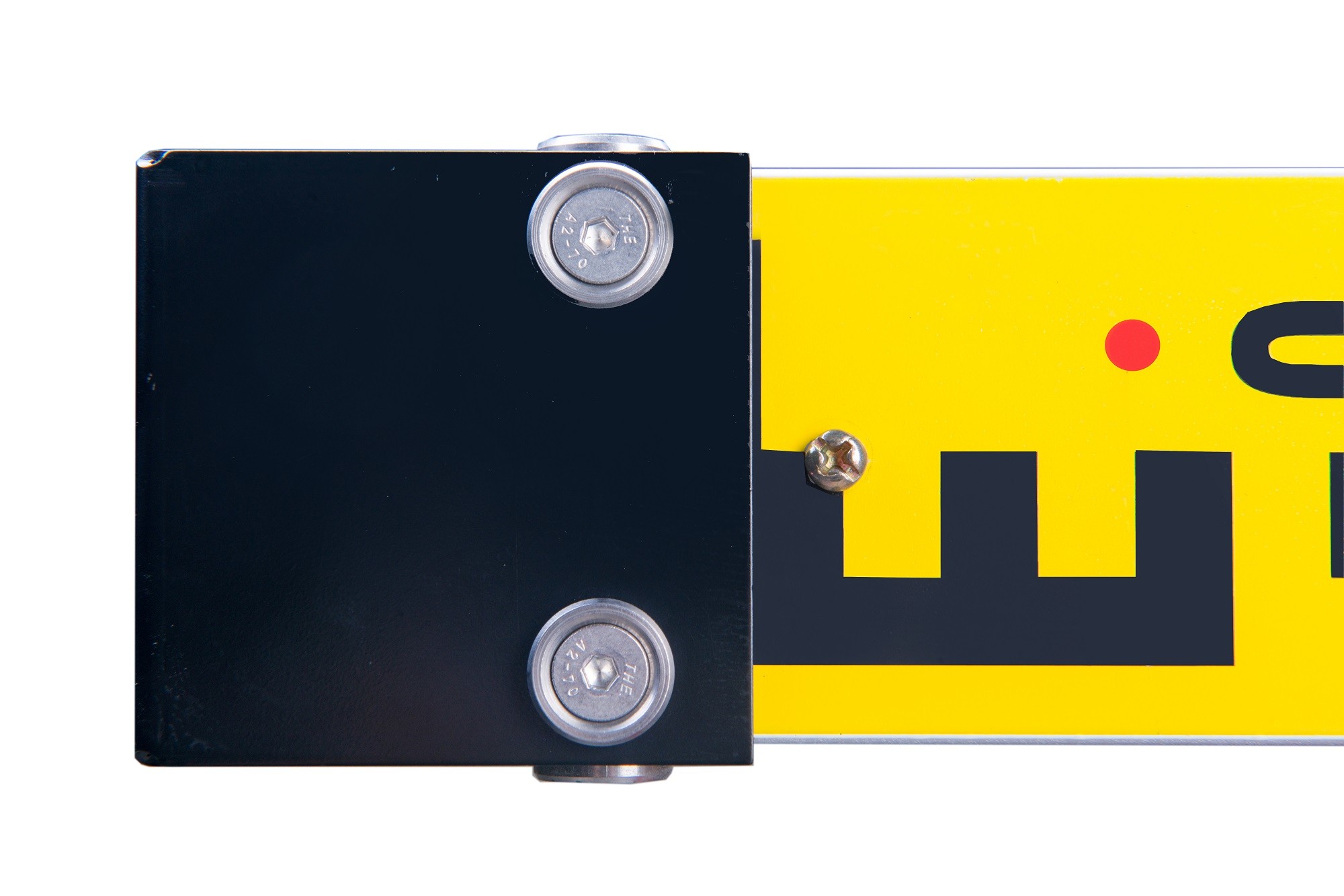

  5. Foot plate of 304 stainless steel; hardened, smooth and ground.

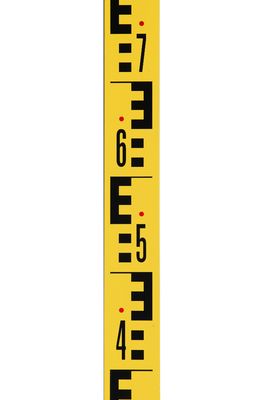

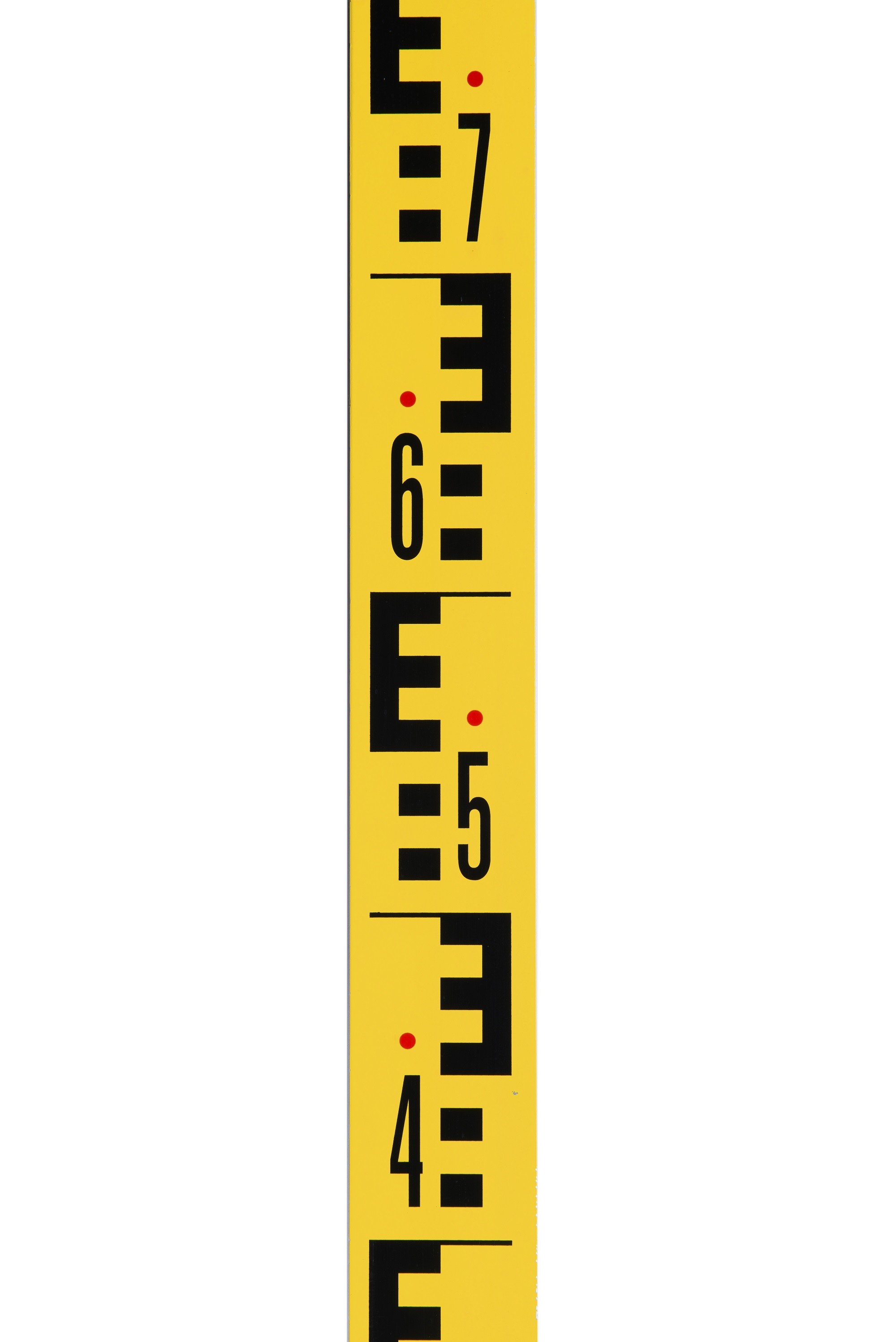

  6. Double face marking system; can be used for digital levels and optical levels

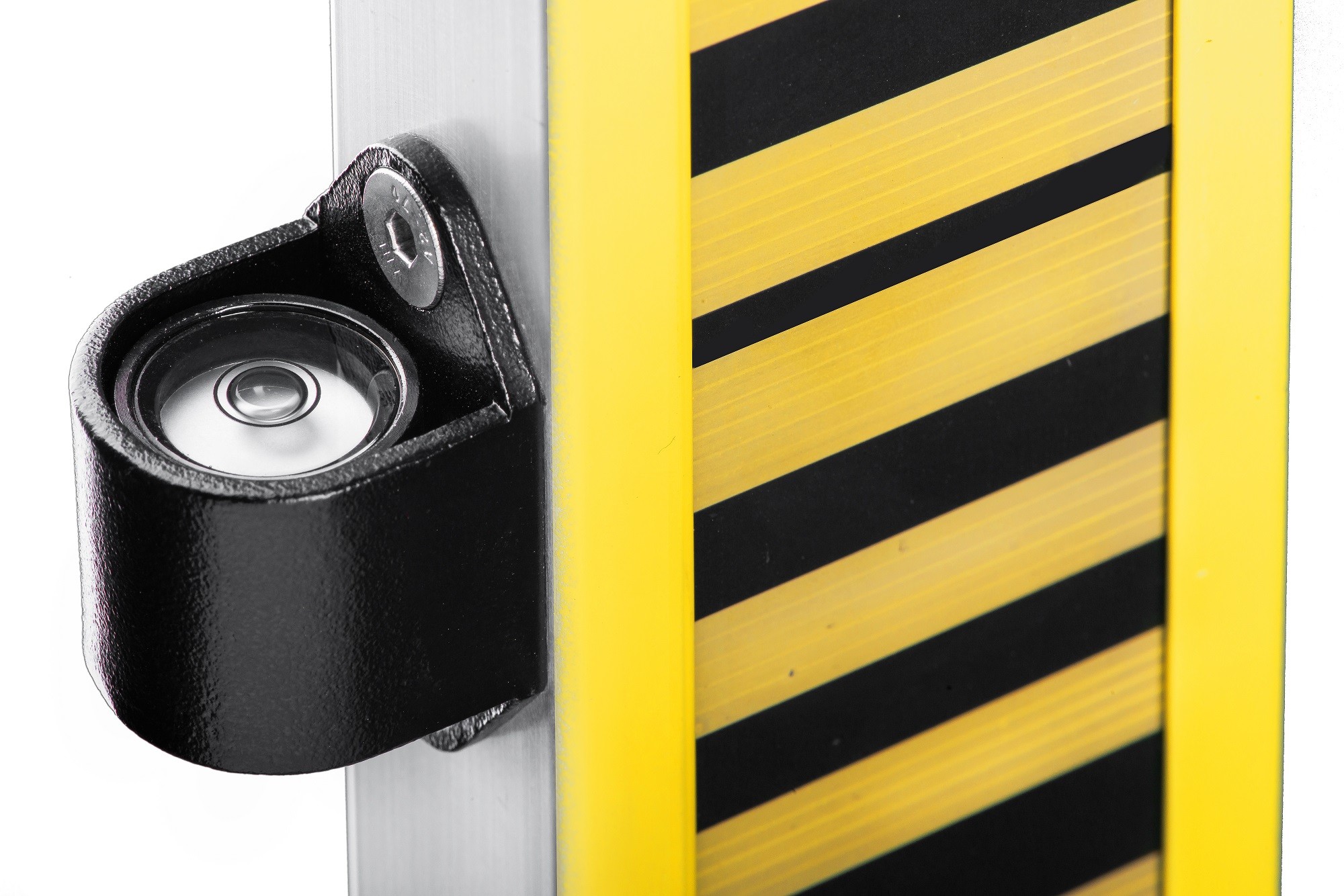

     7. Equipped with circular bubble and handles. Handles zinced and powder-coated



Introduction of Mangenese Staff:

Leosurvey high precision Manganese levelling staffs are used for Third-order and Fourth-order leveling. The levelling body is made of aluminum alloy material, which assures less possibilities of transformation during using. Additionally, light weight body helps the users to carry and perform easily.



The levelling tape is made of Manganese Steel (Specification is 0.4×33mm). The coefficient of thermal expansion of Manganese Steel is (10.6~12.2) ×10-6//M. Small coefficient of thermal expansion and extra 3-kilogramme pulling force added at the top of levelling tape, make sure less external influence during the process of using.

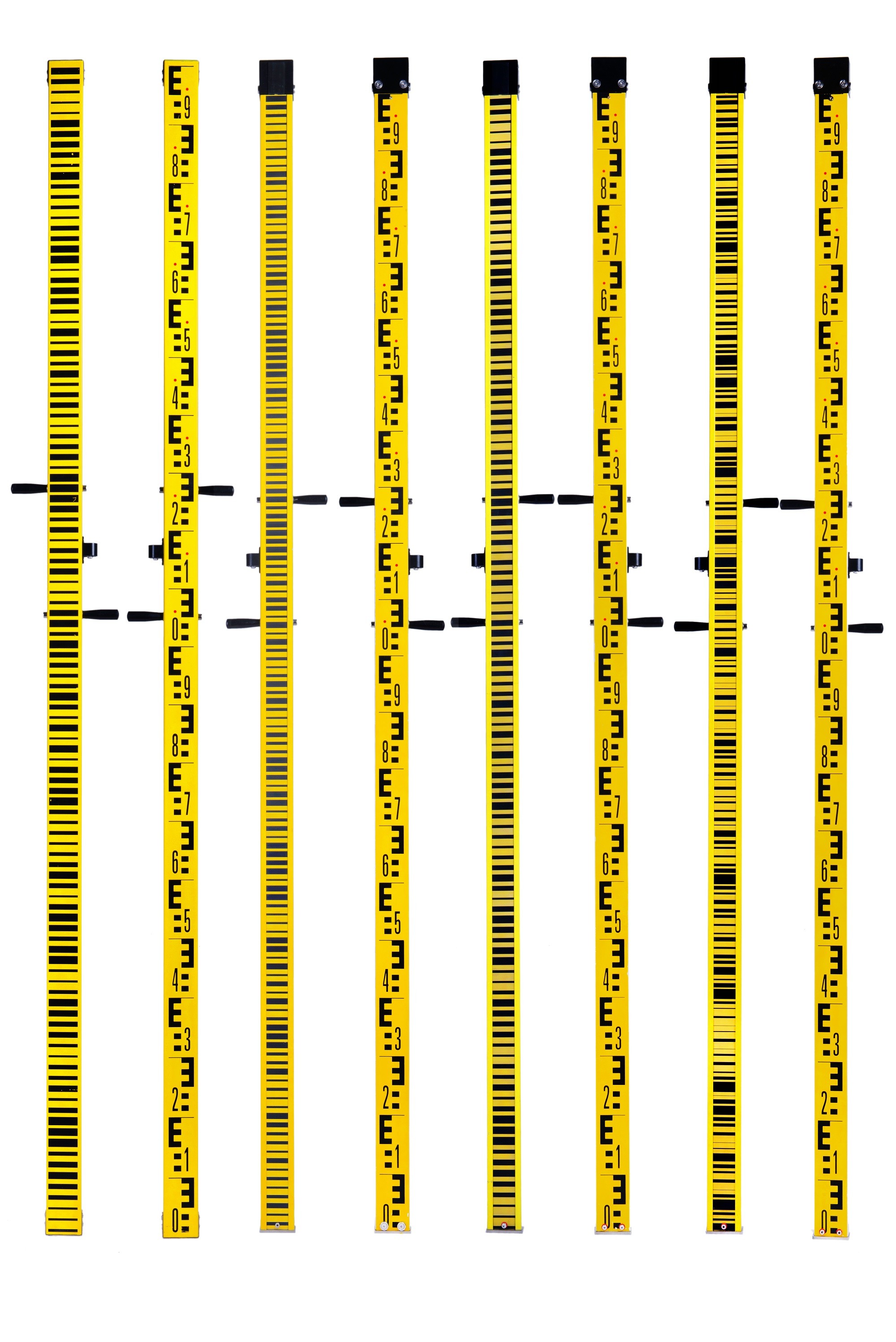

Currently, regular optional lengths are 2 meters and 3 meters . Front face barcode tape can be used for digital levels and back face can be used for optical levels. We can customize the staff with your requirements.





Package: 2pcs/aluminum Case; With extra outer carton box



Detailed Pictures:

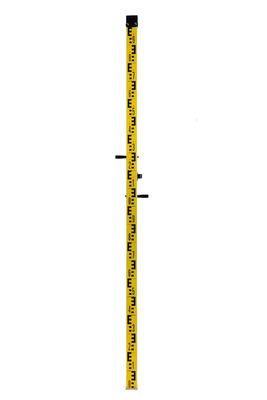

DINI Measuring Pole Telescopic Trimble Telescoping Measuring Stick 0

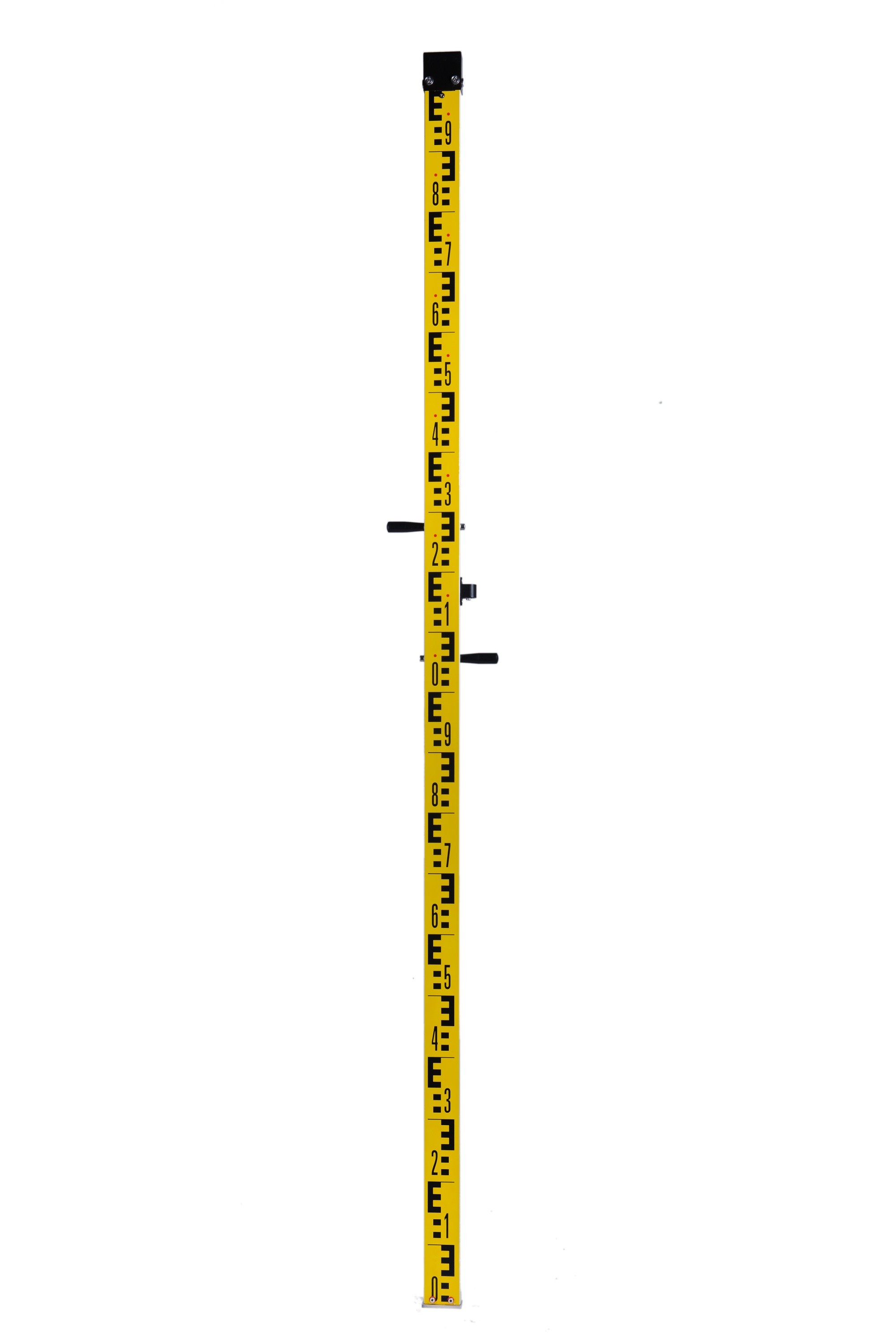

DINI Measuring Pole Telescopic Trimble Telescoping Measuring Stick 1

DINI Measuring Pole Telescopic Trimble Telescoping Measuring Stick 2
