3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number MSS3
Minimum Order Quantity 2pcs
Price 500USD~700USD
Packaging Details Aluminum Case and Carton Box
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MSS3 Used For Sokkia SDL Digital Level And Optical Levels
Random Graduation Errors ≤ 20μm Length 3m
Net Weight 7Kg/Pc Gross Weight For 2pcs With Package 10Kg
Material Manganese Tape Color Yellow
Condition New Manganese Tape Specification 0.4×33mm
Rod Body Straightness ≤4mm Error Of Every Meter ≤0.04mm
Package Aluminum Case Error Of Zero Point ≤0.25mm
Leave a Message
Product Description

3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels



Model: MSS3



Specification:

Model MSS3
Used For Sokkia SDL digital level
Random Graduation Errors: ≤ 20μm
Length 3m
Net Weight 7Kg/Pc
Gross weight with Package 10Kg
Material Manganese tape
Color Yellow
Marking System Barcoded and Graudated
Manganese Steel Specification 0.4×33mm
Rod Body Straightness ≤4mm
Error of Every Meter ≤0.25mm
Error of Zero Point: ≤0.25mm
Package Aluminum Case



Leosurvey Manganese Barcoded Rods:

  1. Staff tape is made of high quality Manganese steel. The coefficient of thermal expansion is very small (10.6~12.2 ×10-6//M)
  2. Superior graduation accuracy and high quality image of stripes.
  3. Body of the staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
  4. The tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
  5. Foot plate of 304 stainless steel; hardened, smooth and ground.
  6. Double face marking system; can be used for digital levels and optical levels

     7. Equipped with circular bubble and handles. Handles zinced and powder-coated



Manganese (Mn) is essential to iron and steel production by virtue of its sulfur-fixing, deoxidizing, and alloying properties. Steelmaking, including its ironmaking component, accounts for most domestic manganese demand, presently in the range of 85% to 90% of the total. Manganese ferroalloys, consisting of various grades of ferromanganese and silicomanganese, are used to provide most of this key ingredient to steelmaking. Products for construction, machinery, and transportation are leading end uses of manganese. Manganese also is a key component of certain widely used aluminum alloys and, in oxide form, dry cell batteries. As ore, additional quantities of manganese are used for such nonmetallurgical purposes as plant fertilizers, animal feed, and colorants for brick.

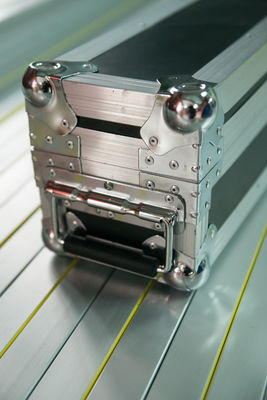

Package: 2pcs/aluminum Case; With extra outer carton box



Detailed Pictures:

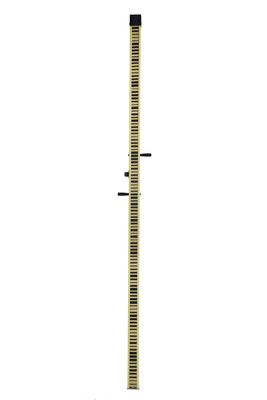

3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels 0

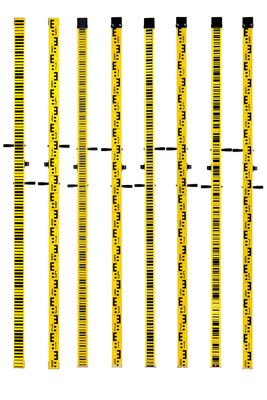

3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels 1

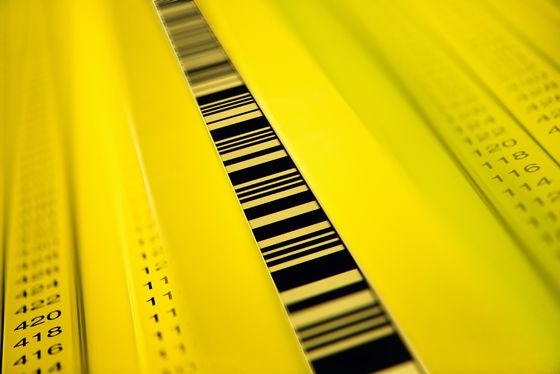

3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels 2

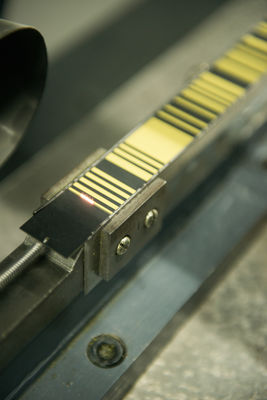

3m Surveying Leveling Staff Manganese Rod for Sokkia SDL Level and Optical Levels 3
