Digital 0.4×33mm Telescopic Levelling Staff 7Kg Optical Digital
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | MSS2 |
| Minimum Order Quantity | 2pcs |
| Price | 500USD~700USD |
| Packaging Details | Aluminum Case and Carton Box |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Product Details
| Model | MSS2 | Used For | Sokkia SDL Digital Level And Optical Levels |
|---|---|---|---|
| Random Graduation Errors | ≤ 20μm | Length | 2m |
| Net Weight | 5Kg/Pc | Gross Weight For 2pcs With Package | 7Kg |
| Material | Manganese Tape | Color | Yellow |
| LED Light Strip | Optional | Condition | New |
| Manganese Tape Specification | 0.4×33mm | Rod Body Straightness | ≤4mm |
| Error Of Every Meter | ≤0.04mm | Package | Aluminum Case |
| Error Of Zero Point | ≤0.25mm | ||
| High Light | 0.4×33mm Telescopic Levelling Staff,7Kg Telescopic Levelling Staff,7Kg telescopic staff in surveying |
||
Product Description

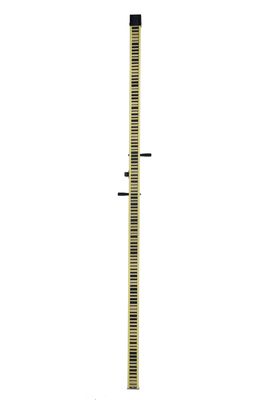

Sokkia Digital Level SDL Accessory Dual Faces Barcoded Manganese Levelling Staff 2m
Model: MSS2
Specification:
| Model | MSS2 |
| Used For | Sokkia SDL digital level |
| Random Graduation Errors: | ≤ 20μm |
| Length | 2m |
| Net Weight | 5Kg/Pc |
| Gross weight with Package | 7Kg |
| Material | Manganese tape |
| Color | Yellow |
| Marking System | Barcoded and Graudated |
| Manganese Steel Specification | 0.4×33mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.25mm |
| Error of Zero Point: | ≤0.25mm |
| Package | Aluminum Case |
Leosurvey Manganese Barcoded Rods:
- Staff tape is made of high quality Manganese steel. The coefficient of thermal expansion is very small (10.6~12.2 ×10-6/℃/M)
- Superior graduation accuracy and high quality image of stripes.
- Body of the staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
- The tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
- Foot plate of 304 stainless steel; hardened, smooth and ground.
- Double face marking system; can be used for digital levels and optical levels
7. Equipped with circular bubble and handles. Handles zinced and powder-coated
Manganese:
Manganese is a chemical element with the symbol Mn and atomic number 25. It is not found as a free element in nature; it is often found in minerals in combination with iron. Manganese is a transition metal with a multifaceted array of industrial alloy uses, particularly in stainless steels.
Package: 2pcs/aluminum Case; With extra outer carton box

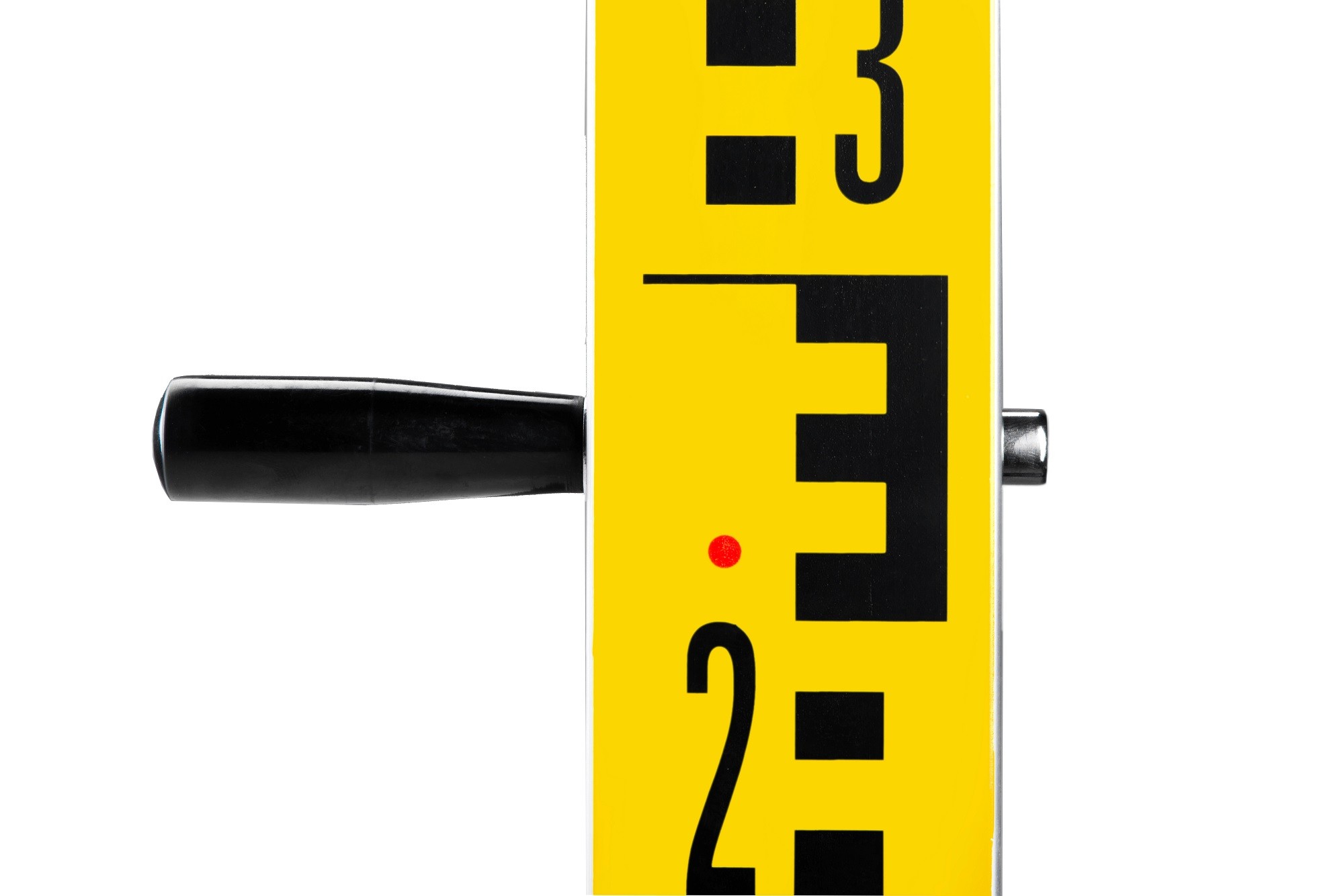

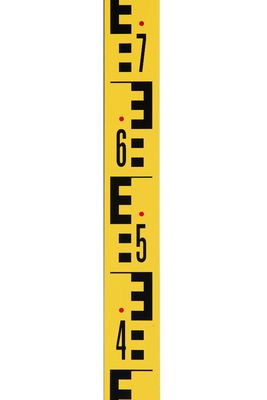

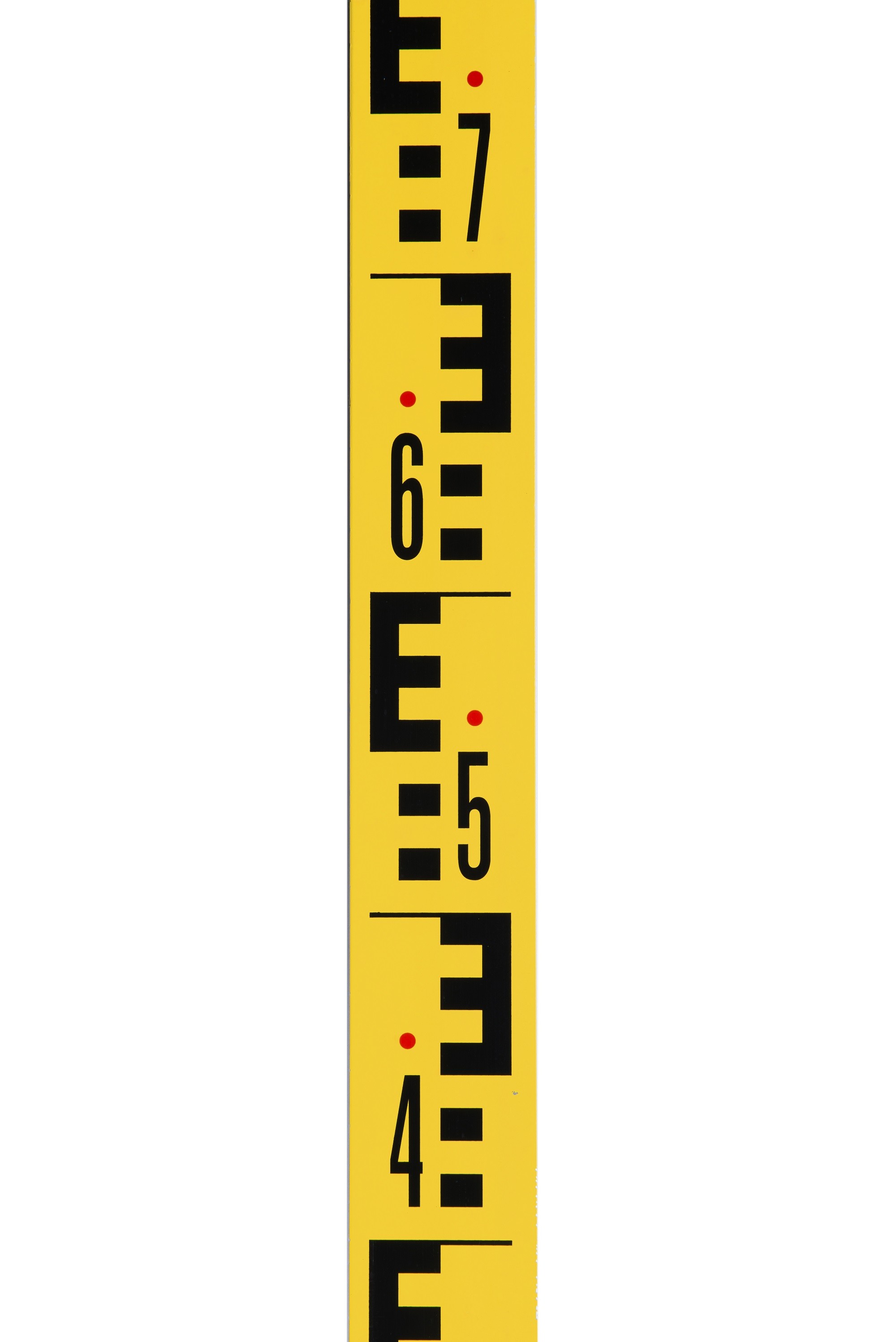

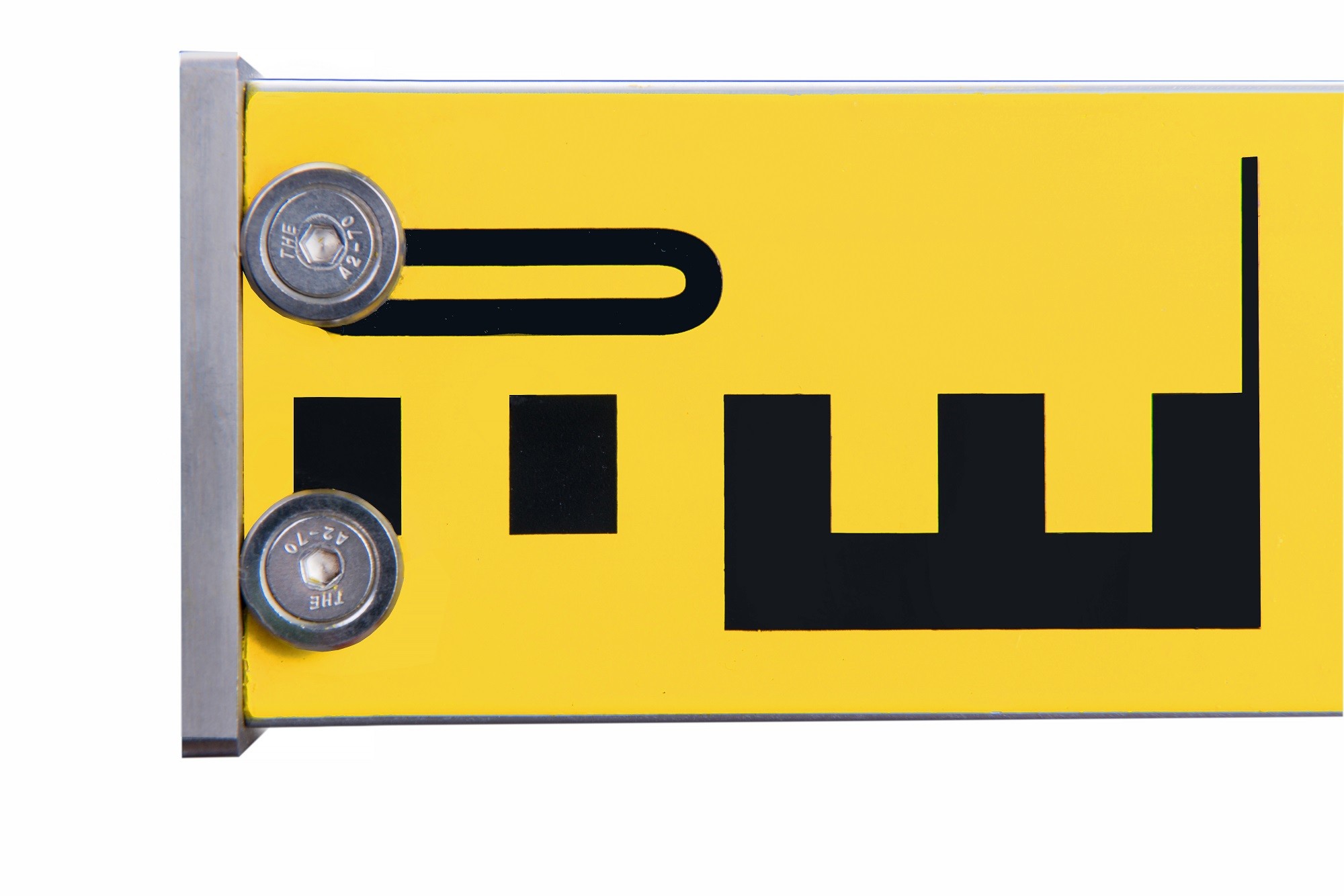

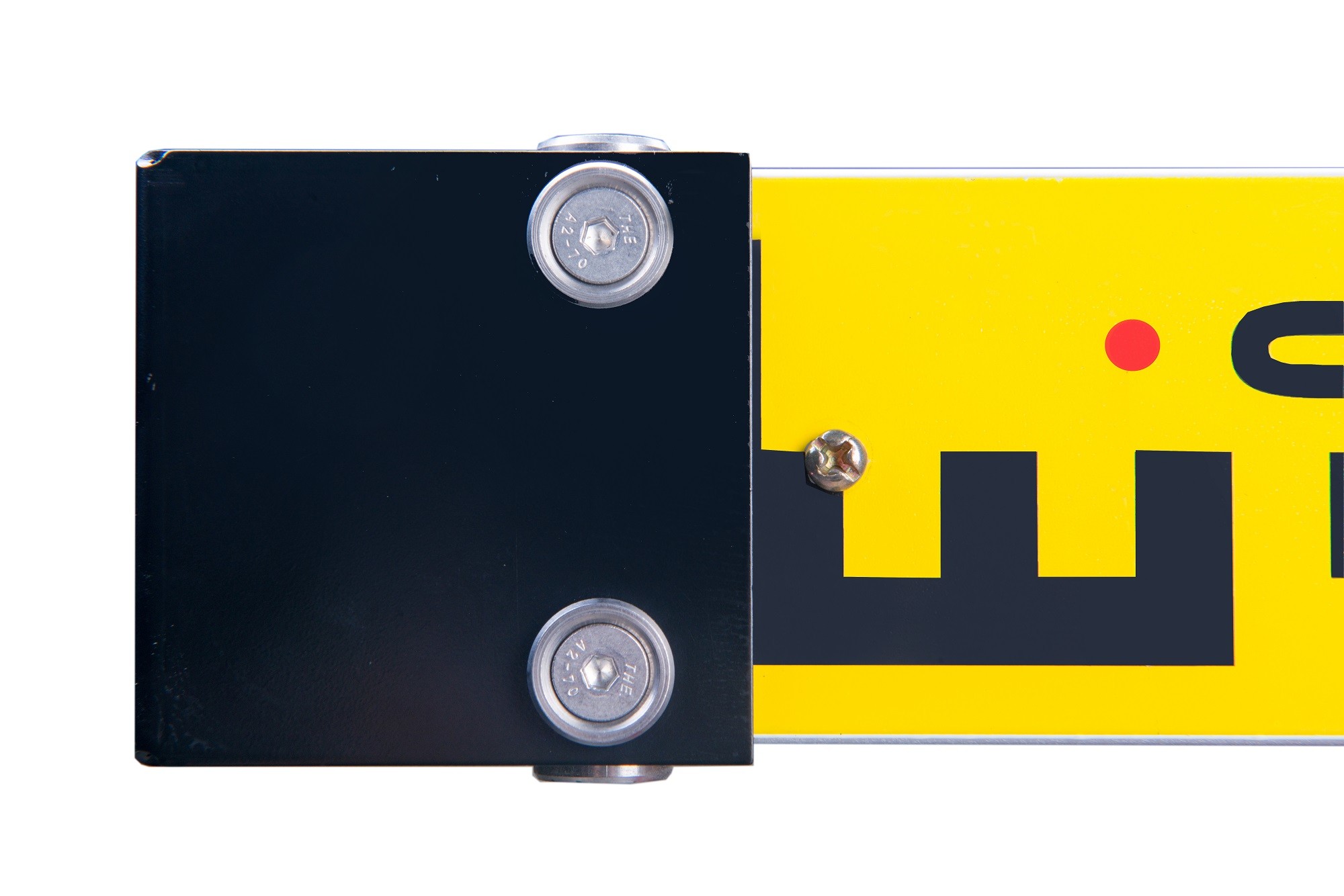

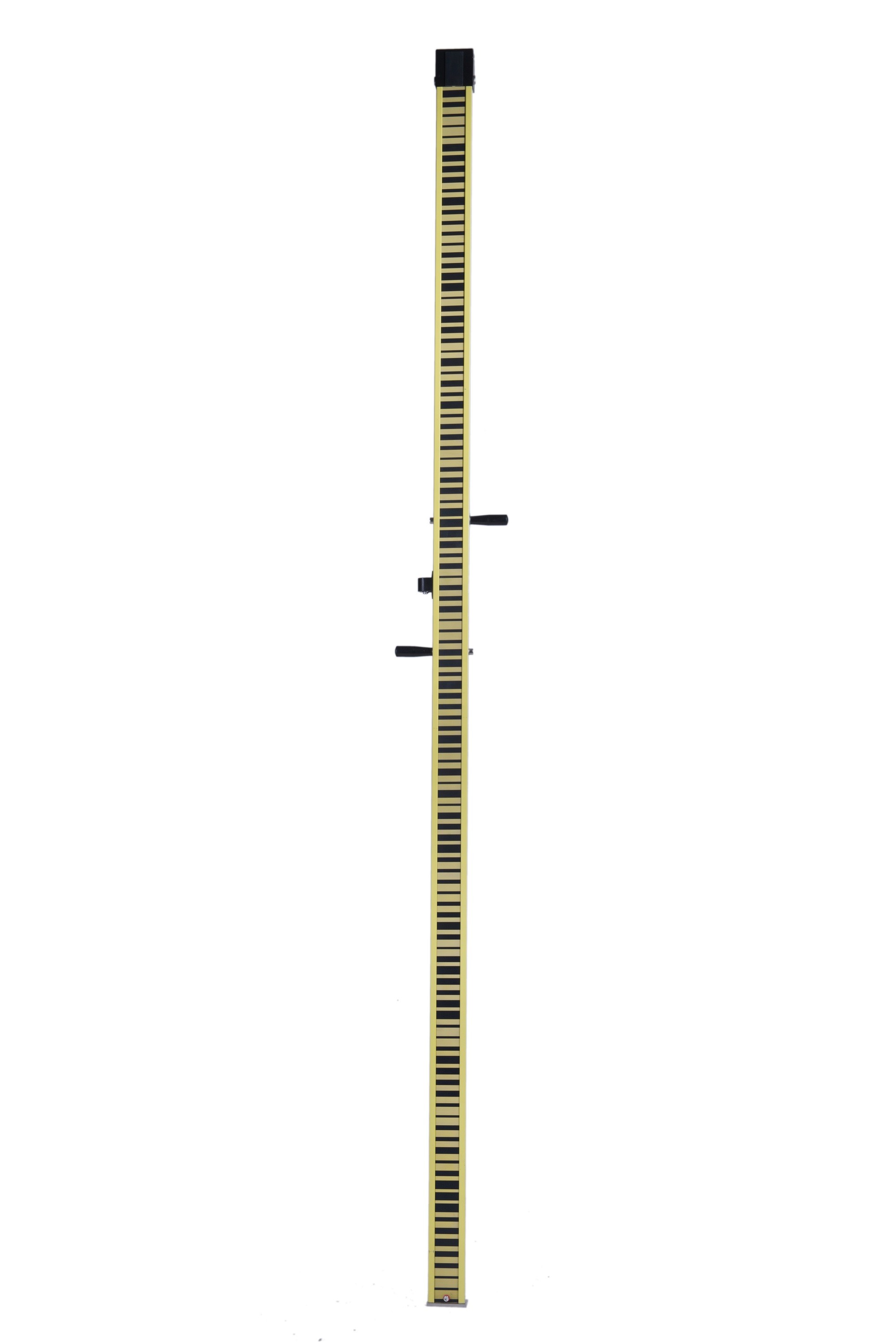

Detailed Pictures:
