Invar 10mm Graduated Telescopic Levelling Staff 10mm Leveling Rod Surveying ISG310
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ISG310 |
| Minimum Order Quantity | 2pcs |
| Price | 700USD~1000USD |
| Packaging Details | Aluminum Case and Carton Box |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ISG310 | Used For | Different Brands Optical Levels |
|---|---|---|---|
| Random Graduation Errors | ≤ 2μm | Length | 3m |
| Net Weight | 13Kg/Pc | Gross Weight For 2pcs With Package | 33Kg |
| Material | Invar Tape | Color | Yellow |
| LED Light Strip | Optional | Graduation | 10mm |
| Invar Tape Specification | 0.7×25mm | Rod Body Straightness | ≤4mm |
| Error Of Every Meter | ≤0.04mm | Package | Aluminum Case |
| Catagory | Optical Level Accessory | ||
| Highlight | Invar Telescopic Levelling Staff,10mm Telescopic Levelling Staff,10mm leveling rod surveying |
||
Product Description

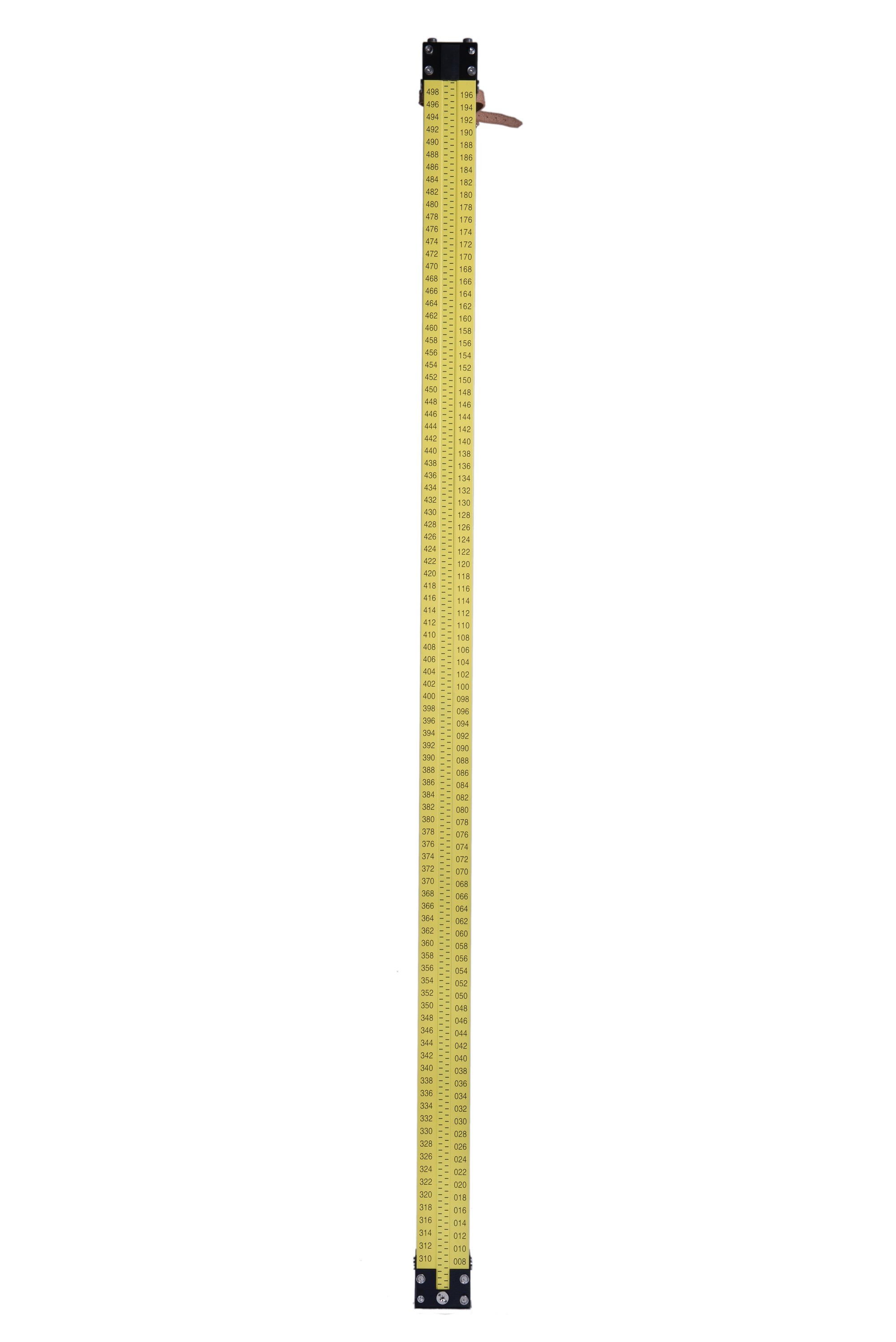

ISG310 3m Invar Rod Gruadated with 10mm High Accuracy Leveling Staff for Different Brands Optical Levels
Model: ISG310
Technical Data:
| Model | ISG310 |
| Used For | Optical level |
| Random Graduation Errors: | ≤ 2μm |
| Length | 3m |
| Net Weight | 13Kg/Pc |
| Gross weight for 2pcs with Package | 33Kg |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optional |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |

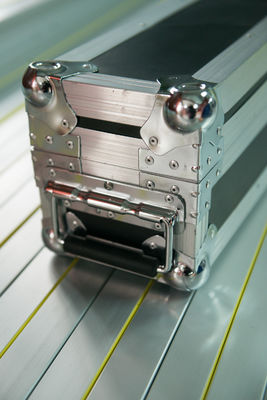

| Package | Aluminum Case |
Overview:

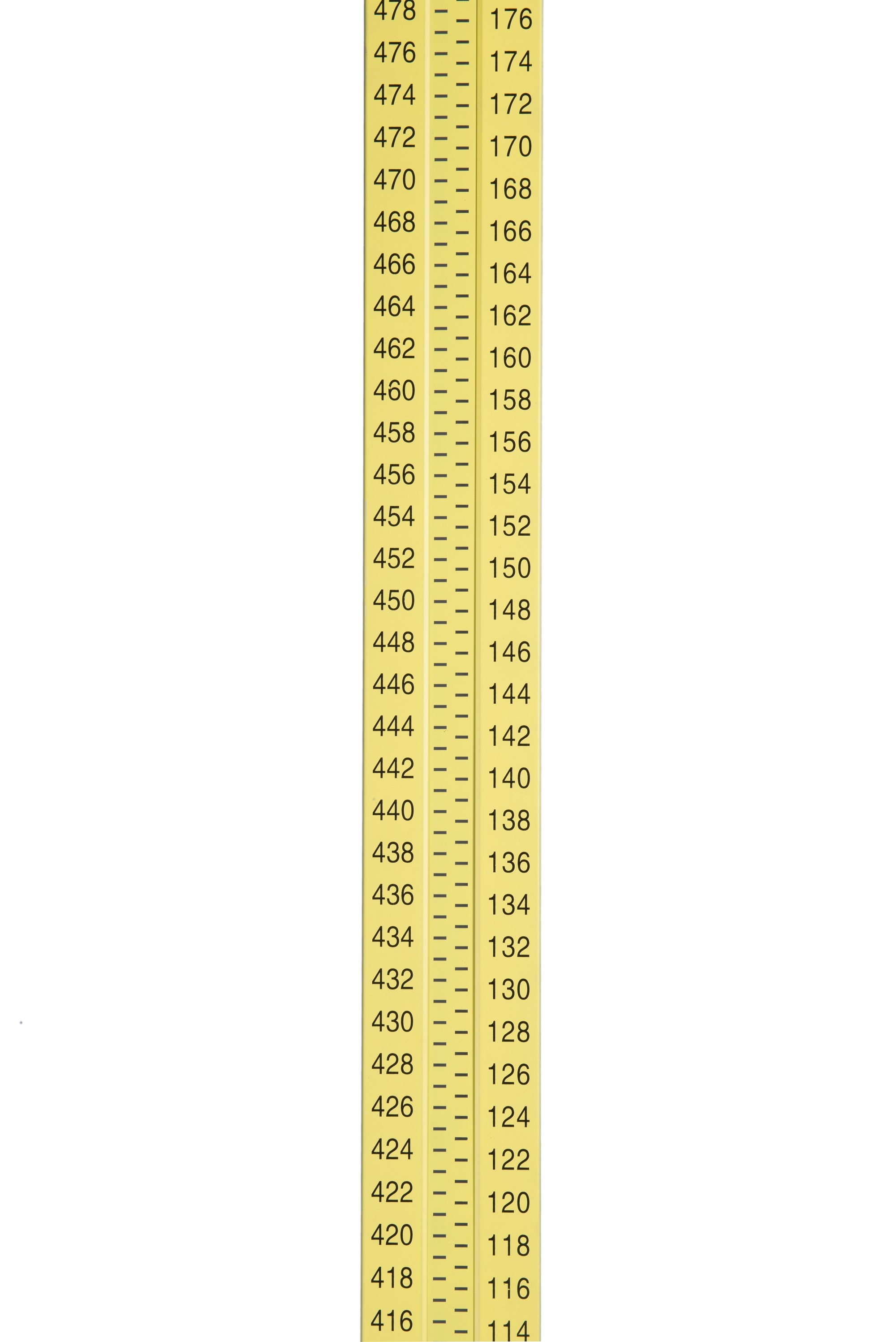

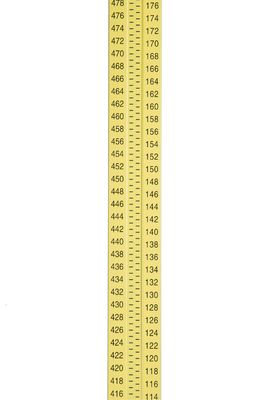

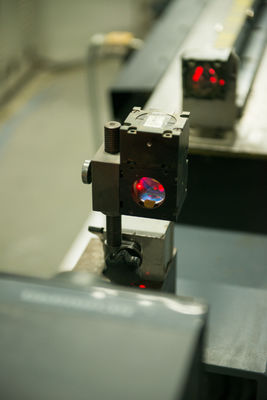

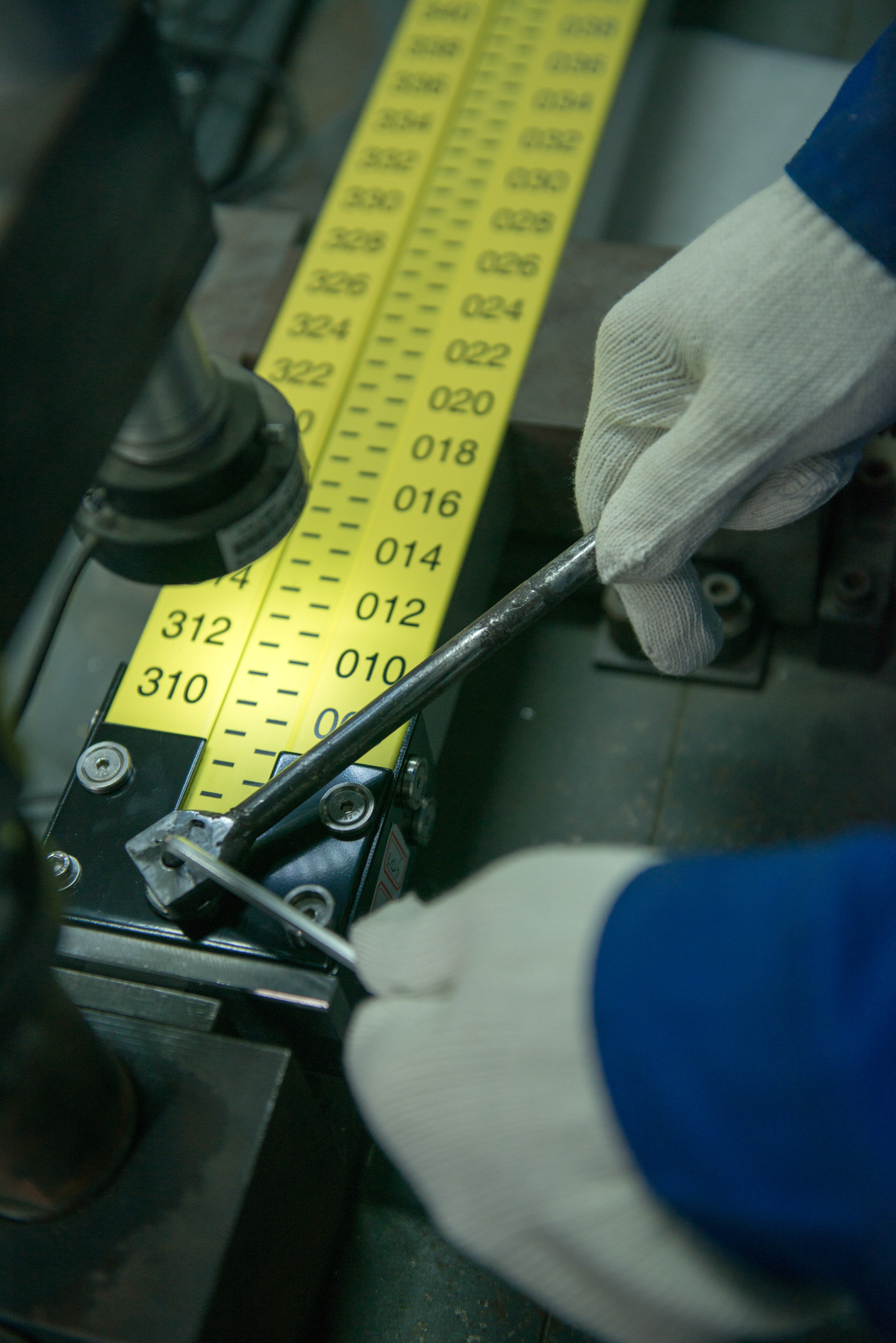

The essence of manufacturing Invar levelling staff is the formation of strips on the Invar tape. Leosurvey possesses advanced coding and engraved system and technology. It takes laser interferometer as length standard. The graduation of the precision Invar levelling staff is engraved in the paint coating with an interferometrically controlled laser beam, ensuring superior graduation accuracy and edge sharpness.
We can supply both barcoded staff and graduated staff for customers. Barcode marking staff is used for digital levels and graduated marking staff is used for optical levels.
So far we have supplied levelling staffs for many different levels brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.
50cm 1m 2m 3m are available.
Highlights:
- Superior graduation accuracy and high quality image of stripes.
- Body of the Invar staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.

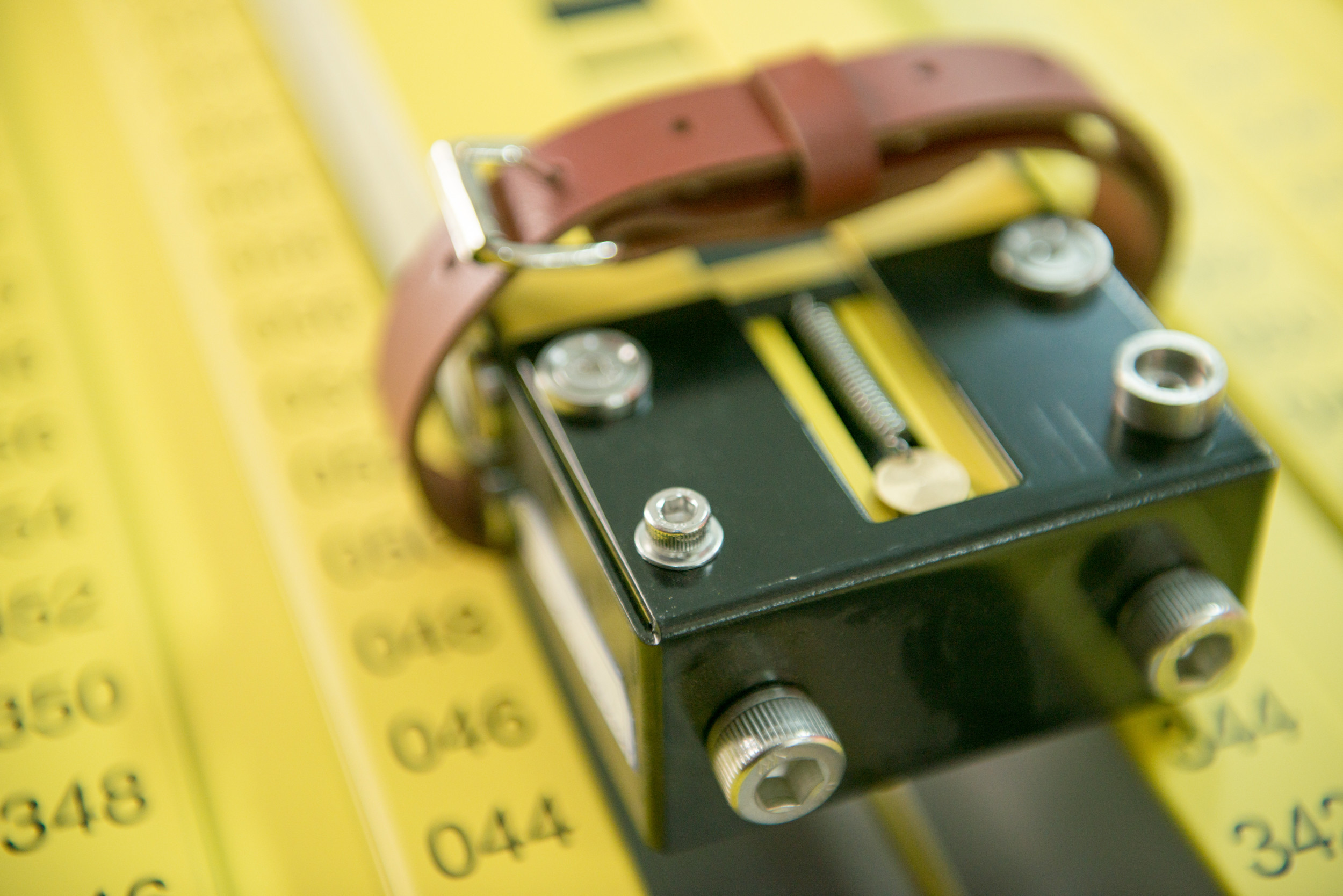

- Invar tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
- Foot plate of chrome-alloy; hardened, smooth and ground.
- Equipped with two circular bubbles and fold-away handles. Handles zinced and powder-coated.
- Staff Length is customizable according to customers’ needs.
- LED strip lights is optional. It can be used in mines, tunnels, night-time construction sites. Equipped with two pieces of power bank.
