Invar Barcoded Telescopic Levelling Staff Base Plate 2um Accuracy Digital Level Rod
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ISB1 |
| Minimum Order Quantity | 1pc |
| Price | 1000USD~1100USD |
| Packaging Details | Aluminum Case and Carton Box |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Product Details
| Model | ISB1 | Used For | Digital Levels |
|---|---|---|---|
| Random Graduation Errors | ≤ 2μm | Length | 1m |
| Net Weight | 7Kg/Pc | Material | Invar Tape |
| Color | Yellow | Graduation | Barcoded |
| Invar Tape Specification | 0.7×25mm | Rod Body Straightness | ≤4mm |
| Error Of Every Meter | ≤0.04mm | Package | Aluminum Case |
| Catagory | Level Accessory | Cutomizable | Yes |
| High Light | 1m Telescopic Levelling Staff,Invar Telescopic Levelling Staff,Invar Digital Level Rod |
||
Product Description

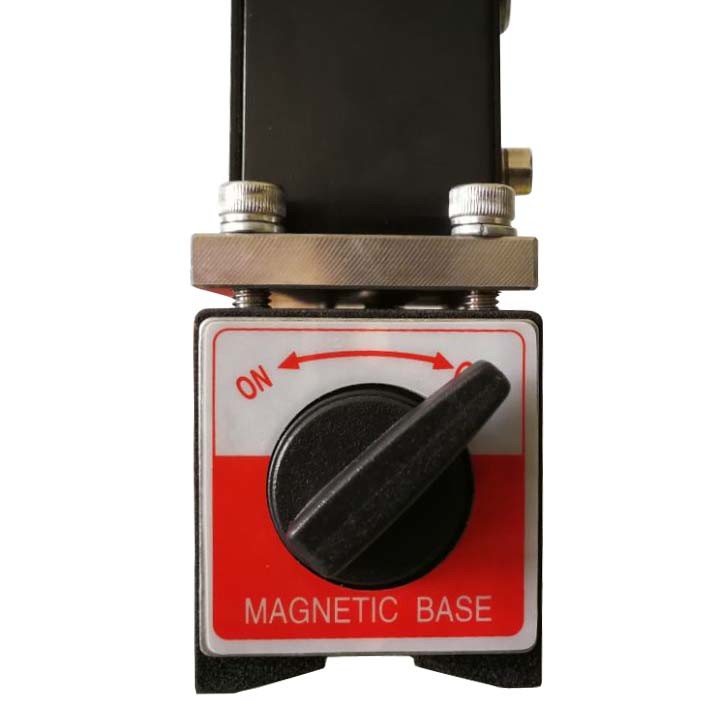

1m Cutomizable Precision Baroded Invar Staff Surveying Rods with Megnetic Base for Digital Levels
Model: ISB1
Specification:
| Model | ISB1 |
| Used For | Digital level |
| Random Graduation Errors: | ≤ 2μm |
| Length | 1m |
| Net Weight | 7Kg/Pc |
| Customizable | Yes |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optical |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |
| Package | Aluminum Case |
The barcodes can be supplied for the following brands:
Leica DNA and LS digital level
Leica Sprinter digital level
GeoMax SDL digital Level
FOIF EL series digital level
South DL series digital level
Topcon DL10 and DL5 digital level
Sokkia SDL sereies digital level
Trimble DINI digital level
Invar Staff Rods Introduction
Invar Grade Rods are used in land surveying when first-order high-precision elevation leveling is to be performed. The Grade Rod, also known as Leveling Rods and Leveling Staff are made of Invar which is a nickel–iron alloy notable for its uniquely low coefficient of thermal expansion. The name "Invar" comes from the word invariable, which refers to its relative lack of expansion or contraction with temperature changes which directly lends itself to making the most reliable rod for measuring elevation changes in land.
Leosurvey Invar Rods Features
- Superior graduation accuracy and high quality image of stripes.

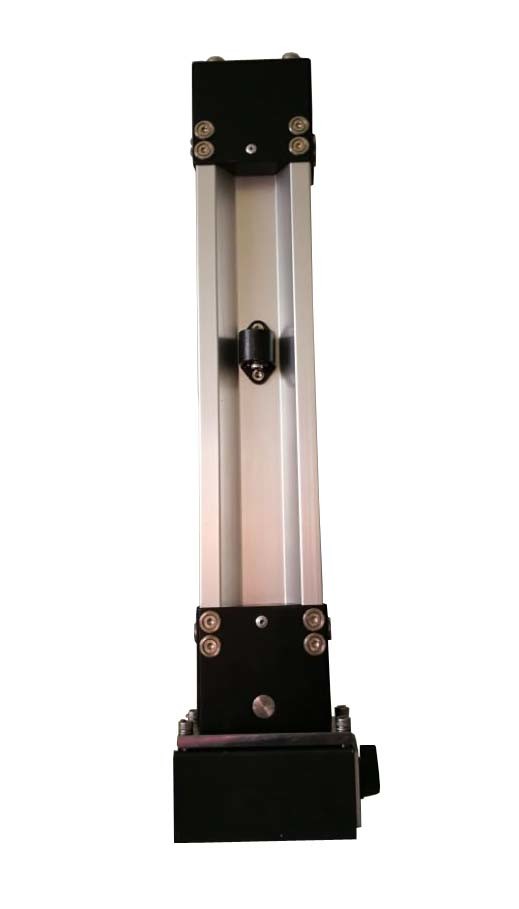

- Body of the Invar staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
- Invar tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
- Foot plate of chrome-alloy; hardened, smooth and ground.
- Equipped with two circular bubbles and fold-away handles. Handles zinced and powder-coated.
- Staff Length is customizable according to customers’ needs.
- LED strip lights is optional. It can be used in mines, tunnels, night-time construction sites. Equipped with two pieces of power bank.
Leosurvey Barcoded Staffs:
We can supply both barcoded staff and graduated staff for customers. Barcode marking staff is used for digital levels and graduated marking staff is used for optical levels.

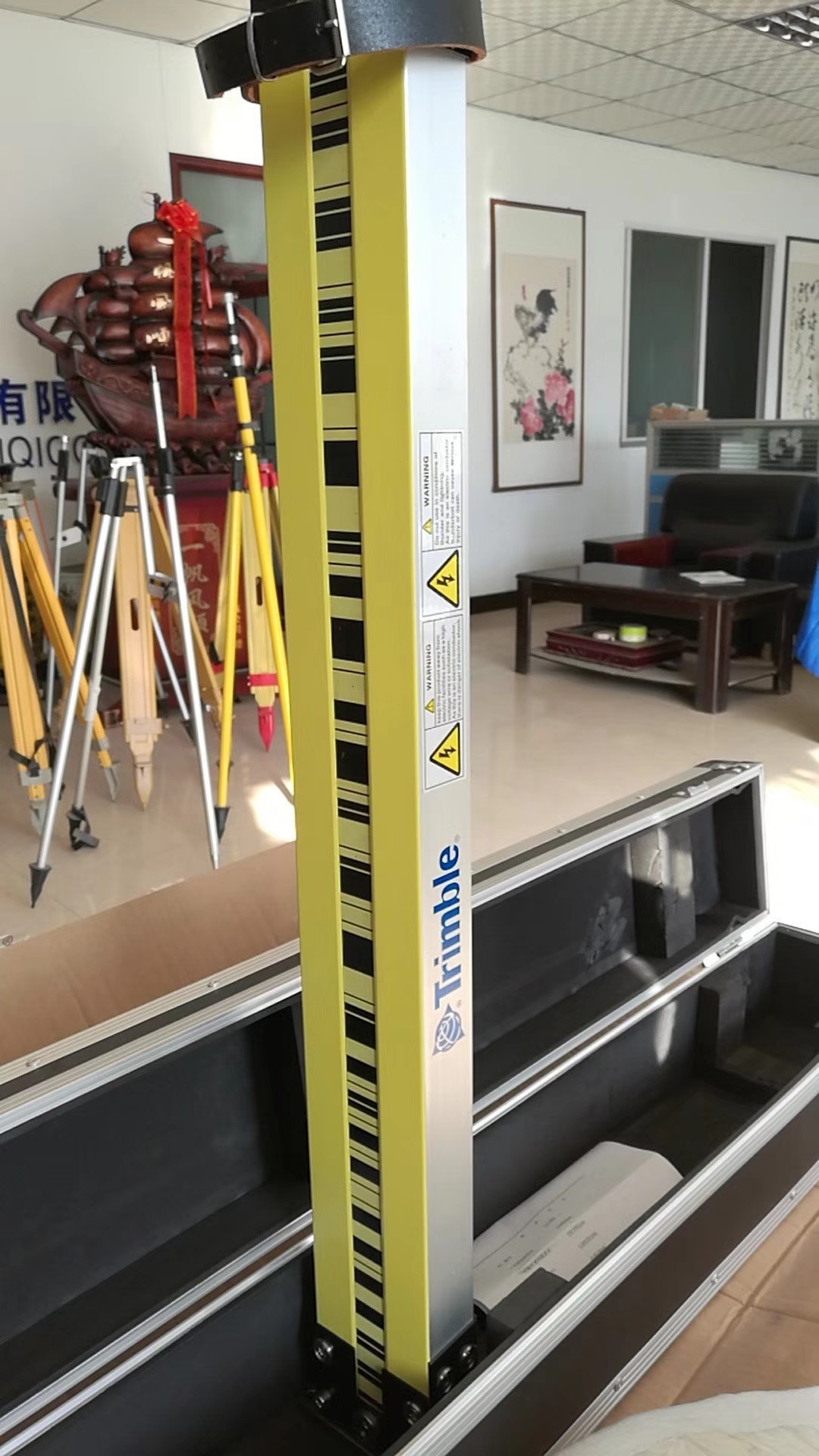

So far we have supplied levelling staffs for many different levels brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.
50cm 1m 2m 3m are available.

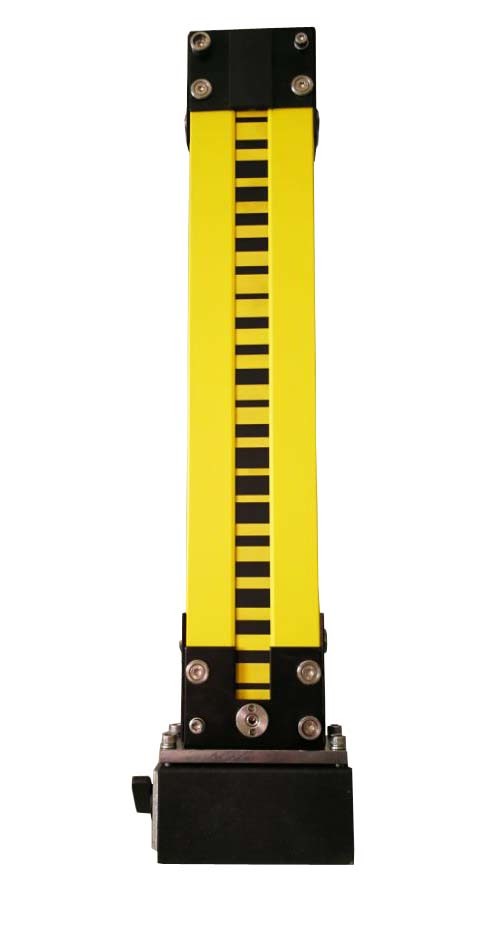

Detailed Pictures:
