2m 24Kg Invar Barcoded Levelling Rod Staff Extendable Measuring Pole Digital Level
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ISBF2 |
| Minimum Order Quantity | 2pcs |
| Price | 1000USD~1100USD |
| Packaging Details | Aluminum Case and Carton Box |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Product Details
| Model | ISBF2 | Used For | FOIF EL Series Digital Level |
|---|---|---|---|
| Random Graduation Errors | ≤ 2μm | Length | 2m |
| Net Weight | 7.5Kg/Pc | Gross Weight For 2pcs With Package | 24Kg |
| Material | Invar Tape | Color | Yellow |
| LED Light Strip | Optional | Graduation | Barcoded |
| Invar Tape Specification | 0.7×25mm | Rod Body Straightness | ≤4mm |
| Error Of Every Meter | ≤0.04mm | Package | Aluminum Case |
| Catagory | South Level Accessory | ||
| High Light | Invar extendable measuring pole,Pc extendable measuring pole,Invar telescopic measuring pole |
||
Product Description

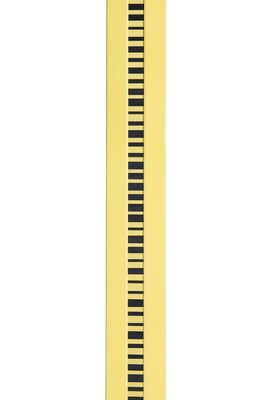

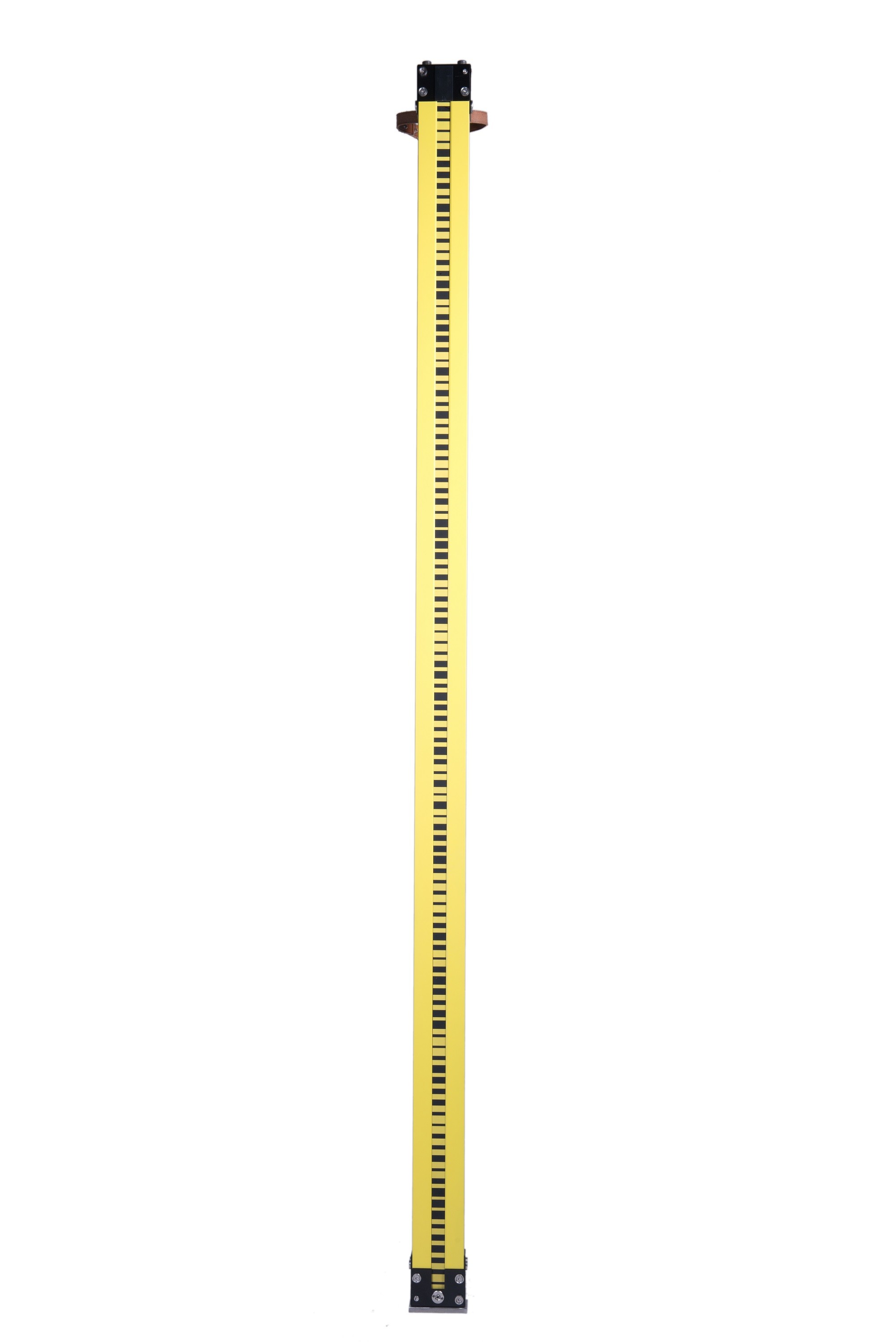

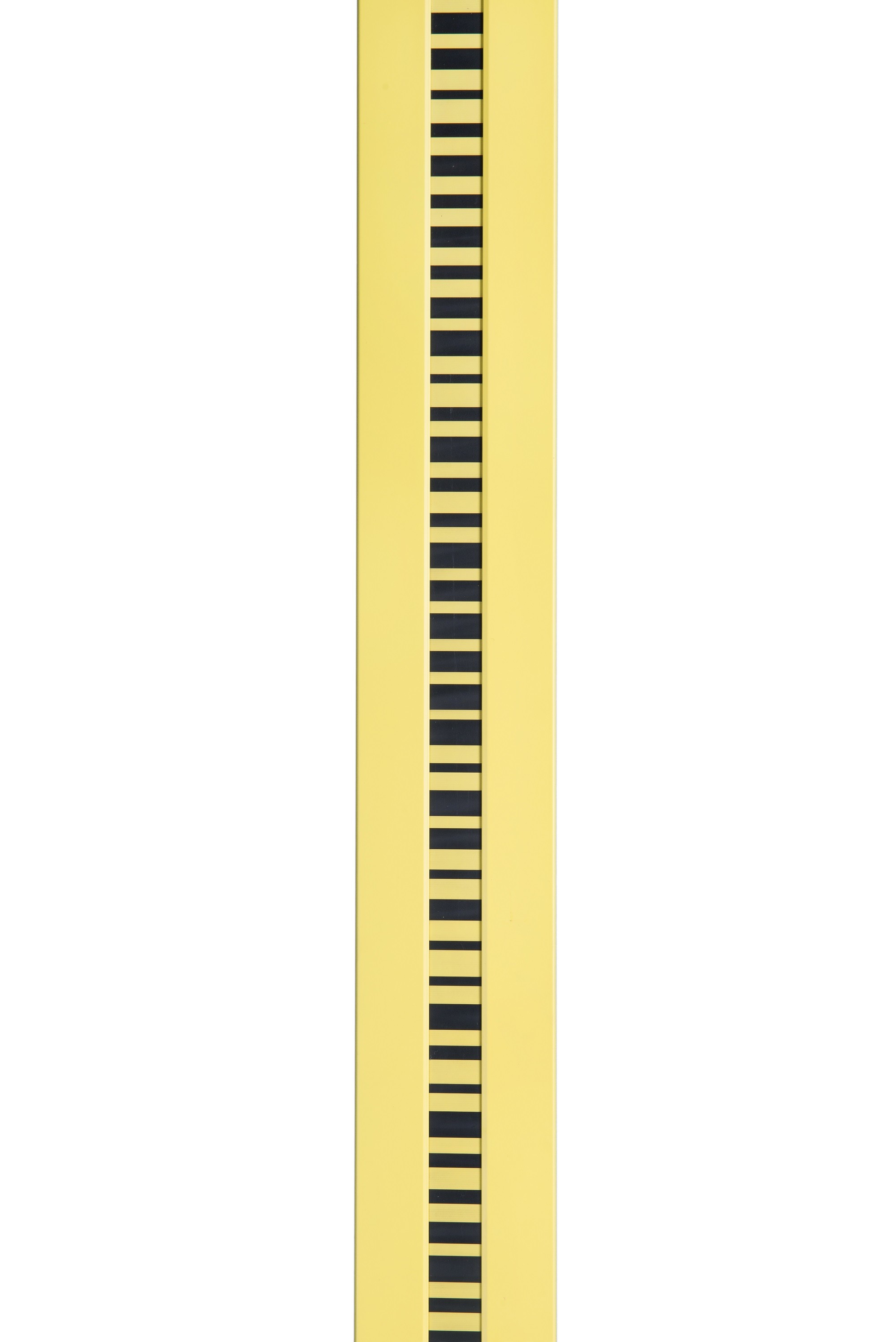

2m Barcoded High Standard Quality Invar Staff for FOIF EL302A/20/03/28 Digital Level
Model: ISBF2
Specification:
| Model | ISBF2 |
| Used For | FOIF digital level EL Series |
| Random Graduation Errors: | ≤ 2μm |
| Length | 2m |
| Net Weight | 13Kg/Pc |
| Gross weight for 2pcs with Package | 24Kg |
| Material | Invar tape |
| Color | Yellow |
| LED Light Strip | Optional |
| Invar Tape Specification | 0.7×25mm |
| Rod Body Straightness | ≤4mm |
| Error of Every Meter | ≤0.04mm |
| Package | Aluminum Case |
Used For the Following Digital Levels:
EL302A
EL20
EL03
EL28
FOIF EL Digital Level
EL20 digital level is designed with new code processing and auto-leveling technology. Its outstanding features make EL20 applied for the 3rd and 4th order leveling and construction measurement.
Additonal Devices For Options:
1. 3Kg/5Kg Foot Plate of Invar Staff

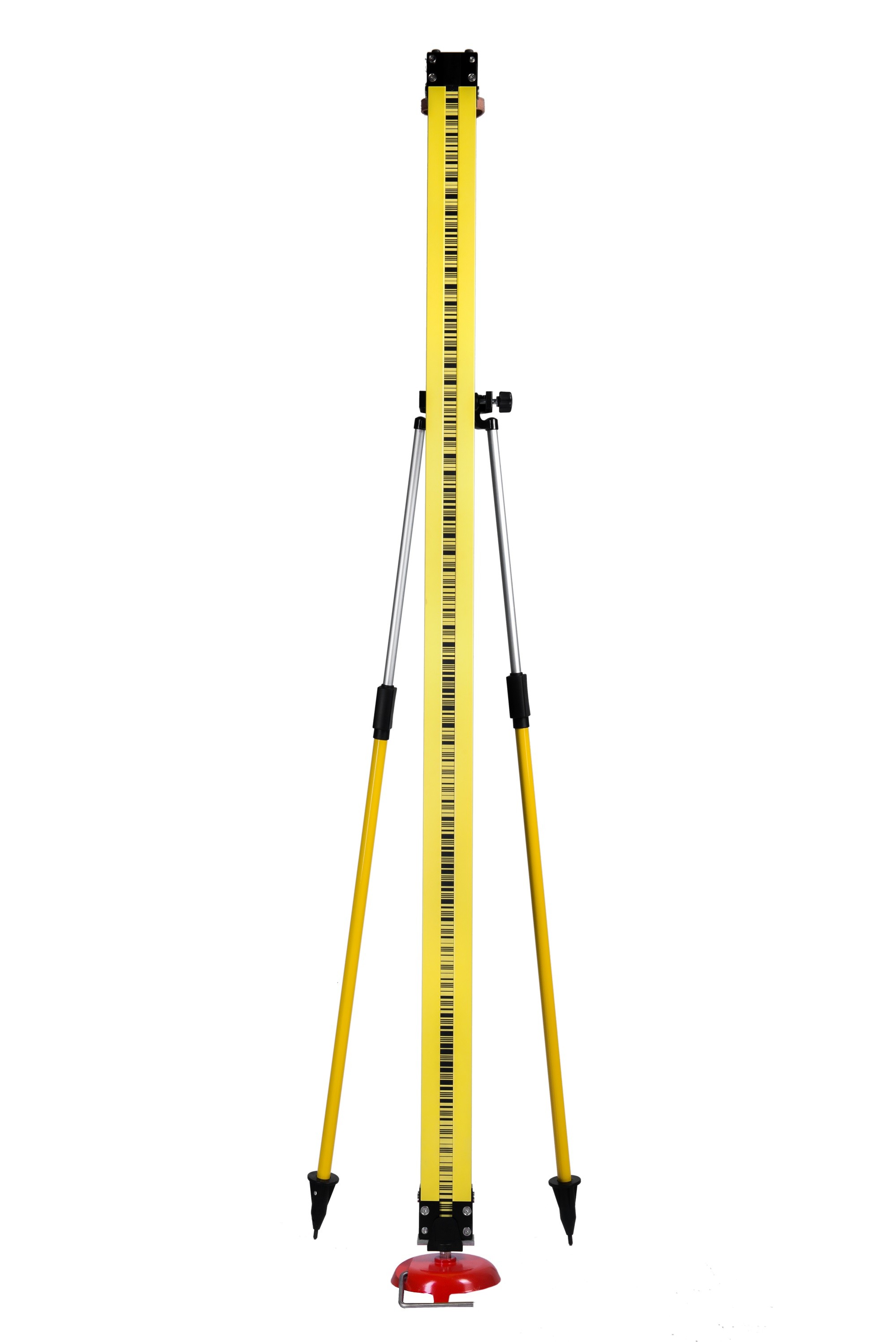

2. Invar Staff Supports
3. LED Light Strip
Surveying Accessory Invar Rods
Invar Grade Rods are used in land surveying when first-order high-precision elevation leveling is to be performed. The Grade Rod, also known as Leveling Rods and Leveling Staff are made of Invar which is a nickel–iron alloy notable for its uniquely low coefficient of thermal expansion. The name "Invar" comes from the word invariable, which refers to its relative lack of expansion or contraction with temperature changes which directly lends itself to making the most reliable rod for measuring elevation changes in land.
Introduction of ISBF2 Invar Rods:
1. 2m Invar rods (Invar staff) for Digital Level FOIF EL Series.
2. Sell in pairs (2pcs). 2 Pieces will be packed in an aluminium case.
3. Aluminum case cost is included. Extra paper carton as outer package.
4. With high accuracy Random Graudation Errors less than 2μm
5. Highest standard accuracy invar staff in Chinese market

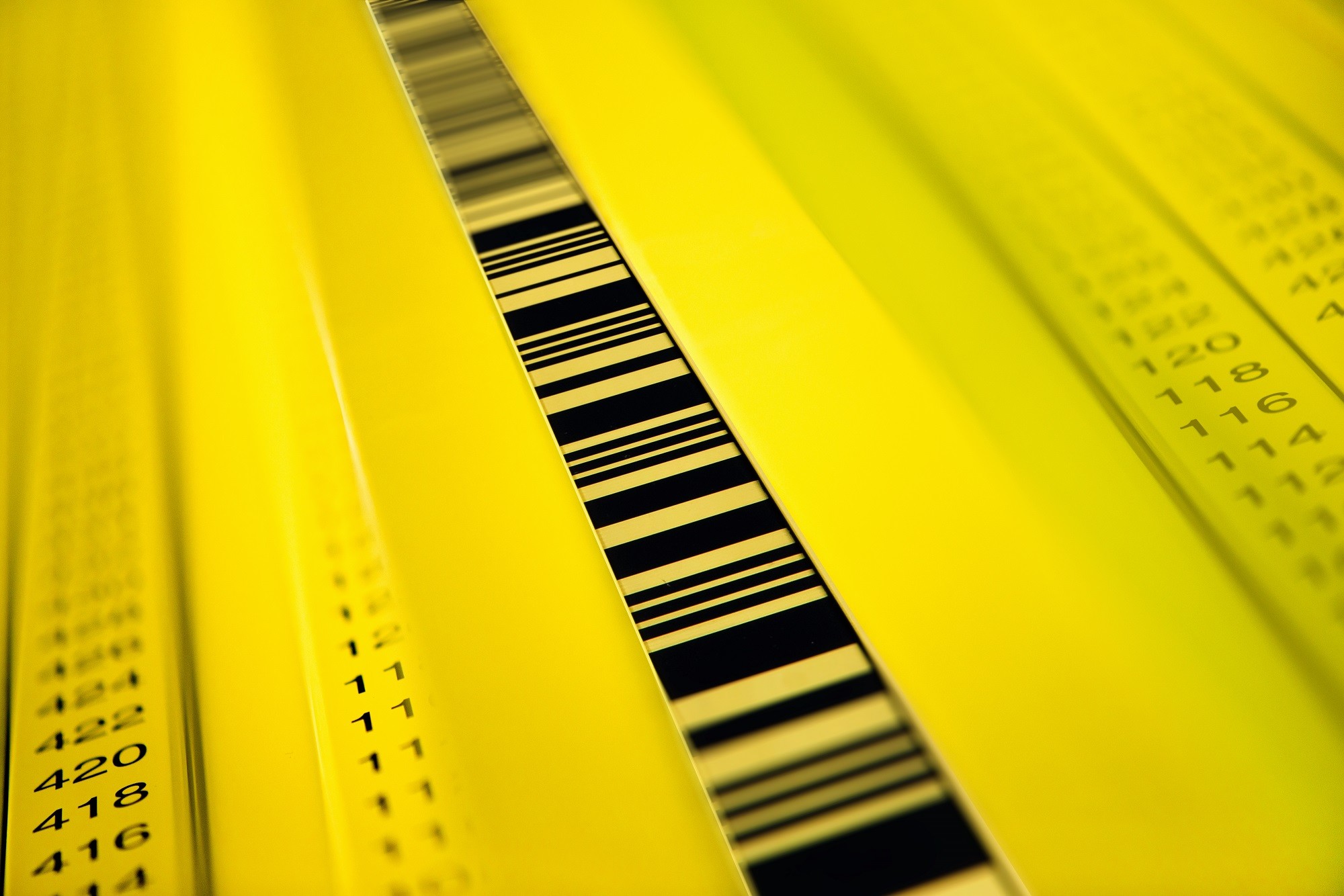

6. Barcodes are laser making but not printed (most factories are printed), which gurantees the high accuracy.
7. Speical length (e.g 50cm or any length less than 2m) can be supplied as customer's needs.

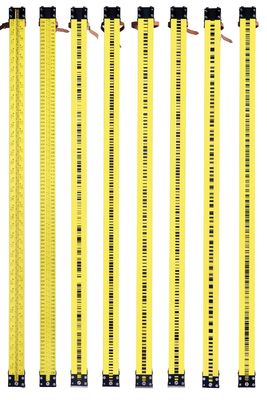

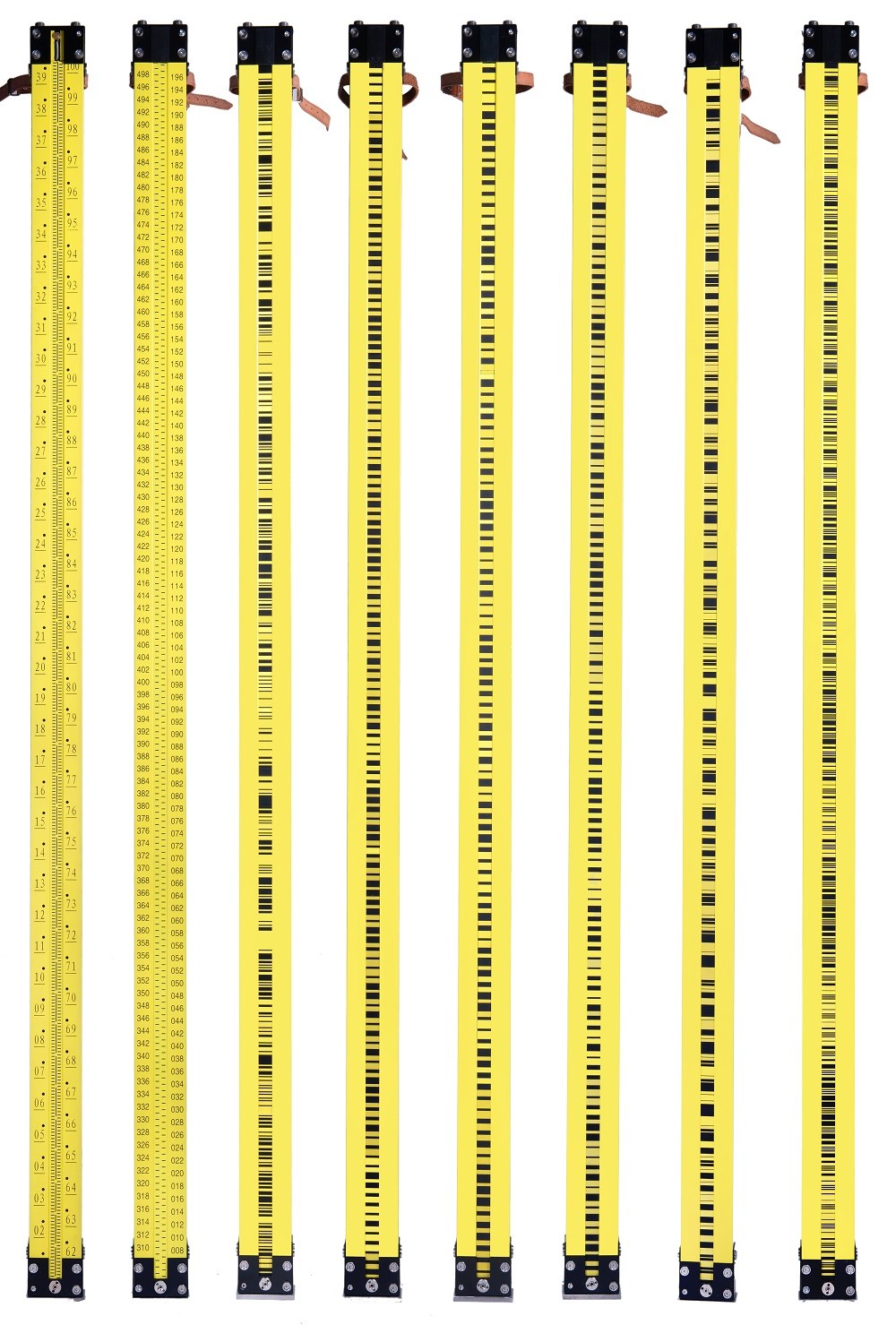

Leosurvey Barcoded Staffs:
We can supply both barcoded staff and graduated staff for customers. Barcode marking staff is used for digital levels and graduated marking staff is used for optical levels.
So far we have supplied levelling staffs for many different levels brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.
50cm 1m 2m 3m are available.

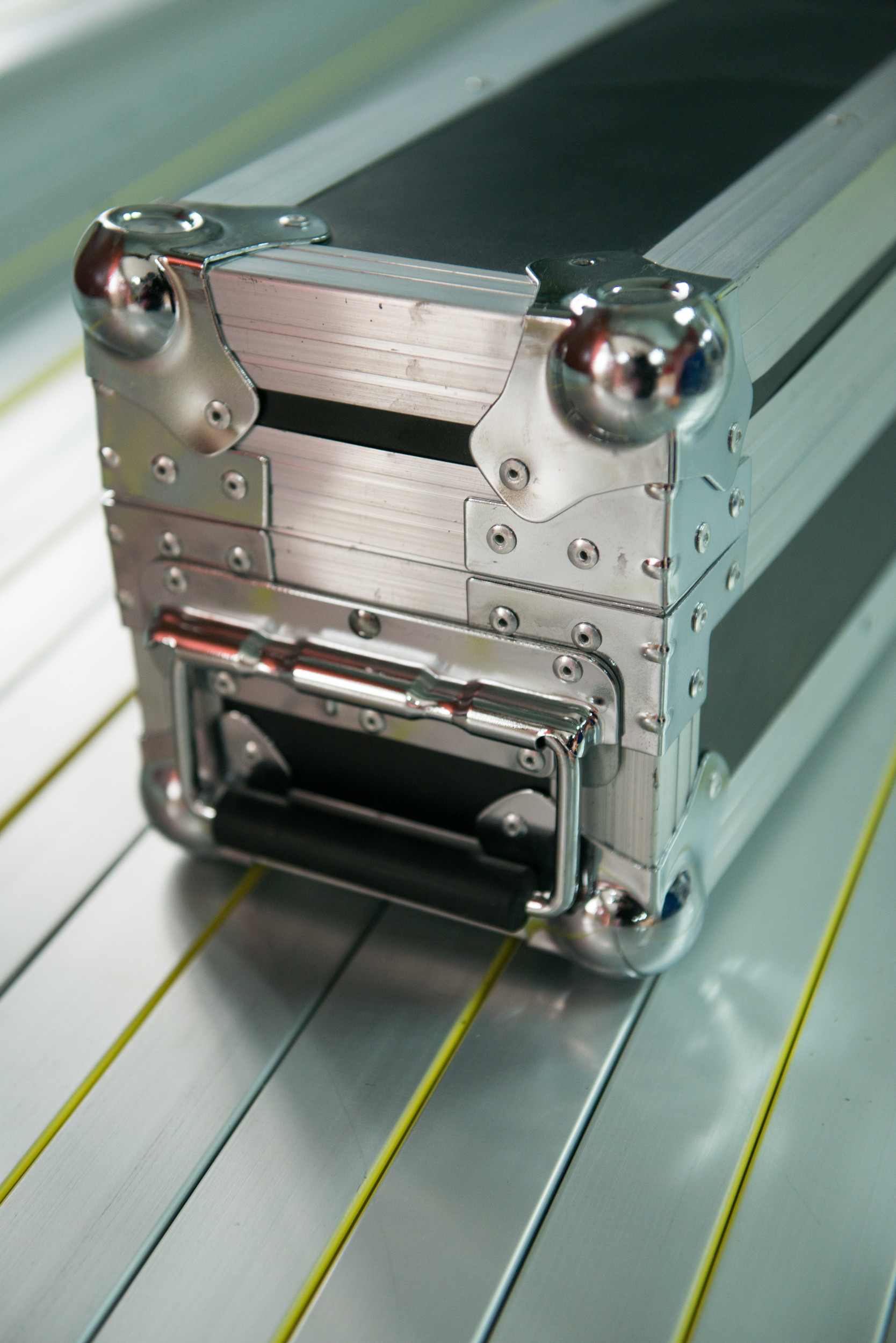

Package: 2pcs/pair in one aluminum case
