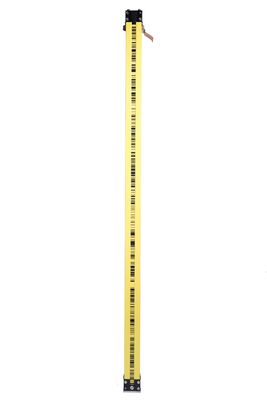

ISBLD3 3m Invar Rod Leveling Staff For Leica DNA and LS Digital Levels

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ISBLD3
Minimum Order Quantity 2pcs
Price 1200USD~1300USD

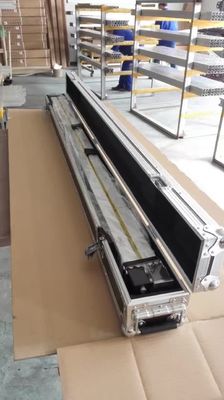

Packaging Details Aluminum Case and Carton Box
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model ISBLD3 Used For Leica DNA And LS Digital Level
Random Graduation Errors ≤ 2μm Length 3m
Net Weight 13Kg/Pc Gross Weight For 2pcs With Package 33Kg
Material Invar Tape Color Yellow
LED Light Strip Optional Graduation Barcoded
Invar Tape Specification 0.7×25mm Rod Body Straightness ≤4mm
Error Of Every Meter ≤0.04mm Package Aluminum Case
Catagory Level Accessory
Leave a Message
Product Description

ISBLD3 3m Invar Rod Leveling Staff For Leica DNA and LS Digital Levels



Model: ISBLD3



Technical Data:

Model ISBLD3
Used For Leica DNA and LS digital level
Random Graduation Errors: ≤ 2μm
Length 3m
Net Weight 13Kg/Pc
Gross weight for 2pcs with Package 33Kg
Material Invar tape
Color Yellow
LED Light Strip Optional
Invar Tape Specification 0.7×25mm
Rod Body Straightness ≤4mm
Error of Every Meter ≤0.04mm
Package Aluminum Case



Overview:

The essence of manufacturing Invar levelling staff is the formation of strips on the Invar tape. Leosurvey possesses advanced coding and engraved system and technology. It takes laser interferometer as length standard. The graduation of the precision Invar levelling staff is engraved in the paint coating with an interferometrically controlled laser beam, ensuring superior graduation accuracy and edge sharpness.



We can supply both barcoded staff and graduated staff for customers. Barcode marking staff is used for digital levels and graduated marking staff is used for optical levels.

So far we have supplied levelling staffs for many different levels brands like Trimble, Topcon, Leica, GeoMax, South, Sokkia, etc.

50cm 1m 2m 3m are available.



Highlights:

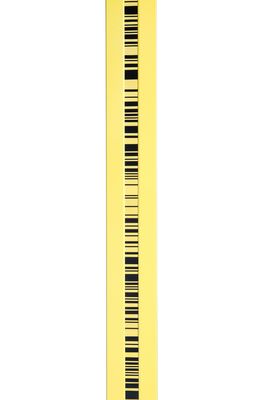

  1. Superior graduation accuracy and high quality image of stripes.
  2. Body of the Invar staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
  3. Invar tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.

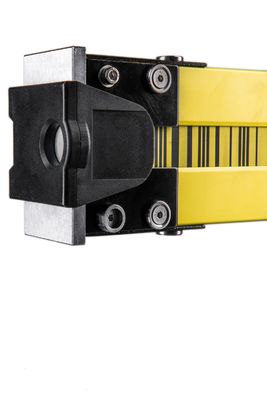

  4. Foot plate of chrome-alloy; hardened, smooth and ground.

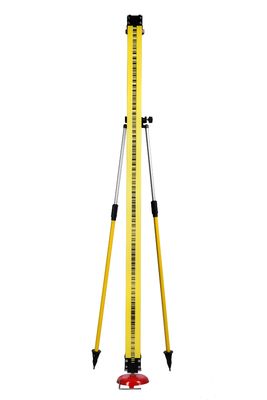

  5. Equipped with two circular bubbles and fold-away handles. Handles zinced and powder-coated.
  6. Staff Length is customizable according to customers’ needs.
  7. LED strip lights is optional. It can be used in mines, tunnels, night-time construction sites. Equipped with two pieces of power bank.
