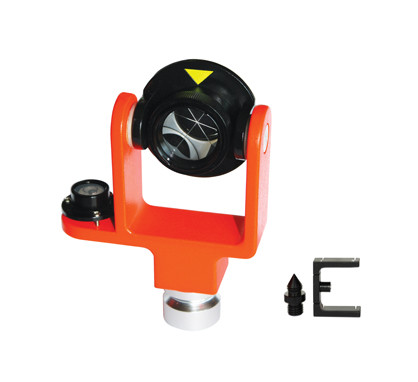

Circular Survey Mini Prism 25.4mm Female Mini Prism Set
| Place of Origin | China |
|---|---|
| Brand Name | Leosurvey |
| Certification | ISO |
| Model Number | ADSmini102-B |
| Minimum Order Quantity | 5 Pieces |
| Price | 20USD~25USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500sets per month |
Product Details
| Color | Red And Black | Holder | Metal |
|---|---|---|---|
| Offset | 0/-30mm | Prism Diameter | Φ25.4mm |
| Thread | 5/8” X 11 Female | Plumb Bob | Yes |
| Condition | New | Bubble | Circular On Side |
| High Light | Circular Survey Mini Prism,female Survey Mini Prism,25.4mm female mini prism set |
||
Product Description
ADSmini102-B Mini Prism Set with Side On-Board Vial Surveying Accessories
Model: ADSmini102-B
Specification:
| Model | ADSmini102-B |
| Color | Red and Black |
| Holder | Metal |
| Offset | 0/-30mm |
| Prism Diameter | Φ25.4mm |
| Color | Red and Black |
| Thread | 5/8” x 11 female |
| Bubble | Circular on side |
| Plumb Bob | Yes |
Features:
1. 25.4mm diameter prism
2. Black anodized sealed aluminium
3. 5/8” x 11 mounting Thread
4. 40-min adjustable circular side-mounted vial
5. With plumb bob prism point
6. 5/8” x 11 height extension
Leosurvey provides a wide range of total station survey prisms for every application. Our premium quality prisms have been rigorously tested and are trusted by our customers to provide reliable and accurate measurements on large construction projects across the US. The Optical Survey Prisms we provide can be used with any brand of total station including Topcon, Sokkia, Leica Geosystems, Trimble Geospatial, Nikon, GeoMax and NorthWest.
The range of a prism results from, among other things, its coating and the glass geometry. A number of Original prisms from Leica Geosystems have a special coating on the reflective surfaces – the Anti-Reflex Coating, and a copper coating on the reverse side. Without these, the range of distance measuring, ATR and Powersearch would be reduced by up to 30%. The workmanship and the durability of the copper coating are decisive for a long life. The glass dimensions, the position in the holder and with it the areal orientation, are important for measuring accuracy.
