Handheld Topcon Battery Pack Ps236 Battery Handheld Data Controller
| Place of Origin | China |
|---|---|
| Brand Name | Topcon |
| Certification | ISO CE |
| Model Number | PS236 |
| Minimum Order Quantity | 5 Pieces |
| Price | 50USD~60USD |
| Packaging Details | Box and Carton |
| Delivery Time | 3-5 work day |
| Payment Terms | T/T |
| Supply Ability | 500pcs per month |
Product Details
| Color | Black | Capacity | 5600mAh |
|---|---|---|---|
| Voltage | 3.6V | Cell Type | Li-lon |
| Condition | New | Weight | 130g |
| Temperature | 10~40 °C | Rechargeable | Yes |
| High Light | Handheld topcon battery pack,PS236 topcon battery pack,ps236 battery |
||
Product Description

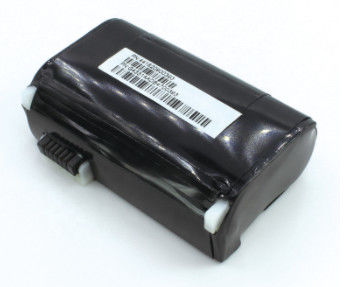

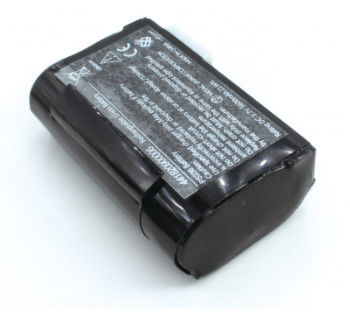

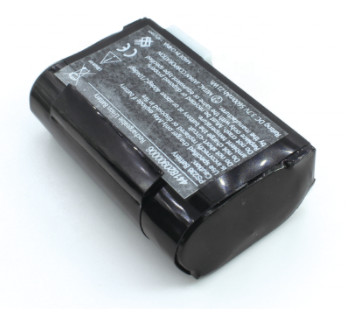

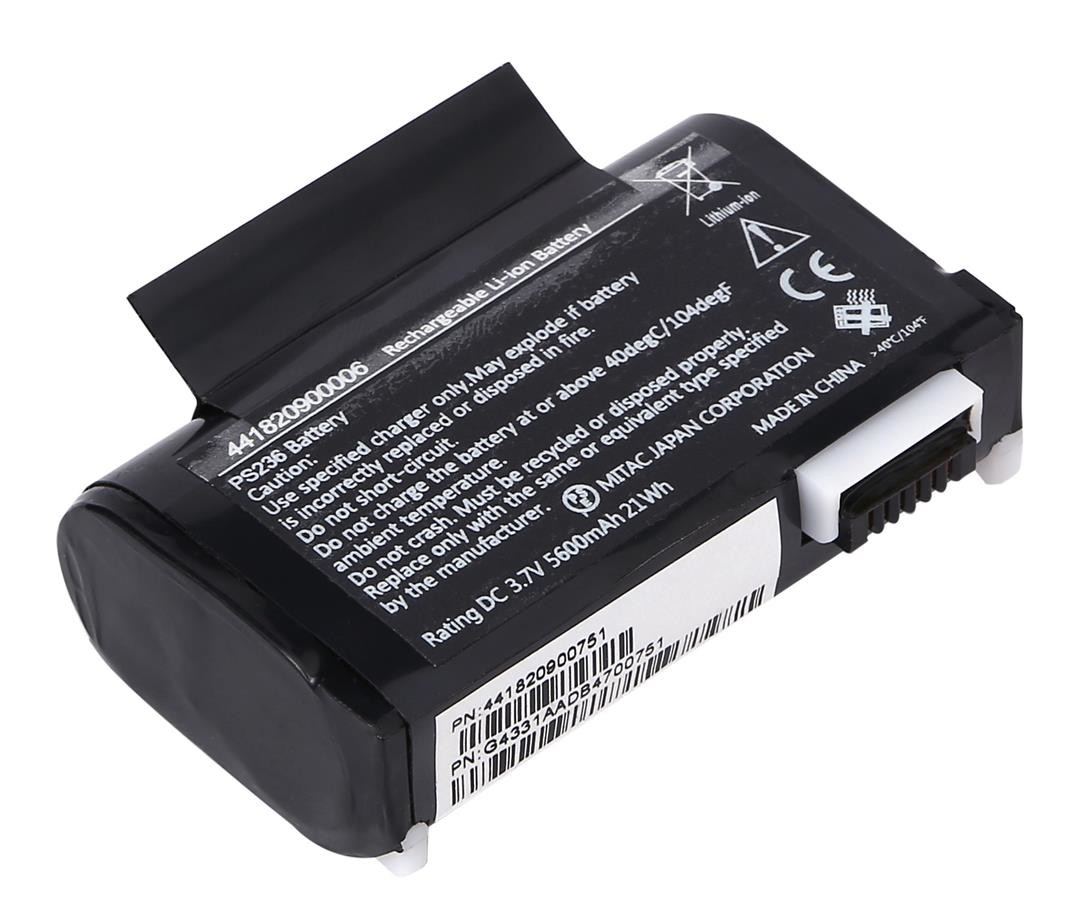

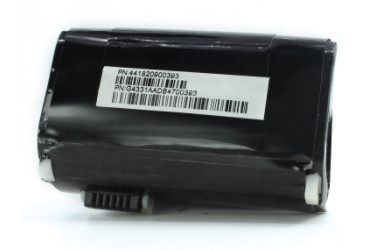

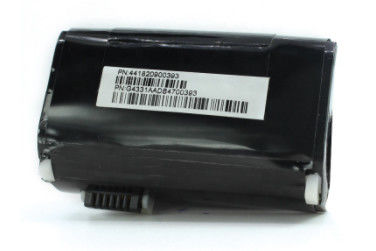

Topcon PS236 Battery for Getac PS236 PS336 Handheld Data Controller
Model: PS236
Specifications:
Capacity: 5600mAh
Weight: 130g
Color: Black
Fits Models: Getac PS236 PS336
Cell Type: Li-lon
Voltage: 3.7V
Used For:
441820900006, 60991, PS236B, PS236, PS336, Nautiz X7, SHC-236, SHC-336. FC-236, FC-336
Features:
This Brand New Getac PS236 Battery is fully compatible with original barcode scanners. It is guaranteed to meet or exceed the original equipment manufacturer's specifications. Our Getac PS236 replacement battery comes with 12 months warranty.
Memory effect
The «Memory Effect» occurs if the same charging and discharging (partial discharge) conditions are continuously applied to a battery. The battery then no longer provides the full capacity. The operating time per battery charge reduces. If the capacity of the battery drops noticeably, it is recommended to subject the battery to the refresh function 2 to 3 times. The memory effect occurs particularly with NiCd batteries. With NiMH batteries the memory effect is not so pronounced. Li-Ion batteries are not influenced by the memory effect.
Battery refresh function
If the capacity of a NiCd or NiMH battery drops noticeably, the battery can be refreshed using two to three full charge and discharge cycles. The GKL221 Charging Station has a discharging and charging function for refreshing batteries. Since GKL112 and GKL211 do not have a discharge function the batteries are to be discharged in the instrument (i.e. operate until the instrument switches off).
Defective batteries
Even in the case of correct handling, it may occur that a statistically small number of batteries fail prematurely. A possibly defective cell must never be replaced in a battery pack. The cells in a battery pack are all from the same manufacturing batch and thus have the same manufacturing tolerances. If new and old cells are mixed, the weaker (old) cells in the battery pack are more heavily loaded and further failures inevitable. For this reason, the entire battery pack is always replaced in Leica Geosystems service centres. The Li-Ion and camcorder type batteries are in sealed housings and the cells cannot be replaced
