Reflectorless 1000m Surveying Total Station With Dual Axis

Place of Origin China
Brand Name FOIF
Certification ISO
Model Number RTS112SR10
Minimum Order Quantity 1 Piece
Packaging Details Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 100 pieces per month
Product Details
Model RTS112SR10 Image Erect
Magnification 30X Single Prism 6000m
Reflectorless 1000m Accuracy 2''
Measuring Range 2.0 To 600m (800m Optional) Prism Accuracy 1.5mm+2ppm
Measuring Time Initial: 2.5sec Compensator Dual-axis
Setting Accuracy 1'' Plate Level Vial 30''/2mm
Circular Level Vial 8'/2mm Battery 3400mAh Li-ion Rechargeable
Output Voltage 7.4V DC Operation Time 12 Hours
Display Large LCD (240*128 Dots) CPU 32Bit
High Light

1000m Surveying Total Station

,

Reflectorless Surveying Total Station

,

7.4V DC Surveying Total Station

Leave a Message
Product Description

Total Station Reflectorless 1000m Surveying Instrument FOIF RTS112SR10 2'' Accuracy



Model: RTS112SR10



Specification:

Model RTS112SR10
Image Erect
Magnification 30X
Shortest Focus Distance 1.0m
Reading System Absolute encoder
Accuracy of RTS680 2’’
Prism 1.0-1.5s
Measuring Range 2.0 to 600m (800m optional)
Prism Accuracy 1.5mm+2ppm
Measuring Time Initial: 2.5sec
Compensator Dual-axis
Setting Accuracy 1’’
Plate Level Vial 30’’/2mm
Circular Level Vial 8’/2mm
Laser Plummet Accuracy 1mm/1.5m
Optical Plummet Accuracy 0.8mm/1.5m
Battery 3400mAh Li-ion Rechargeable
Output Voltage 7.4V DC
Operation Time 12 Hours
Charger FDJ6-LI(11v/24v)
Charging Time 4 Hours
Display Large LCD (240*128 dots)
CPU 32Bit
Memory 128M internal memory, support SD card
Keyboard Alphanumerical, both sides
Weight 15Kg
Dimension 185*220*360mm
Data Transfer Software FOIF Geomatics Office
Water and dust Protection IP55





Total Station

FOIF provides total station solutions to meet all your surveying needs. Measurements have never been so easy to perform as with the FOIF Total Station, which allows beginners and professionals to do the job quickly and efficiently.

Overview of RTS100 Series Total Station

1. Alphanumeric Keyboard

2. Reflectorless measuring distance: 600m(R600)

3. Bluetooth cable-free connection (Factory Optional)

4. 120000 points and 40 jobs can be saved.

5. Can be operated with a data collector, FOIF FieldGenius, or other third party software is available.



Overview:

A. EDM technology is improved, its powerful long reflectorless measuring distance can reach 600m/1000m

B. Power long reflectorless measuring distance 1000m

C. Bluetooth cable-free connection

D. 128Mb internal memory, 120000 points and 40 jobs can be saved

E. Can be operated with a data collector, FOIF FieldGenius or Carlson SurvCE

F. IP66 environmental protection

G. Alphanumeric keyboard



Features:

A. Dual Screen

B. SD card, Bluetooth

C. USB, RS232

D. Two Batteries with over 26 hours of working time

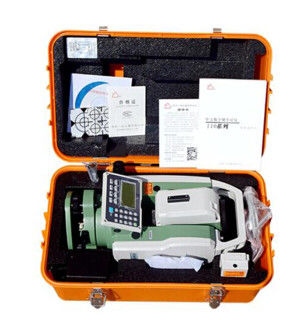

Package: Hard Carrying Case

Reflectorless 1000m Surveying Total Station With Dual Axis 0

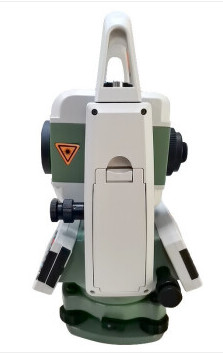

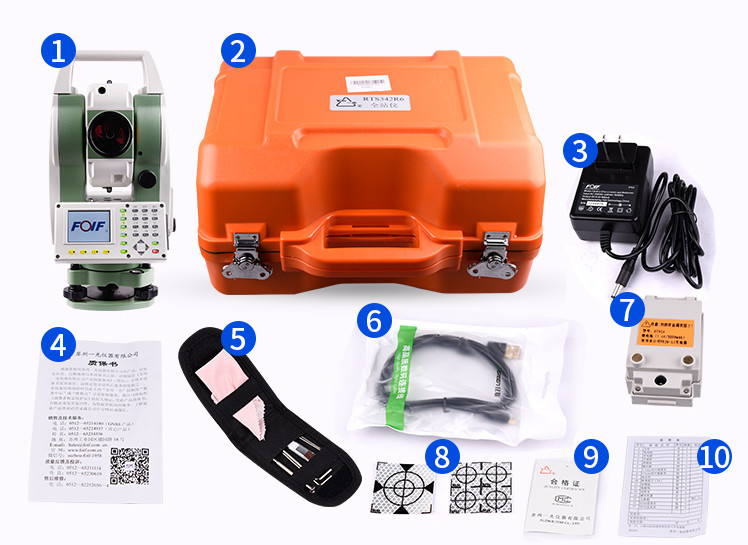

Detailed Pictures

Reflectorless 1000m Surveying Total Station With Dual Axis 1

Reflectorless 1000m Surveying Total Station With Dual Axis 2

Reflectorless 1000m Surveying Total Station With Dual Axis 3
