ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number ISBT2
Minimum Order Quantity 2pcs
Price 1000USD~1200USD
Packaging Details Aluminum Case and Carton Box
Delivery Time 3-5 work day
Payment Terms T/T
Supply Ability 500pcs per month
Product Details
Model ISBT2 Used For Trimble DINI Digital Level
Random Graduation Errors ≤ 2μm Length 2m
Net Weight 7.5Kg/Pc Gross Weight For 2pcs With Package 24Kg
Material Invar Tape Color Yellow
LED Light Strip Optional Graduation Barcoded
Invar Tape Specification 0.7×25mm Rod Body Straightness ≤4mm
Error Of Every Meter ≤0.04mm Package Aluminum Case
Catagory Level Accessory
Leave a Message
Product Description

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level



Model: ISBT2



Specification:

Model ISBT2
Used For Timble DINI digital level
Random Graduation Errors: ≤ 2μm
Length 2m
Net Weight 7.5Kg/Pc
Gross weight for 2pcs with Package 24Kg
Material Invar tape
Color Yellow
LED Light Strip Optional
Invar Tape Specification 0.7×25mm
Rod Body Straightness ≤4mm
Error of Every Meter ≤0.04mm
Package Aluminum Case



Introduction:

Invar Grade Rods are used in land surveying when first-order high-precision elevation leveling is to be performed. The Grade Rod, also known as Leveling Rods and Leveling Staff are made of Invar which is a nickel–iron alloy notable for its uniquely low coefficient of thermal expansion. The name "Invar" comes from the word invariable, which refers to its relative lack of expansion or contraction with temperature changes which directly lends itself to making the most reliable rod for measuring elevation changes in land.



Invar staff with Barcode is used to accurately determine differences in elevation. It is an essential accessory to digital levels and allows them to measure the height and the distance to the leveling rod at the press of a button.



With a rigid aluminum body, the invar staff features and invar tape tensioned by soft spring to ensure that it doesn’t expand or contract with temperature changes. It has a length of two meters or three meters and two attached handles for stable positioning. The barcode staff also has two circular bubbles for superb leveling precision in various industrial applications.



To electronically read the staff, make sure the invar staff with barcode is facing the digital auto level. The height of the staff where the level beam crosses the leveling rod will be shown on a digital display. This process greatly eliminates human error and increases accuracy.



Features:

  1. Superior graduation accuracy and high quality image of stripes.
  2. Body of the Invar staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
  3. Invar tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
  4. Foot plate of chrome-alloy; hardened, smooth and ground.
  5. Equipped with two circular bubbles and fold-away handles. Handles zinced and powder-coated.
  6. Staff Length is customizable according to customers’ needs.
  7. LED strip lights is optional. It can be used in mines, tunnels, night-time construction sites. Equipped with two pieces of power bank.



Item Details:

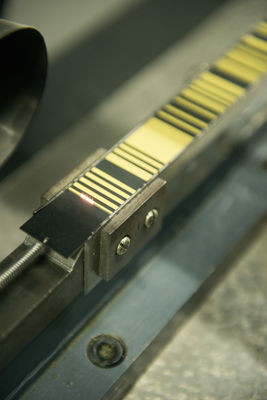

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 0

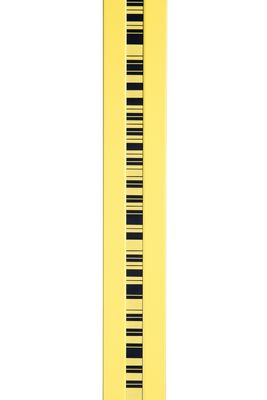

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 1

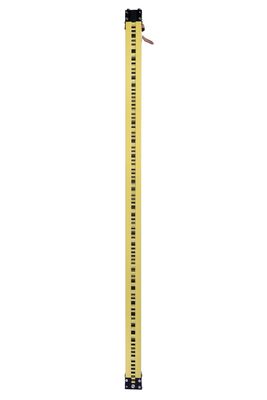

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 2

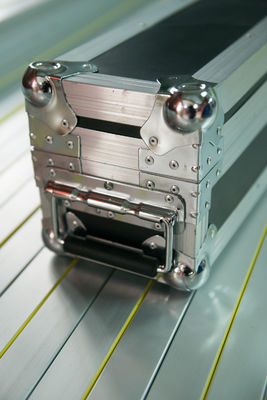

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 3

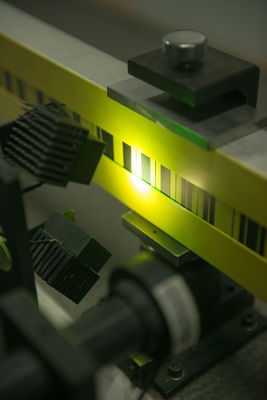

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 4

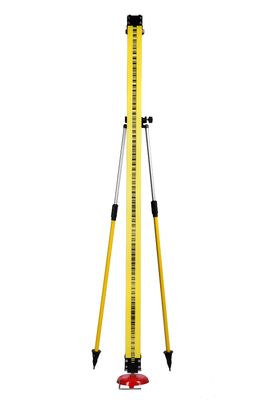

ISBT2 Trimble Digital Level Accessory Barcoded Invar Rod Staff 2m for DINI Series Level 5
