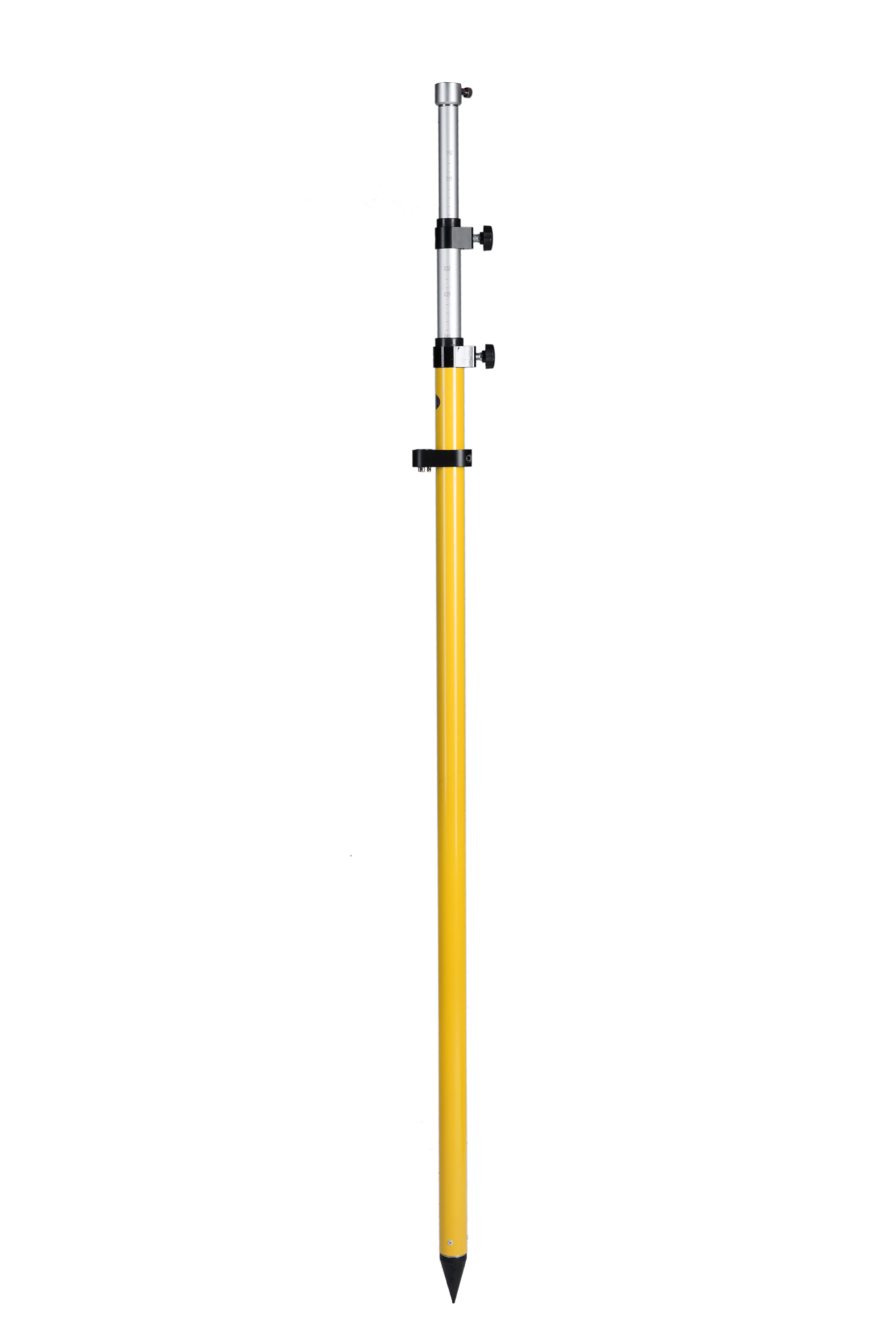

Aluminum 1cm Prism Pole Level 3.1m Range Pole Surveying

Place of Origin China
Brand Name Leosurvey
Certification ISO
Model Number PL3
Minimum Order Quantity 10 Pieces
Price 20USD~25USD
Packaging Details Box and Carton
Delivery Time 10~20 Work Day
Payment Terms T/T
Supply Ability 1000 pieces per month
Product Details
Model PL3 Color Yellow
Material Aluminum Section 3
Type Twist Lock Contraction Length 1420mm
Extension Length 3100mm Net Weight 1.63Kg
Pole Diameter 29mm Tube Thickness 1.5mm
Graduation 1cm Thread 5/8''*11
Bubble 18’ Fits Prism (non-Leica Type)
High Light

3.1m prism pole level

,

Aluminum 1cm prism pole level

,

Aluminum 1cm range pole surveying

Leave a Message
Product Description

3.1m Prism Pole Land Surveying with Bubble Level for Total Station Heavy Duty



Model: PL3



Specifications:

Model PL3
Color Yellow
Material Aluminum
Section 3
Type Twist Lock
Contraction Length 1420mm
Extension Length 3100mm
Net Weight 1.63Kg
Pole Diameter 29mm
Tube Thickness 1.5mm
Graduation 1cm
Package 12Pcs/Carton
Thread 5/8’’*11
Bubble 18’
Fits Prism (non-Leica type)



Overview:

A. Made of high quality aluminium tubes with anodized surface.

B. The first section is hollow and powder coated.

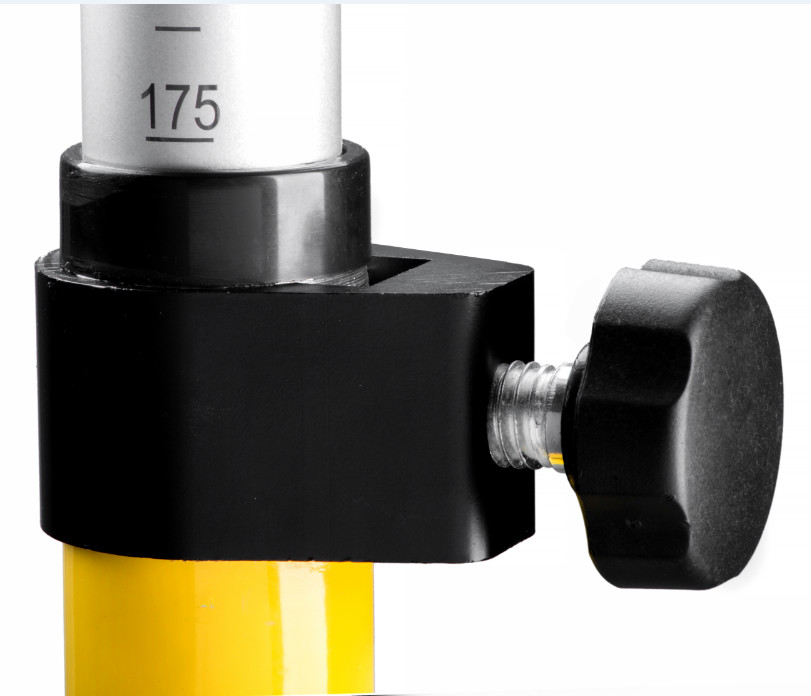

C. With quick release clamp, the prism pole can be adjusted quickly and easily.

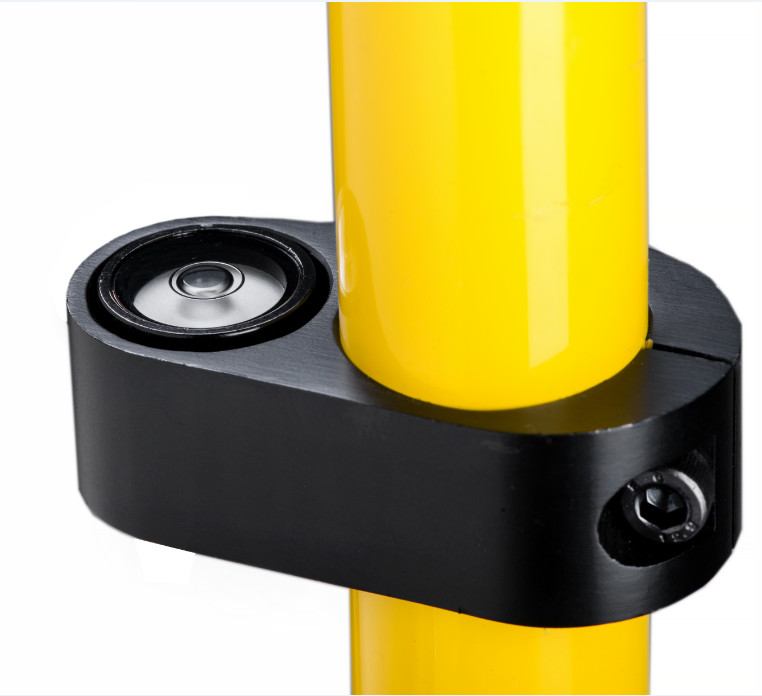

D. Equipped with circular bubble.

E. High quality standard material is being used. Leosurvey uses 1.5mm thickness aluminum tube and others may use 0.8~1.2mm type tube.





Features:

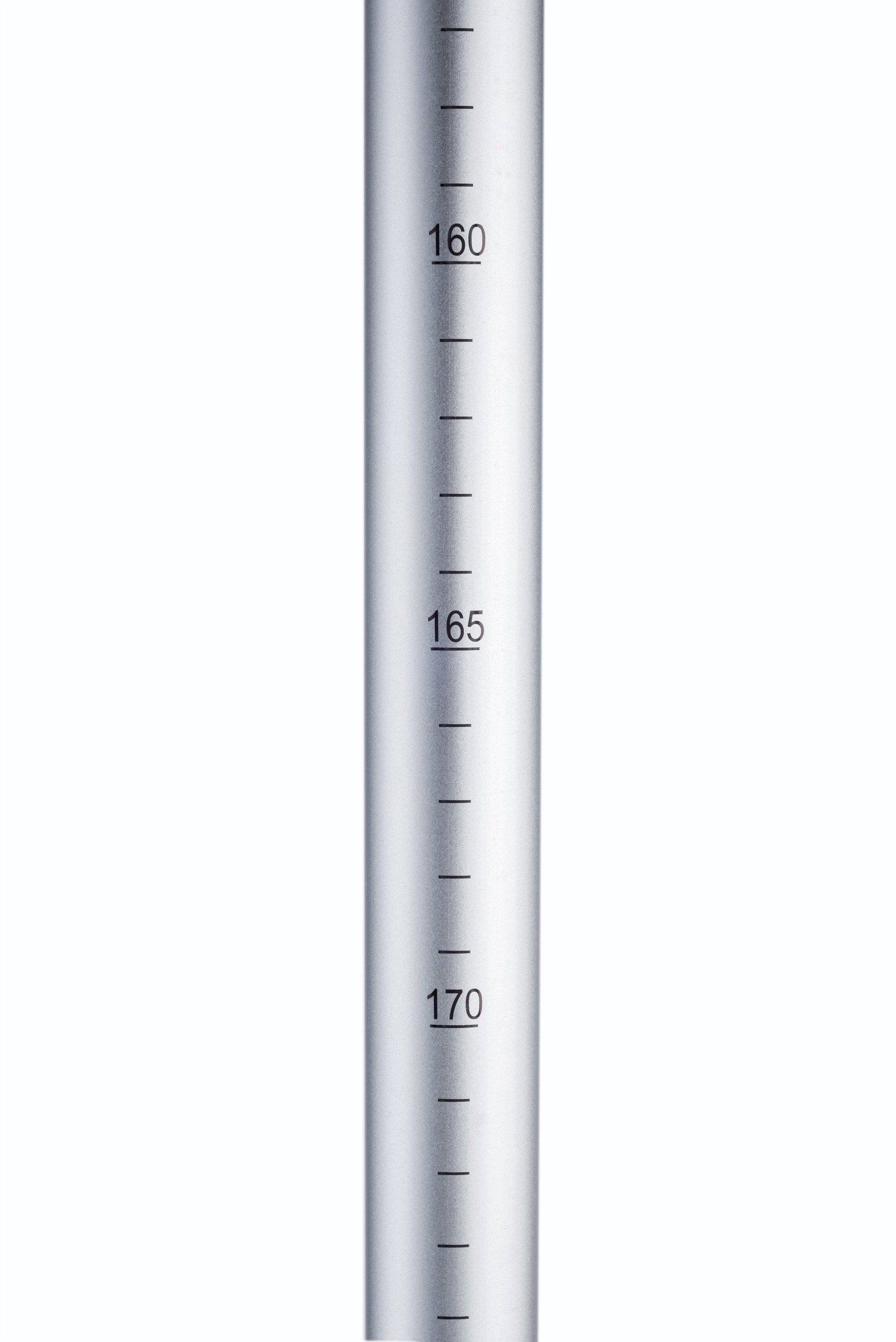

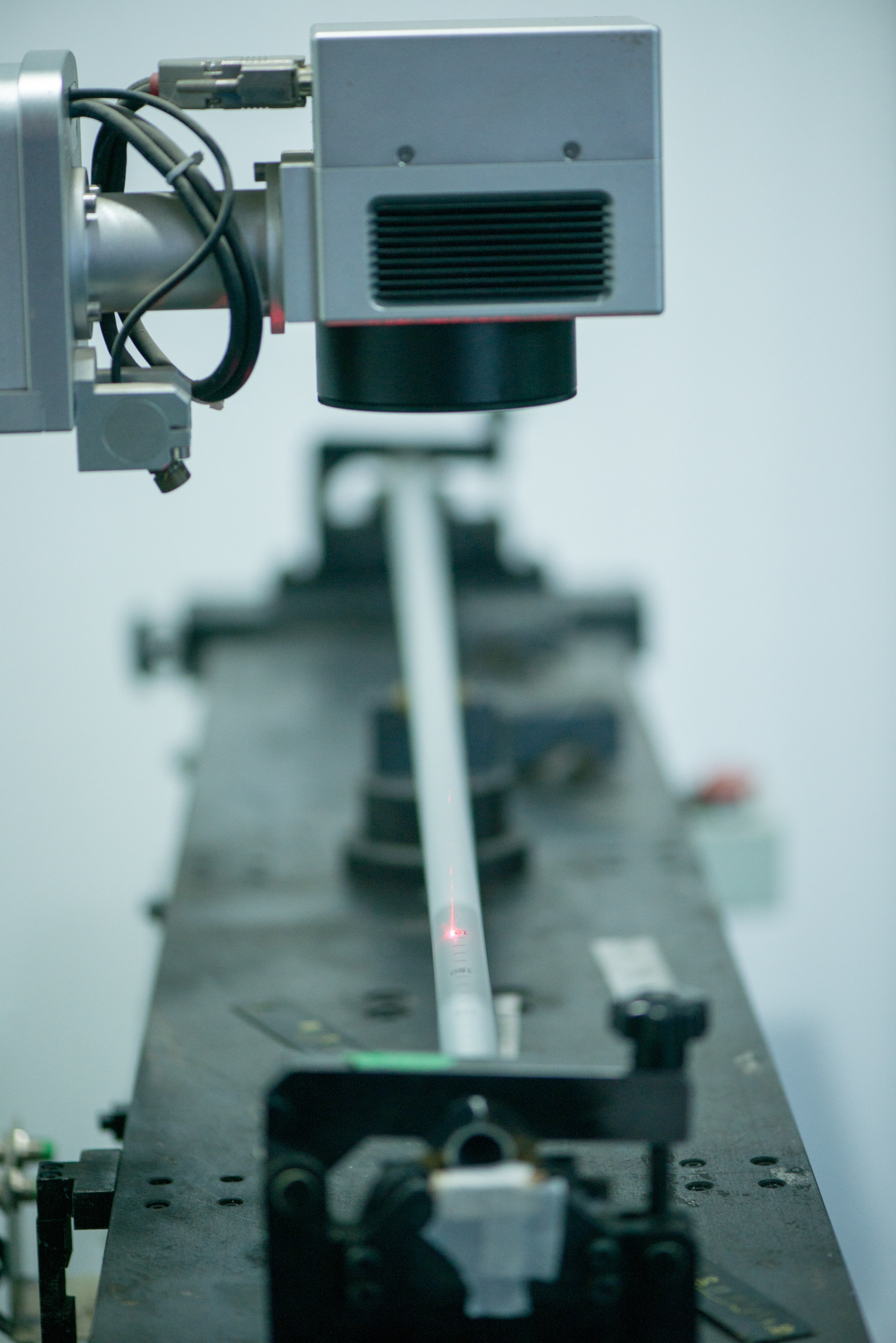

  1. The graduation marking is engraved by laser beam not printed or knife carved. So the marking is very clear and non-fading. Most importantly, the high accuracy can be guaranteed.
  2. Outer tubes adopts powder coating spraying technology. This technology ensures the surface wearable, flat and beautiful.
  3. Well-finished appearance without burr/speculation; others are rough. We pay more attention on craftsmanship, so it takes longer time during every procedure.
  4. Heavy duty prism pole will be more durable and steady.
  5. The pole can be attached with GNSS receiver with attach with GNSS adaptor.

Prism poles are a common tool for land surveying, because they can be used to measure elevation and grade through the use of a sight level. This can include any of the following:

· Automatic levels

· Transit levels

· Laser levels



They’re necessary if you want to get the accuracy you need for today’s data collection methods and technology. They also include alternating bands of red and white, which can be used for distance measuring and for the accurate collection of data. You also have the option of attaching a survey prism making marker that can be used with a total station, but you can also find GPS poles and range poles that are listed in other categories on our site.



Package:

1pc/nylon bag; 12pcs/box





Item Details:
